Garmin part number: 010-02509-00
You have put the work into the rig. Give the next expedition a navigation setup to match. Garmin Tread XL Overland Edition brings a big, glove-friendly 10-inch display, off-road trail mapping and vehicle-profile street routing into one rugged navigator. Built-in inReach technology adds satellite messaging, location sharing and interactive SOS when activated with a compatible subscription, so you can plan beyond the pavement with the right tools on the dash.
Why it belongs in your rig
- Ultrabright 10-inch class touchscreen with portrait/landscape viewing
- Topographic maps, trail guidance, land boundaries and satellite imagery
- Built-in inReach satellite capability; active subscription required
- Locking magnet-assisted mount, suction mount and vehicle power cable
Built for the drive
Off-Road Ruggedness
IP67 dust/water protection and rugged construction suit the navigator to all-terrain travel rather than a climate-controlled desk.

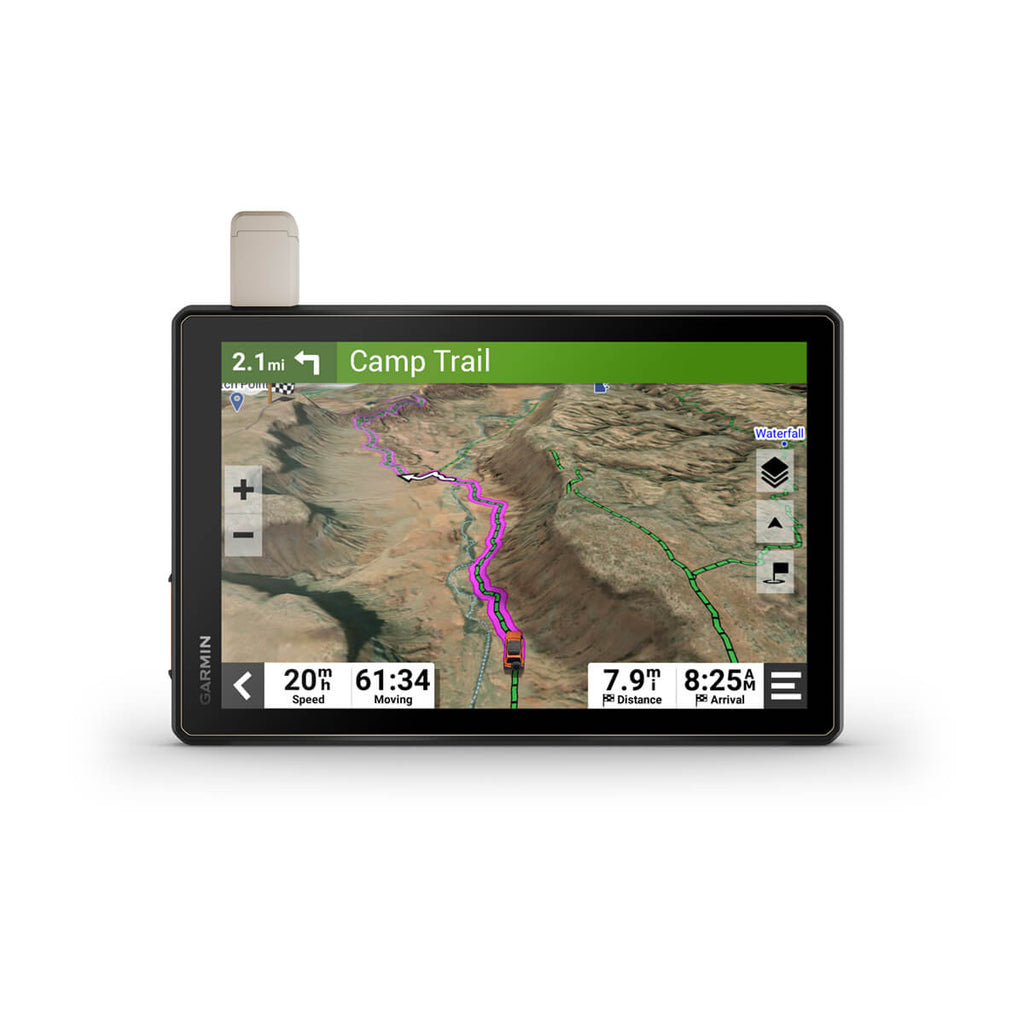

High-Visibility Display
A glove-friendly 10-inch class touchscreen gives you a large map view in bright daylight or after dark. Choose portrait or landscape orientation for the installation.

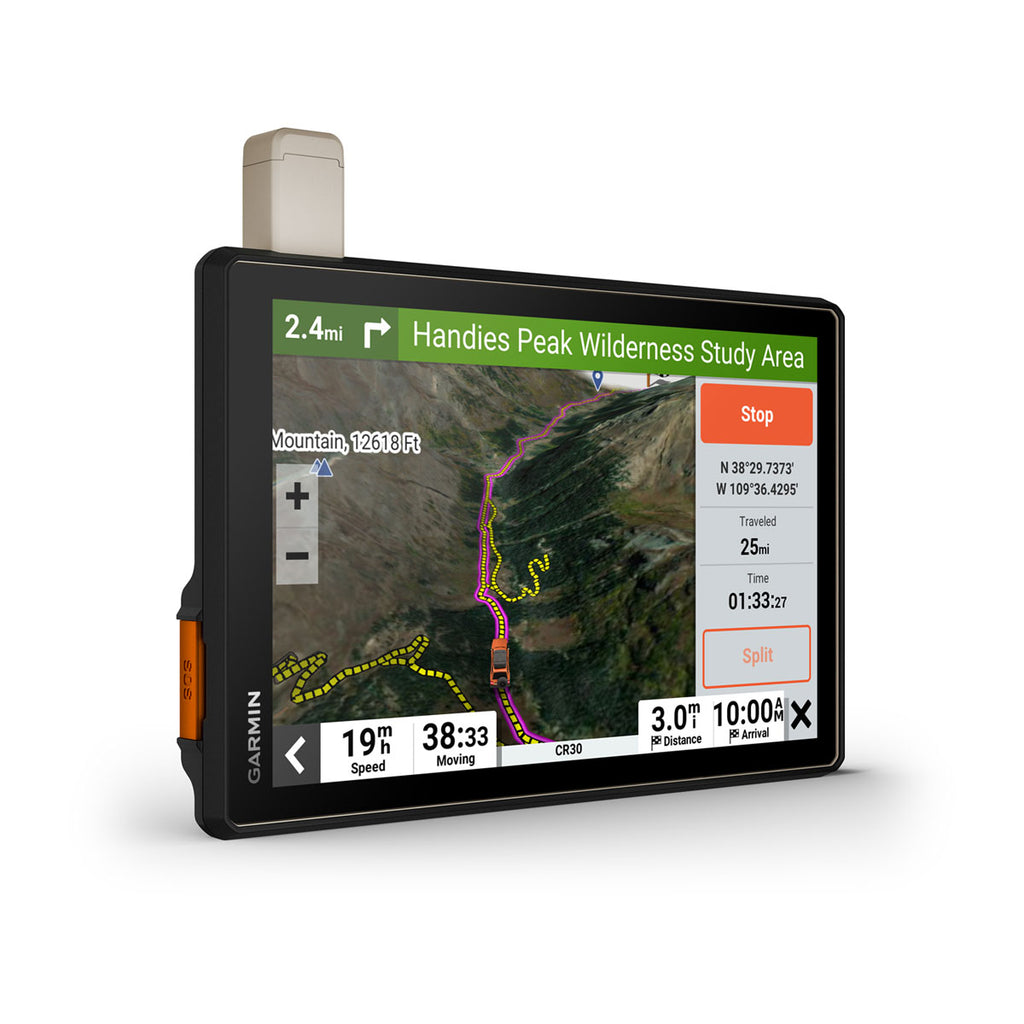

Trail Navigation
Use supported Adventure Roads and Trails, OpenStreetMap and USFS Motor Vehicle Use Map content for turn-by-turn off-road guidance. Available difficulty ratings add route context; maps remain a supplement to signs, permitted access and actual conditions.

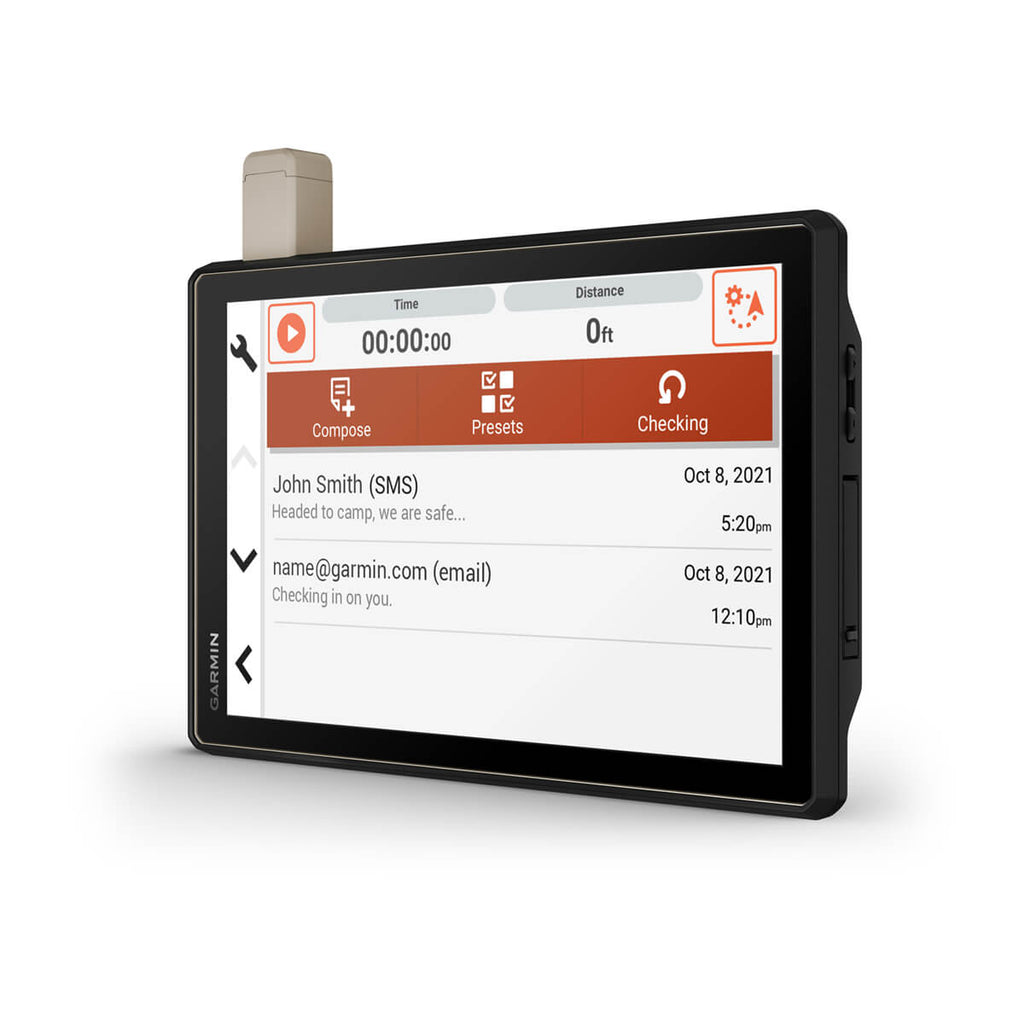

Built-In inReach Technology
Built-in inReach satellite hardware supports two-way text messages, location sharing and interactive SOS once you activate a compatible satellite subscription.

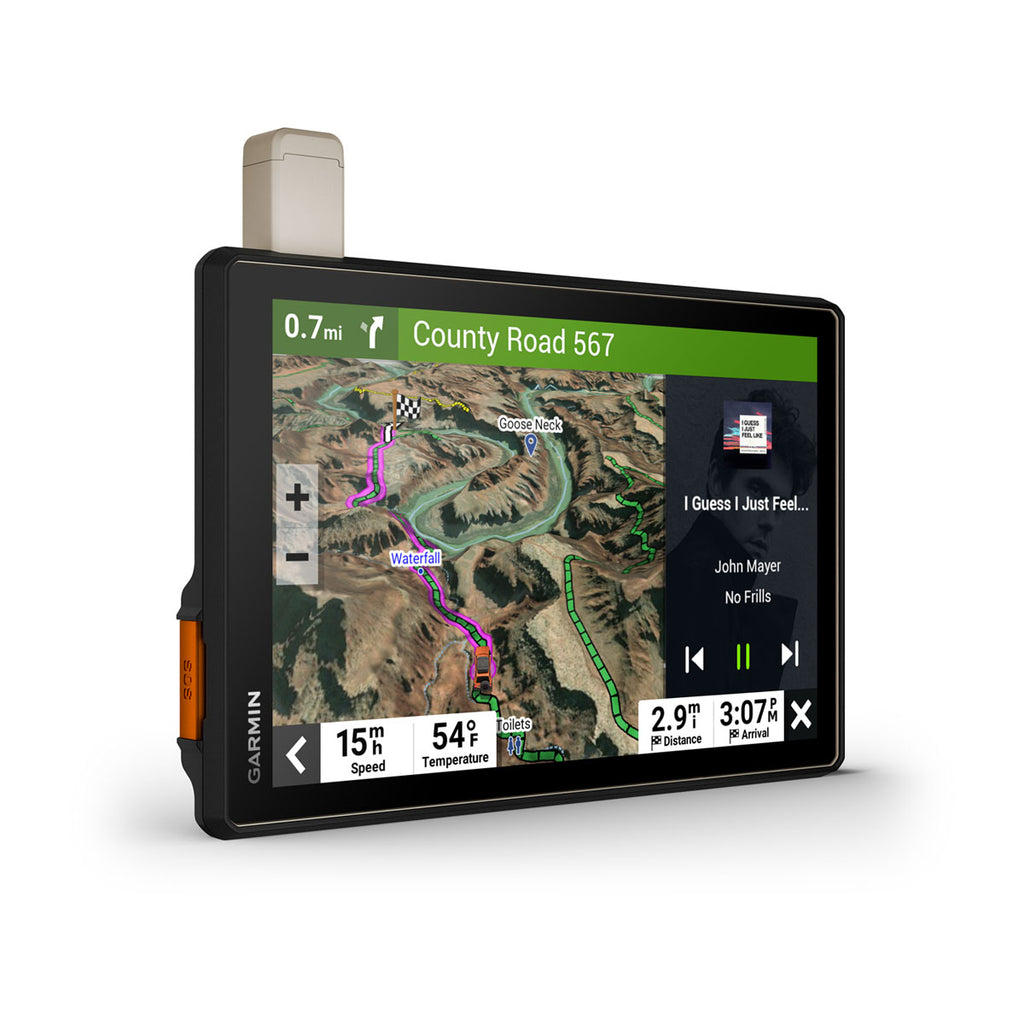

Maps On And Off-Road
Preloaded North and South American topographic maps include 3D terrain. Detailed North American street mapping adds vehicle-size/weight routing where supported, helping connect the highway section with the dirt section.

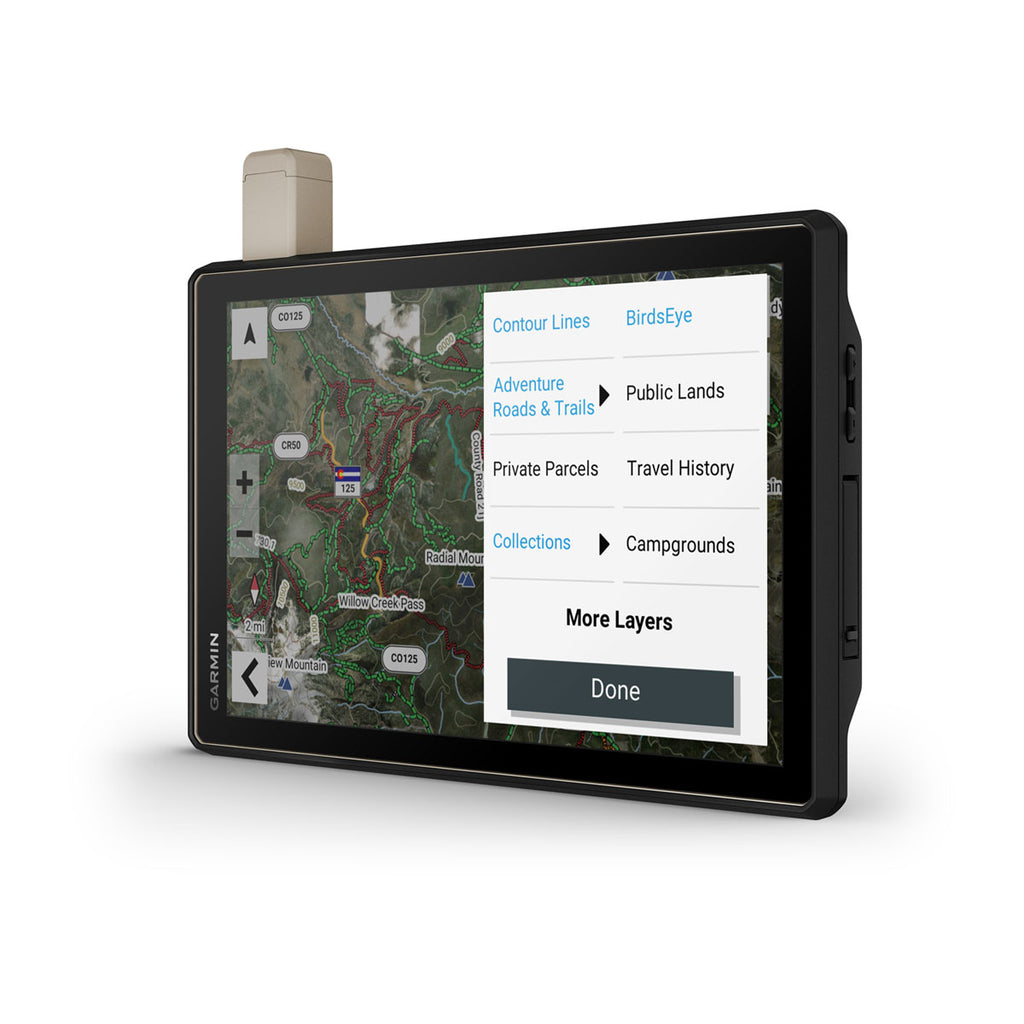

Know Your Boundaries
See mapped public lands including national forests, BLM areas and wilderness. Private-parcel information and landowner details are shown for supported parcels larger than four acres; always confirm permission and access.
Satellite Imagery
Download detailed overhead imagery for a different view of the terrain. Wi-Fi downloads let you prepare the view on the device before you head out.
Trail Ratings
Supported U.S. off-road riding areas include trail difficulty ratings to help you research the route. Availability varies; assess actual conditions before committing.
Snowmobile Trails
Supported U.S. areas and Canadian provinces include snowmobile routes and useful stops such as fuel, food and warming shelters.
Outdoor Maps+
Add a paid Outdoor Maps+ subscription for Garmin’s supported premium map layers and ongoing content access. It is an optional service separate from the navigator purchase.
Points Of Interest
Preloaded iOverlander points and Ultimate Public Campgrounds let you locate established and dispersed campsites without depending on a live cell signal for the directory.
ABC Sensors
Built-in altitude, barometric and compass sensors add useful information when the terrain gets demanding. Pitch and roll gauges are also included in the navigator’s feature set.

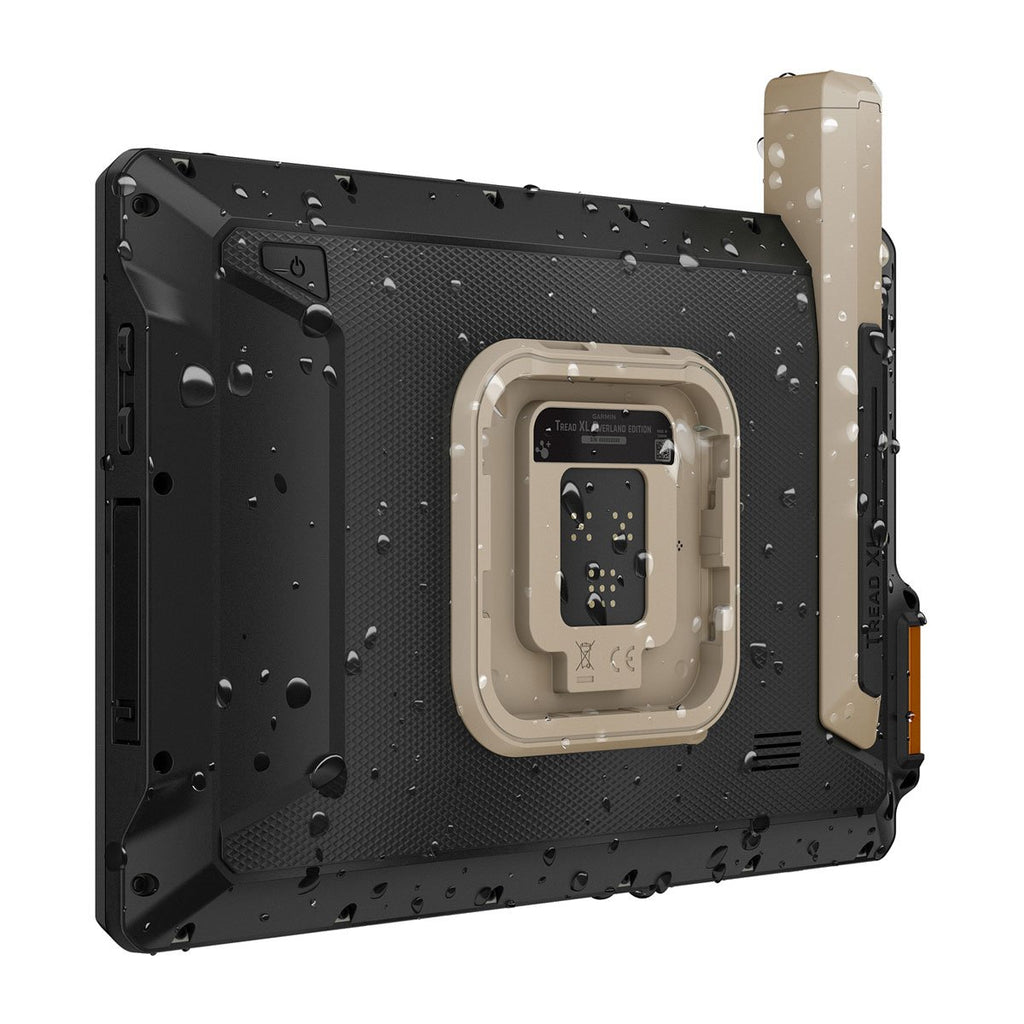

Secure Mount
The locking magnet-assisted mounting system helps hold the navigator in place in the vehicle while keeping the device accessible.
Group Ride Mobile
When everyone uses the Tread app’s Group Ride Mobile feature, follow your friends from a compatible smartphone or Tread navigator.
Easy Route Planner
Build routes in the Tread app using the maps and preferences you use on the navigator. Import and export GPX files to exchange plans with the rest of the group.
Easily Sync Your Devices
Use the Tread app to keep routes, tracks, waypoints and collections together across compatible devices. GPX import and sharing make exchanging plans easier.
Live Weather
Pair a compatible smartphone and use the Tread app for live weather information, storm alerts and animated radar when the needed connection is available.
Control Your Accessories
Add a compatible Garmin PowerSwitch digital switch box, sold separately, to manage supported 12-volt accessories such as light bars and differential locks from the screen.
Group Ride Radio
Add a compatible Group Ride Radio, sold separately, for communication and tracking with other suitably equipped riders.
Track Your Dog Pack
A compatible Garmin GPS dog-tracking system can place dog-location markers on the navigator’s map when within tracking range. The tracking hardware is sold separately.
Expand Your Range
Optional external GPS and inReach antennas offer additional installation choices. Each has a low-profile, water-resistant housing and is sold separately.
See the setup and technology
Installation and what to plan for
This is the standalone 010-02509-00 Overland package. Fit the included suction-cup and locking magnet-assisted mounting hardware and connect the vehicle power lead. Built-in storage is 64 GB; optional microSD expansion supports up to 256 GB. Wi-Fi handles map/software updates and satellite-image downloads. Tread app features require a compatible smartphone and any necessary data connection.
Activate a compatible satellite subscription for inReach messaging, location sharing and interactive SOS. Satellite-device restrictions apply in some jurisdictions. Outdoor Maps+ is an additional paid subscription. PowerSwitch, Group Ride Radio, dog-tracking equipment, BC 50 camera and external antennas are optional accessories. Routing coverage varies; a vehicle profile cannot guarantee clearance or road suitability. Follow signs, access rules and current trail conditions.
Compatible Garmin devices
Garmin lists the following compatible devices for this model. Pairing functions depend on the device and setup. Additional devices, accessories and subscriptions are purchased separately unless named in the package contents below.
- Alpha® 10
- Alpha® 100
- Alpha® 200
- Alpha® 200i
- Alpha® 300
- Alpha® 300i
- Astro® 320
- Astro® 430
- Astro® 900
- Garmin PowerSwitch™
- PRO 550 Plus
- Tread™ Audio System
In the box
- Tread XL - Overland Edition
- Suction cup mount
- Vehicle power cable
- Locking magnet-assisted mount
- USB-C cable
- Documentation
Technical specifications
General
| Dimension | 9.9"W x 7.8"H x 1.2"D (25.2 x 19.9 x 3.1 cm) |
|---|---|
| Weight | 32.8 oz (930 g) |
| Water rating | IPX7 |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm) |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | Yes |
| Magnetic Mount | locking magnet-assisted mount |
| 1.5-inch ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight |
Maps & Memory
| Data cards | microSD™ card (not included) |
|---|---|
| Preloaded street maps | Yes |
| High-definition 3D terrain | Yes |
| 3D Terrain | Yes |
| Internal storage | 64 GB |
| Ability to add maps | Yes |
| External memory storage | yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | yes (BirdsEye) |
| BirdsEye Direct satellite imagery | Yes |
| TOPO map support | Yes |
Sensors
| GPS | Yes |
|---|---|
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| 10 Hz multi-GNSS positioning | Yes |
Outdoor Recreation
| Preloaded topographical maps | Yes |
|---|---|
| Preloaded US public land boundaries | Yes |
| Preloaded private land parcel maps | yes (parcels greater than 4 acres) |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
Mapping & Navigation
| Point-to-point navigation | Yes |
|---|
Camera Features
| Backup camera compatible | yes (BC™ 50) |
|---|
Navigation Features
| Garmin Real Directions™ landmark guidance | Yes |
|---|---|
| TripAdvisor® traveler ratings | Yes |
| Route shaping through preferred cities/streets | Yes |
| Includes traffic | yes (with Garmin Tread app) |
| Lane assist with junction view (displays junction signs) | Yes |
| Bluetooth® pairing | yes (works with BLUETOOTH-compatible helmet, headset or smartphone; BLE capable) |
| Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe) | Yes |
Advanced Features
| Smart notifications via app | Yes |
|---|---|
| Wi-Fi® map and software updates | Yes |
| Access to live services via app (traffic, weather, etc.) | Yes |
Motorcycle Features
| Control music and media from smartphone or MP3 player | Yes |
|---|---|
| Sunlight readable and weather resistant | Yes |
| Garmin Adventurous Routing™ | Yes |
| Motorcycle or powersports specific points of interest for cycle repair services, dealers and more | Yes |
| Elevation profile | Yes |
| Round trip routing | Yes |
| Service History Log | Yes |
| Custom map support | Yes |
RV Features
| Specialized routing for the size and weight of your vehicle | Yes |
|---|---|
| RV Parks & Services directory | Yes |
| Road elevations | Yes |
| Speed limit changes | Yes |
| Easy Route Planner with GPX file sharing | Yes |
Adventure Features
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | Yes |
|---|---|
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Compatible with Group Ride Radio | Yes |
| Compatible with external GPS antenna with mount | Yes |
| Compatible with external inReach® satellite antenna | Yes |
| Group Ride Mobile | yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| iOverlander™ points of interest | Yes |
| Ultimate Public Campgrounds | Yes |
| Pitch and Roll gauges | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Glove-friendly touchscreen | Yes |
Outdoor Applications
| Dog tracking | yes (when paired to compatible dog track system) |
|---|
Watch Garmin’s product videos
Build the right setup with PMB Performance
Choose Garmin Tread XL - Overland Edition for your next adventure. Match the part number, review the installation and service requirements above, and contact PMB Performance if you need help choosing the right accessories for your vehicle.
Build your Garmin setup with PMB
Explore compatible devices, accessories and complementary equipment below. These items are sold separately; review the installation and compatibility requirements for your setup.
- BC 50 (010-02609-00) — Compatible BC 50 wireless backup camera; vehicle wiring/installation required
- Garmin BC 50 with Night Vision Backup Camera | 010-02610-00 (010-02610-00) — Compatible BC 50 Night Vision camera; switched 12/24 V wiring and installation required
- Garmin PowerSwitch 6-Circuit Digital Switch Box | 010-02466-00 (010-02466-00) — Compatible control for supported 12 V accessories; separate wiring required; maximum 30 A per output and 100 A combined
