Garmin part number: 010-02510-00
Race prep means knowing the course, keeping your notes organized and giving the crew useful information. Garmin Tread XL Baja Race Edition brings those jobs onto a rugged 10-inch screen with a push-button dock, GPX course tools and prerunning pacenotes. The included external GPS and inReach antennas round out the race package, with satellite team messaging and tracking available through an active inReach Flex Team subscription.
Why it belongs in your rig
- 10-inch ultrabright touchscreen plus included push-button Baja dock
- GPX course detail, virtual checkpoints and custom prerunning pacenotes
- Split/lap recording and built-in inReach team communication capability
- Bail mount, high-current power cable and both external antennas included
Built for the drive

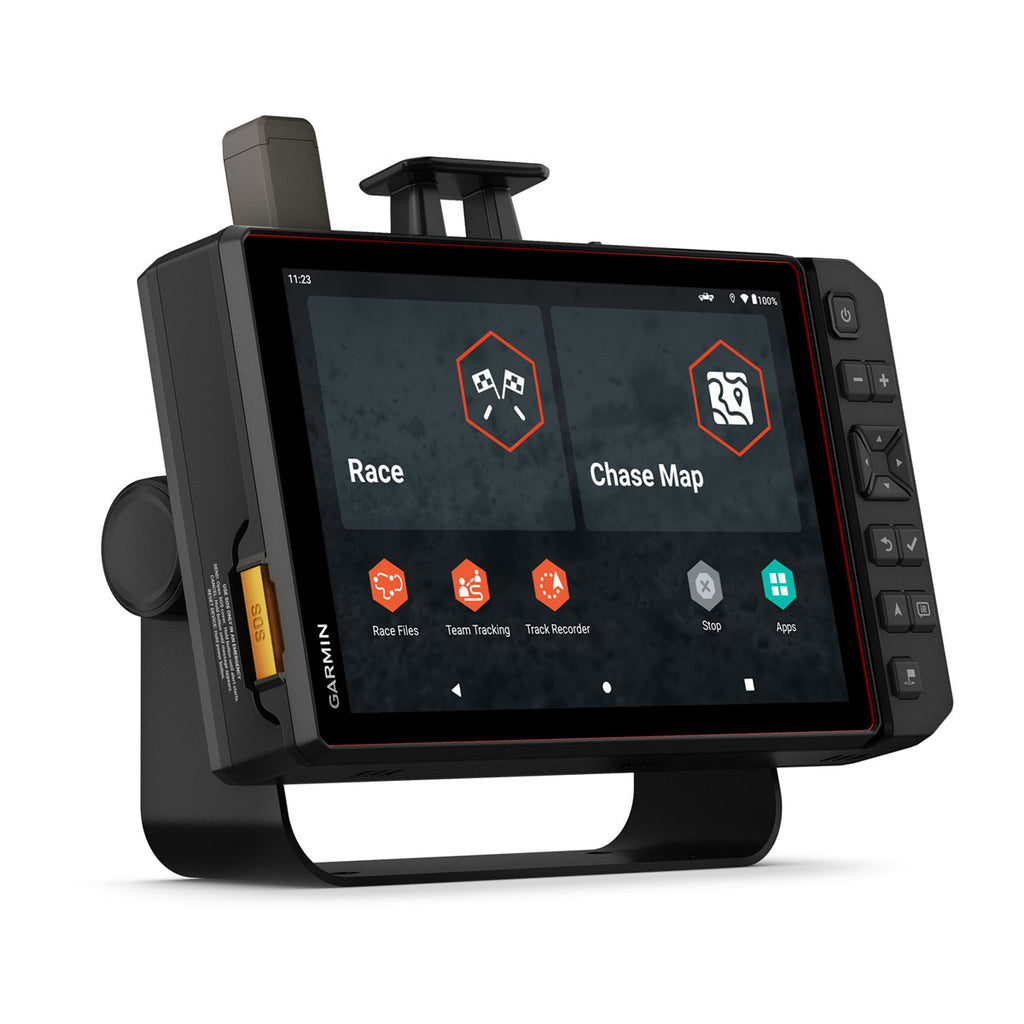

Team Tracking
Built-in inReach technology lets suitably equipped race and support vehicles exchange messages and position updates over satellite coverage. An active inReach Flex Team subscription is required for the team service.
Touch Display And Buttons

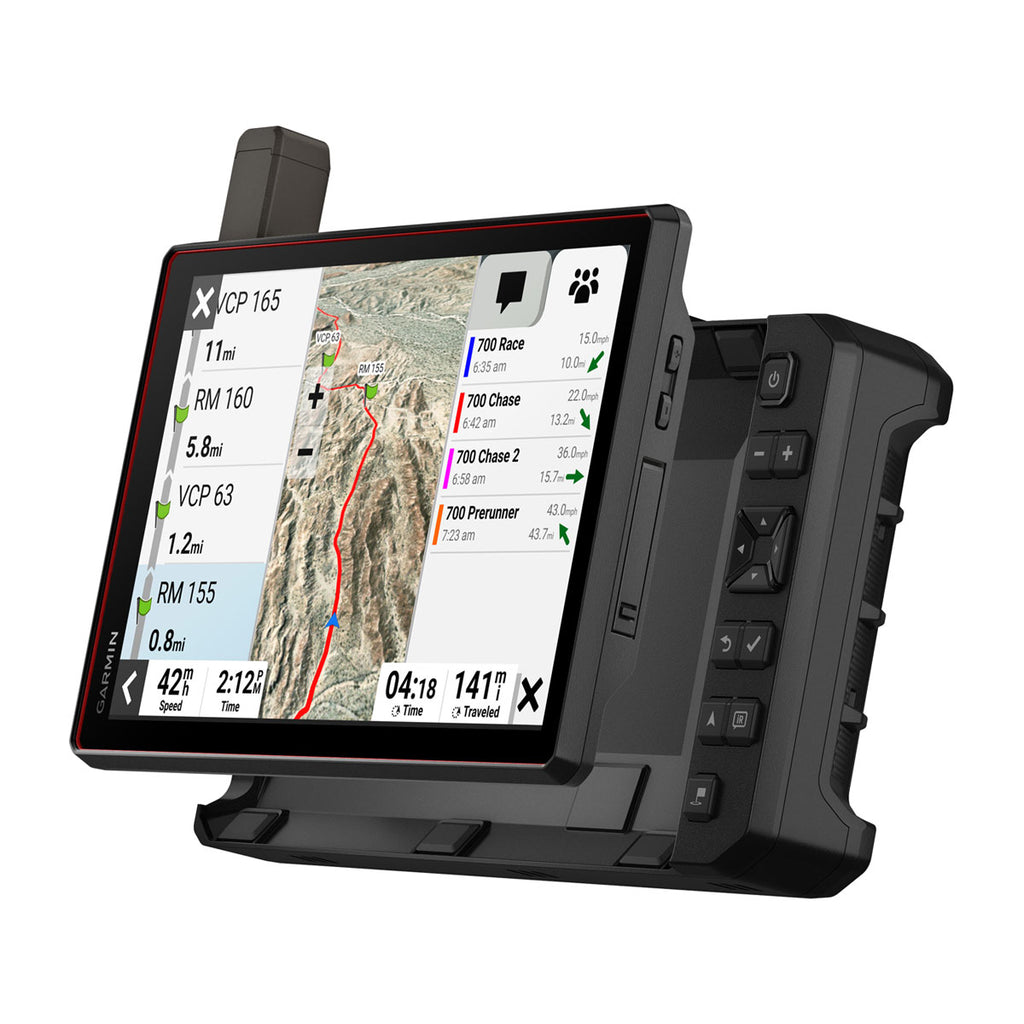

Read the course on an ultrabright, glove-friendly 10-inch touchscreen. The included Baja dock adds physical push buttons for another way to interact with the navigator.
Know The Course

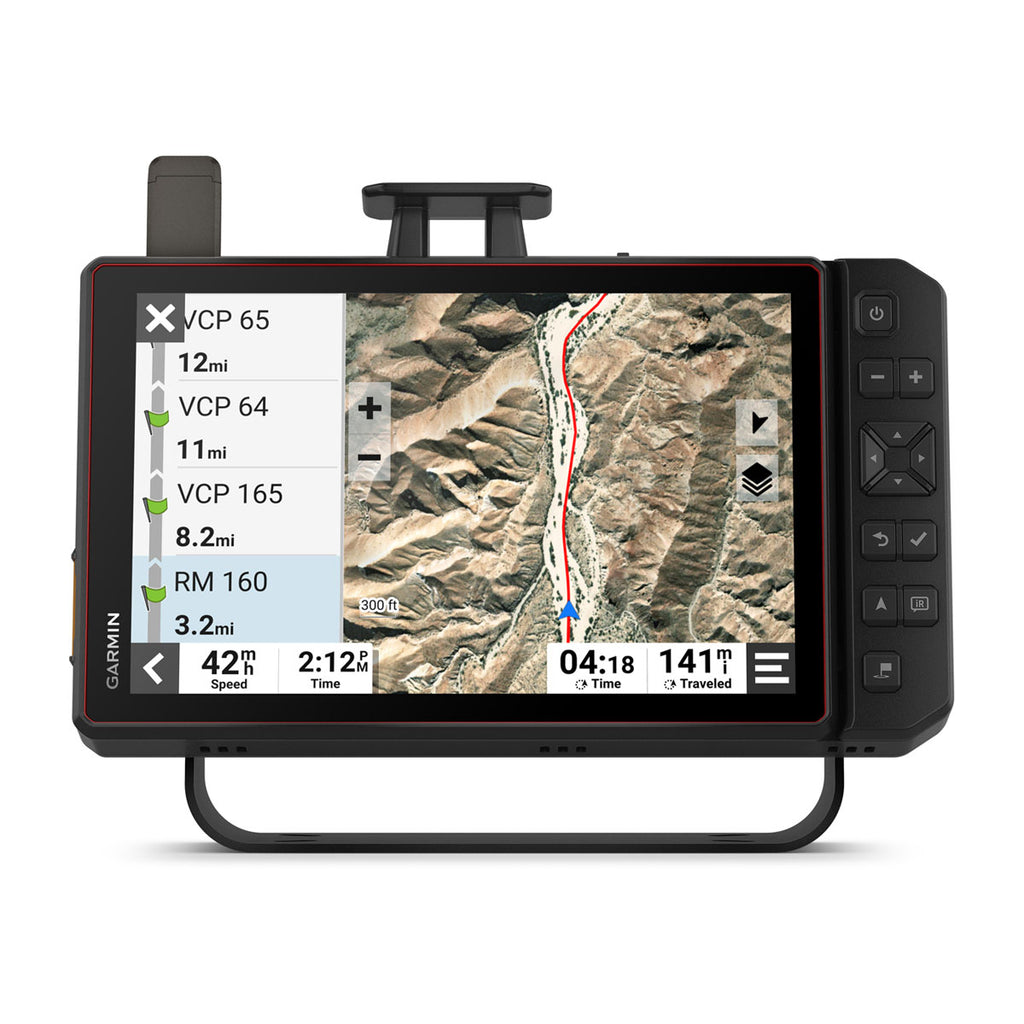

Load a GPX course before the event to display the course line, start/finish, virtual checkpoints and race-mile markers. Chase course data can also show pit locations.
Prerunning Tools

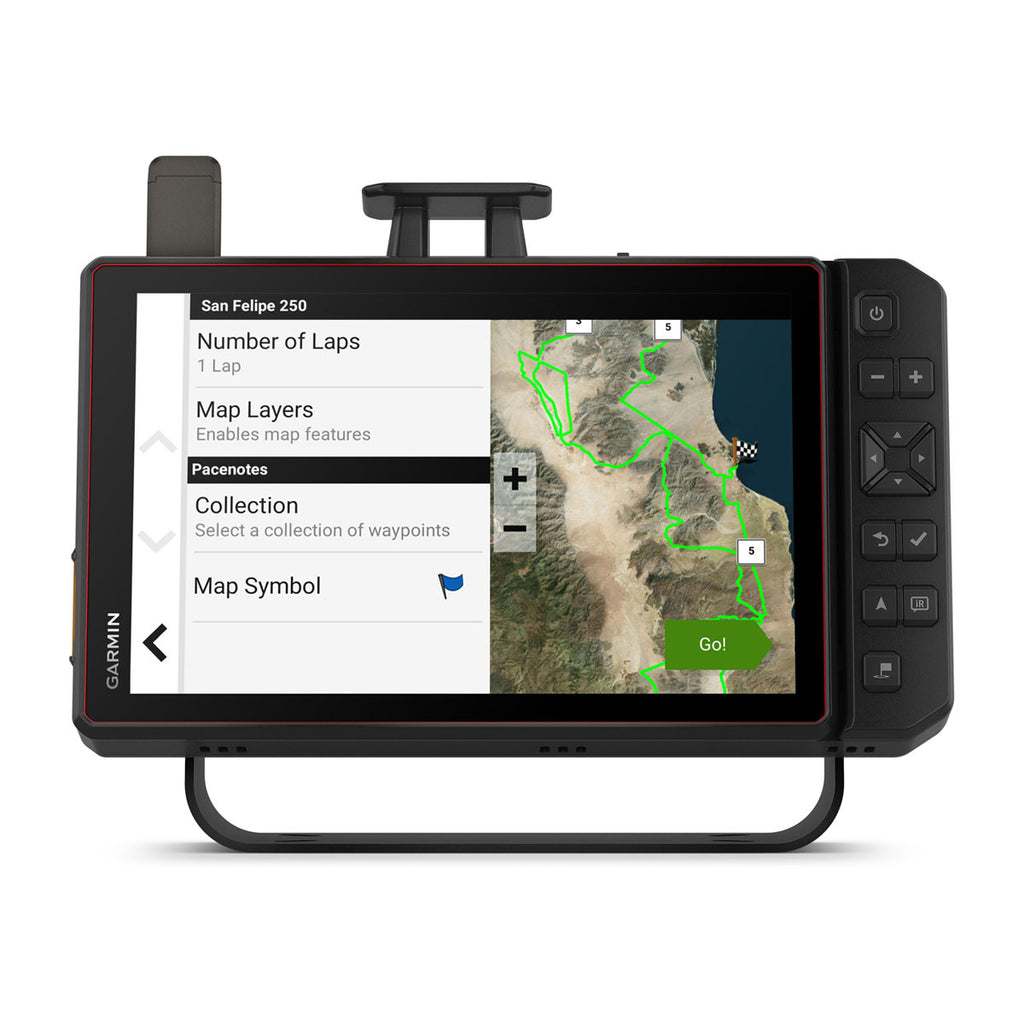

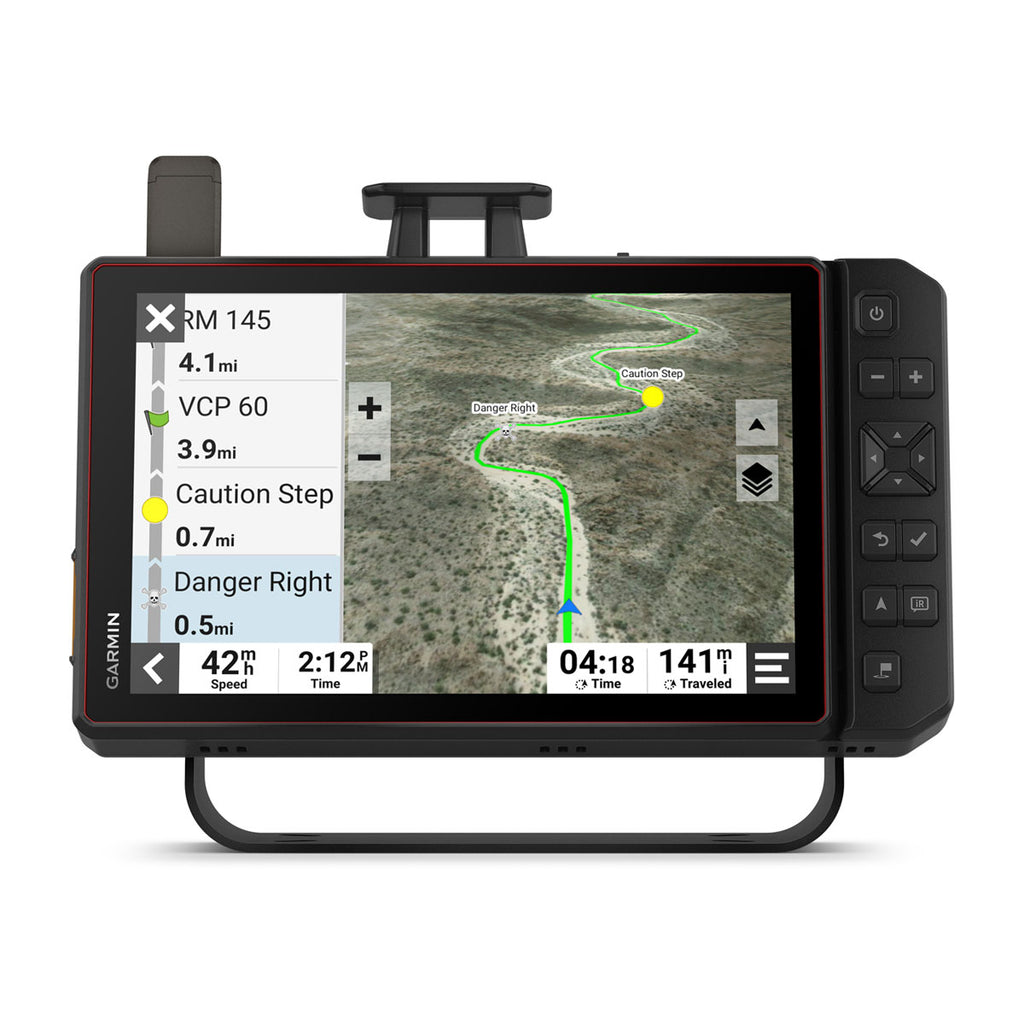

Build custom pacenotes while prerunning to mark turns, drop-offs and hazards. Keep the notes organized around the course and its virtual checkpoints.
Improve Your Race Performance
Use the track recorder to save splits and laps, giving the team recorded reference points when reviewing a run.
High-Performance GPS
The package includes both an external GPS antenna and an external inReach antenna, each in a low-profile, water-resistant housing with multiple installation possibilities.
Control Your Accessories
Pair a separately sold Garmin PowerSwitch digital switch box to control supported 12-volt equipment such as rock lights, fans and air pumps from the navigator.
Secure Mount

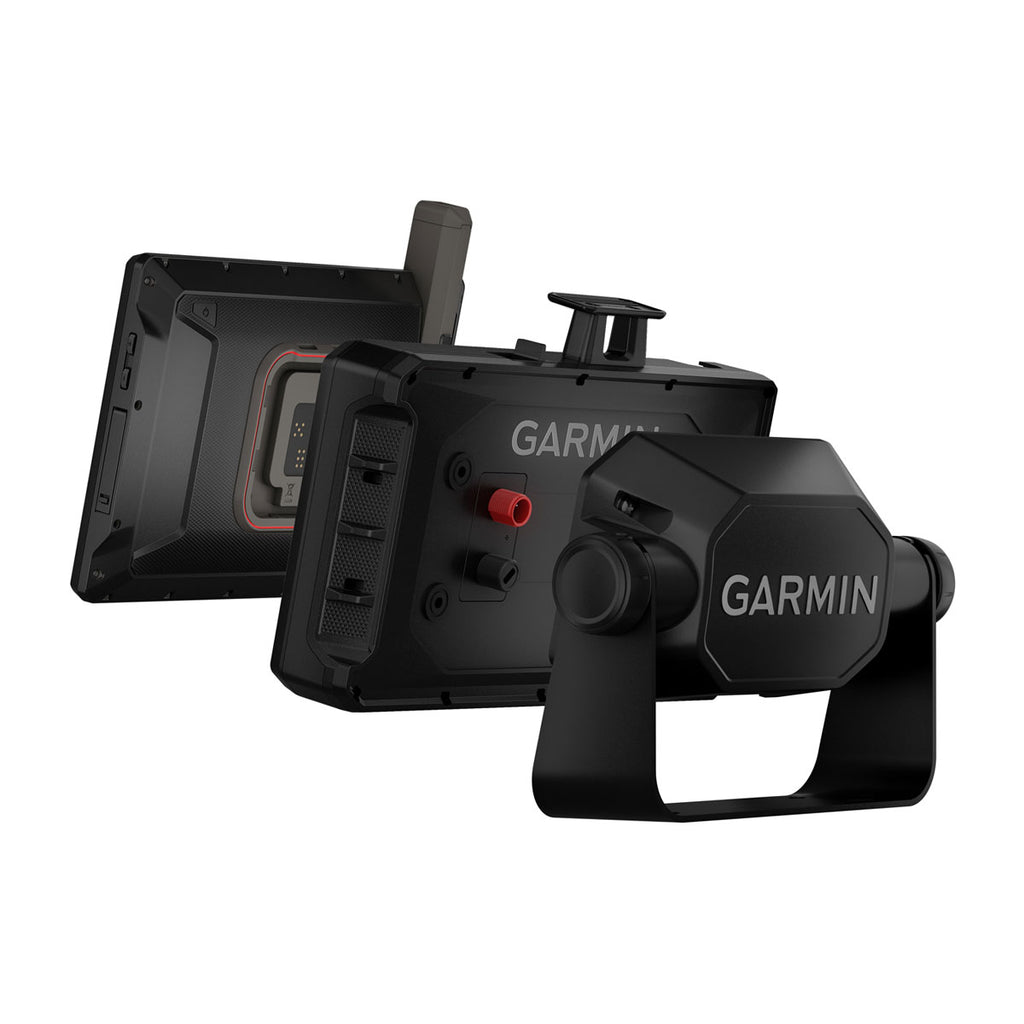

Use the included bail mount or plan an appropriate dashboard panel installation. The Race package includes the Baja dock and its physical controls.
Off-Road Ruggedness
IP67 dust/water protection and construction intended for demanding desert travel make the navigator suited to the race-support environment.
Team Tracking Plans
An active inReach Flex Team plan unlocks the supported team service, including team tracking, text messaging and SOS. Review Garmin’s current plan details before activation.
Satellite Imagery
High-resolution overhead imagery provides another view of the terrain. Satellite imagery for the North Baja Peninsula is preloaded, and additional supported imagery can be downloaded.
Outdoor Maps+
Add a paid Outdoor Maps+ subscription for Garmin’s supported premium map layers and ongoing content access. It is an optional service separate from the navigator purchase.
See the setup and technology
Installation and what to plan for

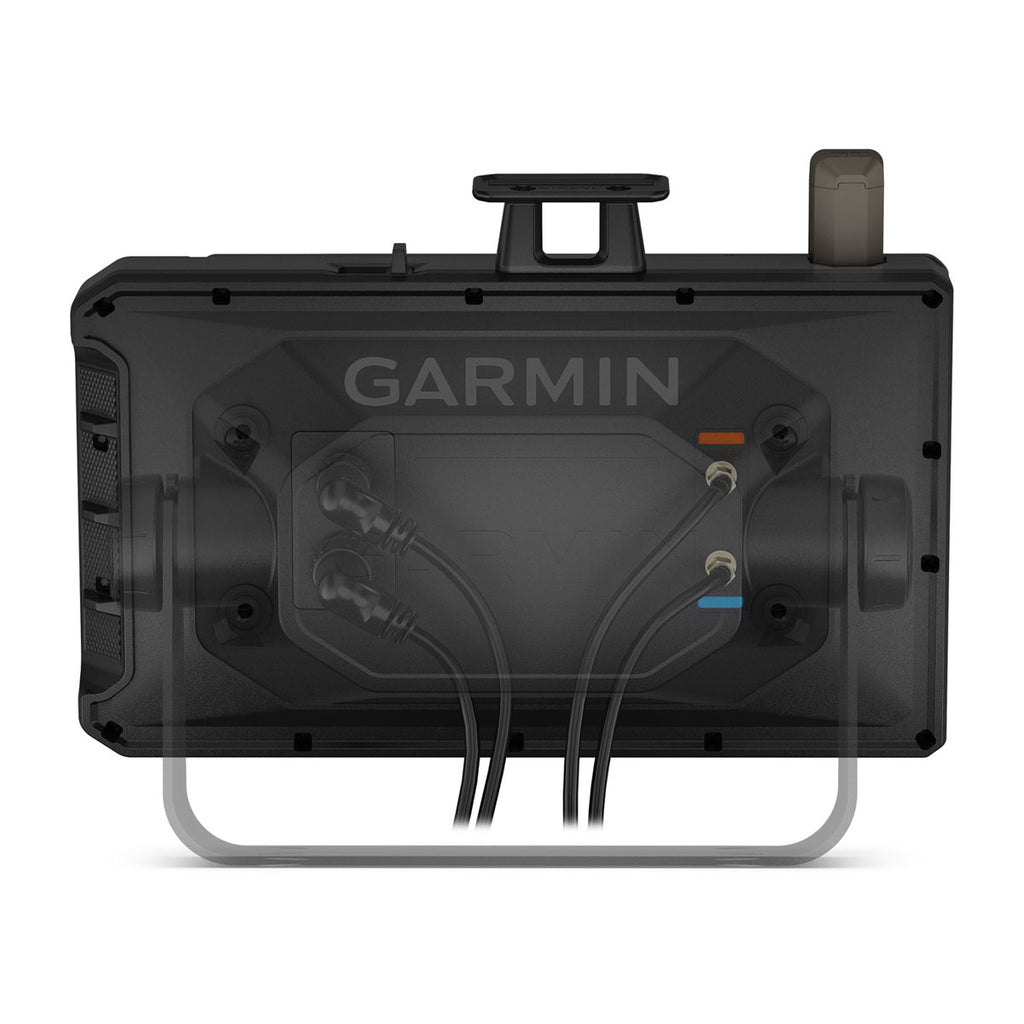

The 010-02510-00 Race package supplies the Tread XL Baja dock, dock power cable, bail mount, high-current power cable, external GPS antenna and external inReach antenna. Mount the navigator using the bail mount or an appropriate panel installation. Storage is 128 GB with optional microSD support to 256 GB; map/software updates use Wi-Fi.
Activate an inReach Flex Team subscription for team tracking, satellite messaging and associated service features. Satellite-device restrictions apply in some jurisdictions. Outdoor Maps+ requires an additional paid subscription. PowerSwitch, Group Ride Radio and BC 50 backup camera are optional accessories. Course files and pacenotes supplement race preparation; verify them with the event’s current instructions and real conditions.
Compatible Garmin devices
Garmin lists the following compatible devices for this model. Pairing functions depend on the device and setup. Additional devices, accessories and subscriptions are purchased separately unless named in the package contents below.
- Garmin PowerSwitch™
- Tread™ Audio System
In the box
- Tread XL - Baja Race Edition
- Tread XL Baja Dock
- Tread XL dock power cable
- Bail mount
- External inReach ® antenna
- External GPS antenna
- High-current power cable
- USB-C cable
- Documentation
Technical specifications
General
| Dimension | 9.9"W x 7.8"H x 1.2"D (25.2 x 19.9 x 3.1 cm), device only; 11.4"W x 7.6"H x 2.5"D (29 x 19.3 x 6.4 cm), device and dock |
|---|---|
| Weight | 32.8 oz (930 g), device only; 58.8 ounces (1666.5g), device and dock |
| Water rating | IPX7 |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm) |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | Yes |
| Magnetic Mount | locking magnet-assisted mount |
| Mount type | bail mount |
| 1.5-inch ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight |
| Compatible with Tread XL Baja dock accessory | yes (included) |
Maps & Memory
| Data cards | microSD™ card (not included) |
|---|---|
| Preloaded street maps | Yes |
| High-definition 3D terrain | Yes |
| 3D Terrain | Yes |
| Internal storage | 128 GB |
| Ability to add maps | Yes |
| External memory storage | yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | yes (BirdsEye) |
| BirdsEye Direct satellite imagery | Yes |
Sensors
| GPS | Yes |
|---|---|
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| 10 Hz multi-GNSS positioning | Yes |
Outdoor Recreation
| Preloaded topographical maps | Yes |
|---|---|
| Preloaded US public land boundaries | Yes |
| Preloaded private land parcel maps | yes (parcels greater than 4 acres) |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
Mapping & Navigation
| Point-to-point navigation | Yes |
|---|
Camera Features
| Backup camera compatible | yes (BC™ 50) |
|---|
Advanced Features
| Wi-Fi® map and software updates | Yes |
|---|
Adventure Features
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | Yes |
|---|---|
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Compatible with Group Ride Radio | Yes |
| Compatible with external GPS antenna with mount | yes (included) |
| Compatible with external inReach® satellite antenna | yes (included) |
| Group Ride Mobile | yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| iOverlander™ points of interest | Yes |
| Ultimate Public Campgrounds | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Glove-friendly touchscreen | Yes |
