Garmin part number: 010-02833-00
A race effort is only as strong as the support crew behind it. Garmin Tread XL Baja Chase Edition gives the chase truck a 10-inch navigation display, GPX course detail and dedicated chase tools. With an active inReach Flex Team subscription, race and support vehicles can exchange messages and position updates over satellite coverage. The portable mounting package makes it easier to move the navigator as trucks and assignments change.
Why it belongs in your rig
- 10-inch ultrabright, glove-friendly touchscreen
- GPX course lines, virtual checkpoints, pits and race-mile markers
- Built-in inReach team communication with an active Flex Team plan

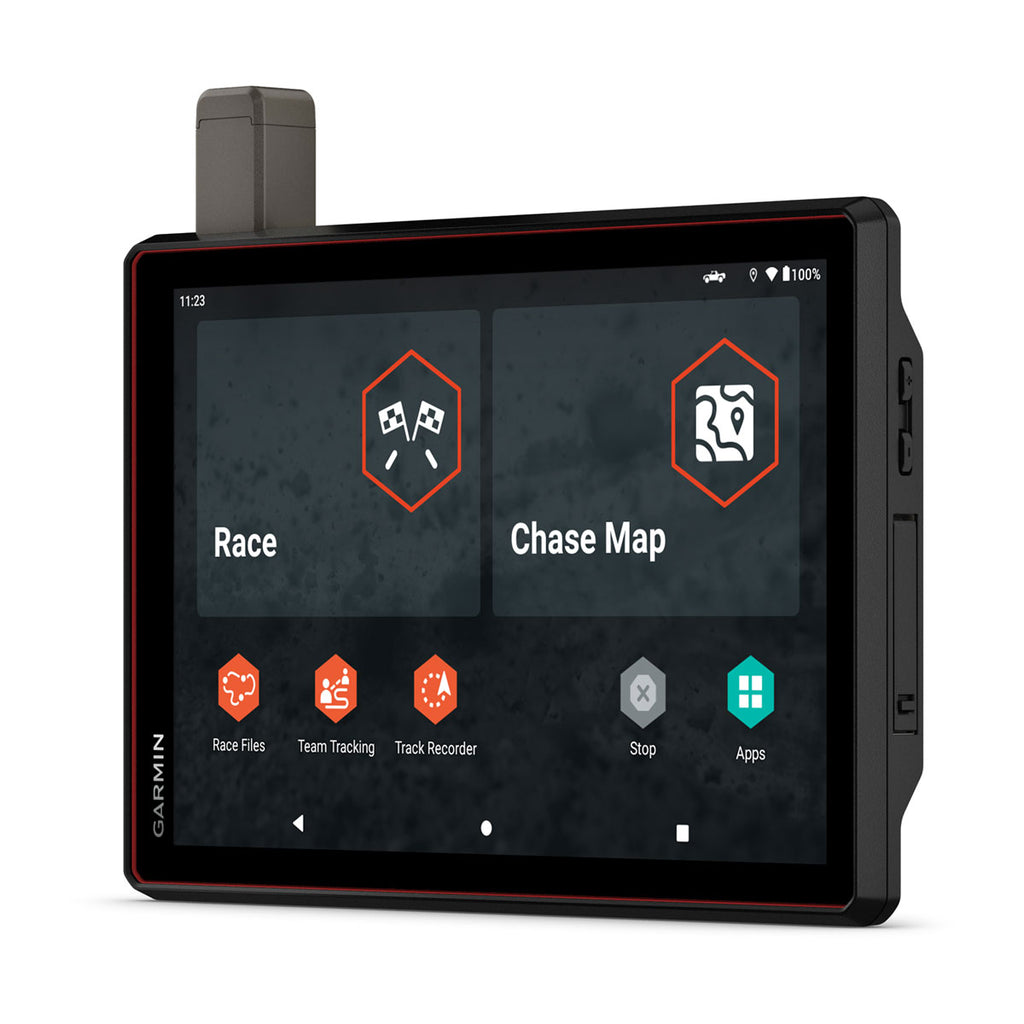

- Portable suction-cup mounting and chase mode for race support
Built for the drive

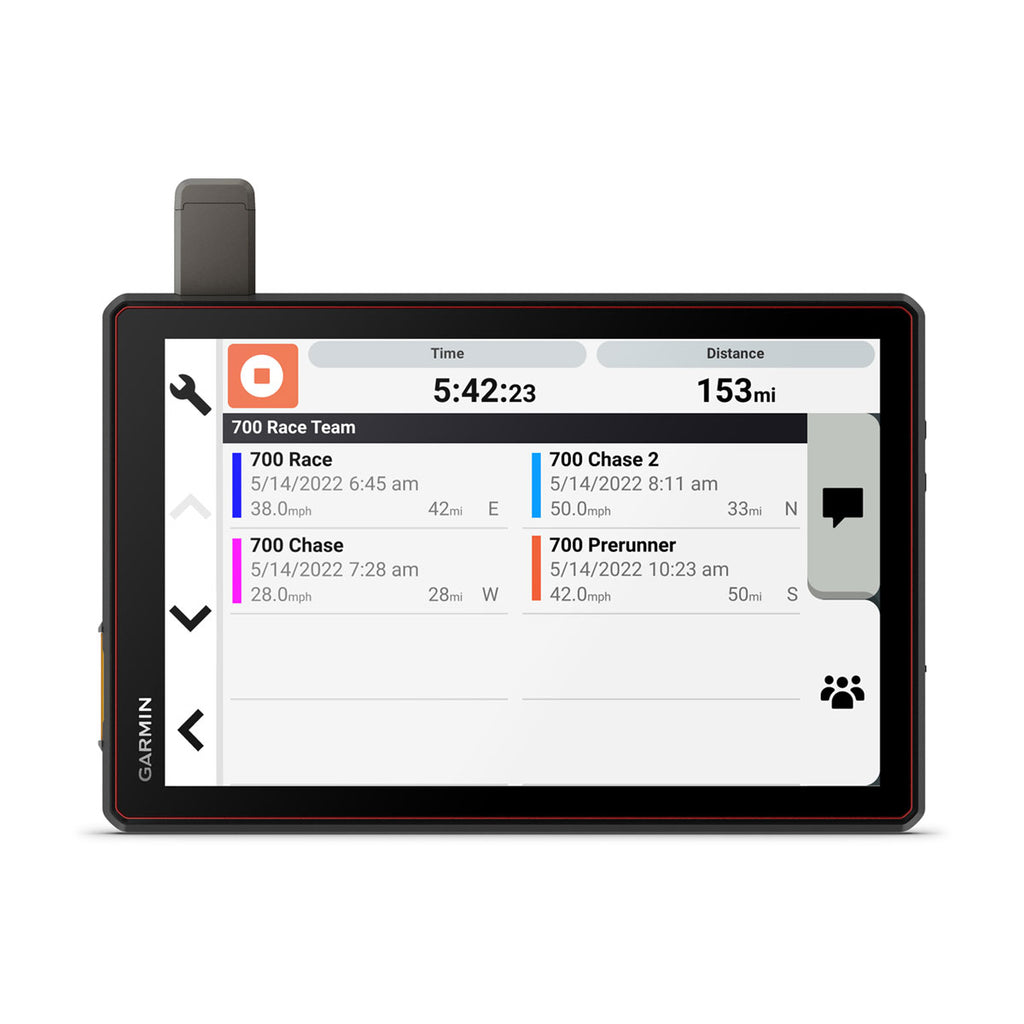

Team Tracking

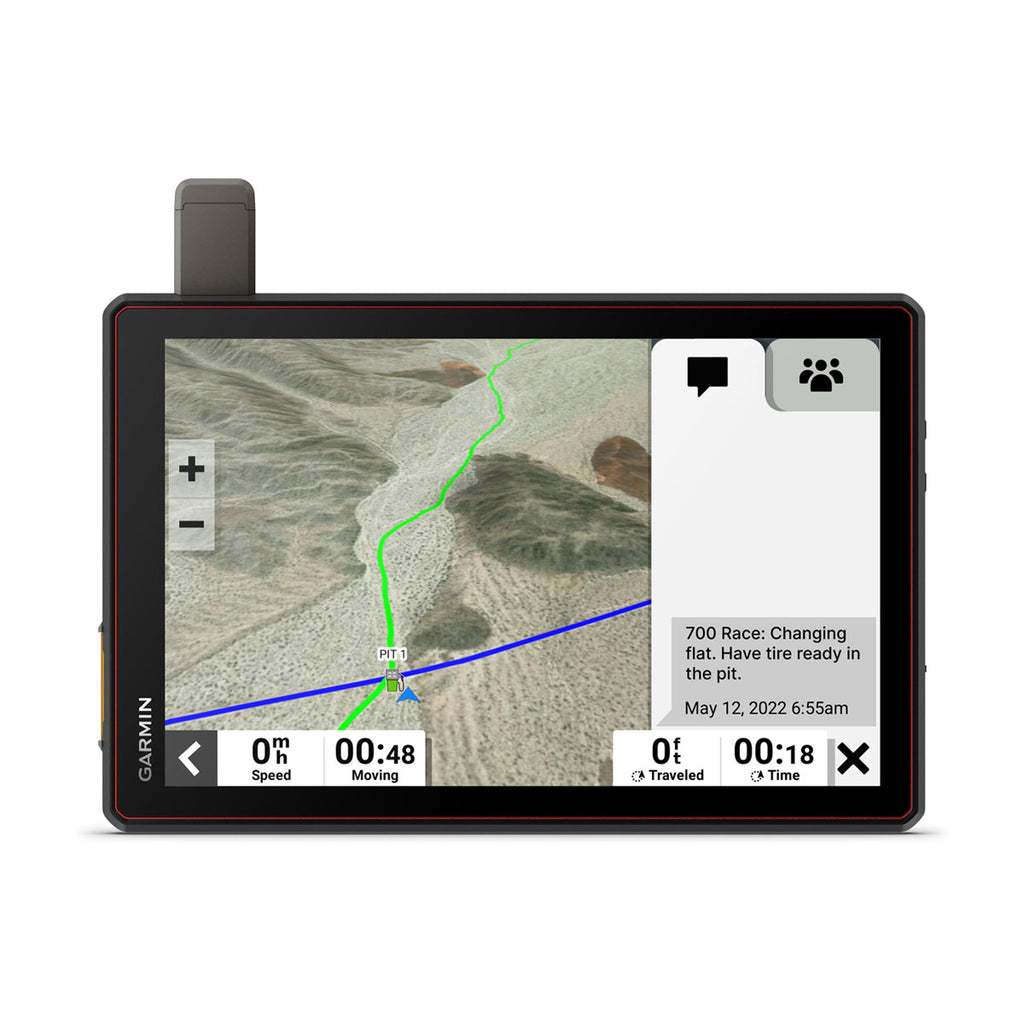

Built-in inReach technology lets suitably equipped race and support vehicles exchange messages and position updates over satellite coverage. An active inReach Flex Team subscription is required for the team service.
Easy Portability

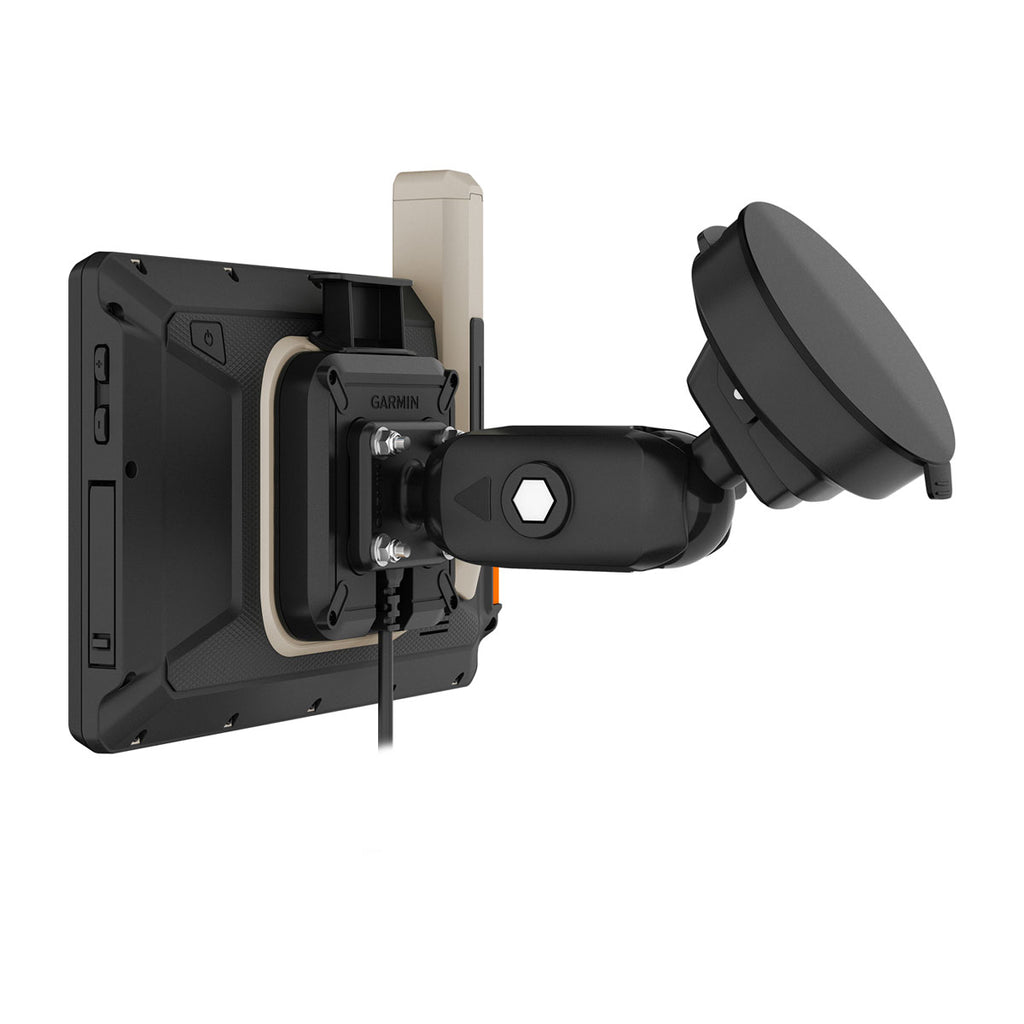

The heavy-duty suction-cup mount, vehicle power lead and portable mounting hardware make it easier to transfer the navigator between support trucks.
Know The Course

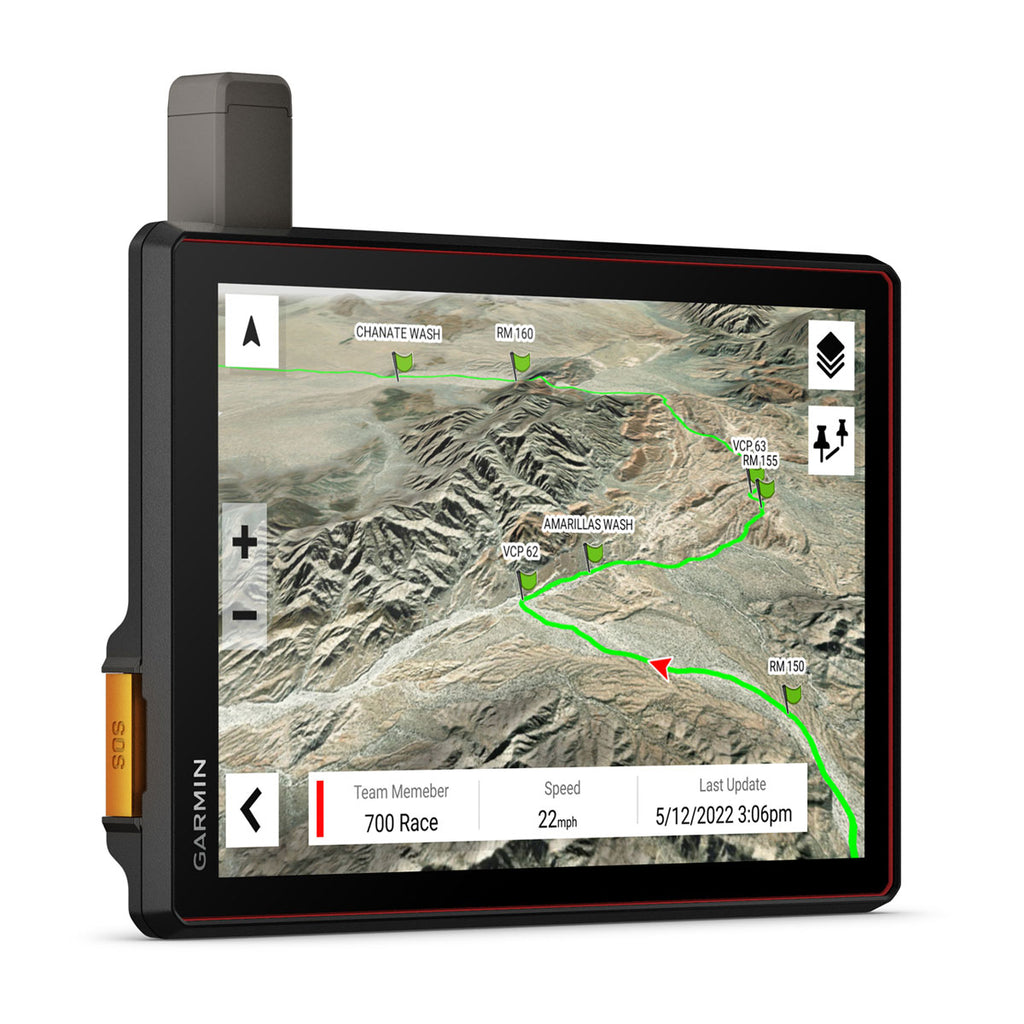

Load a GPX course before the event to display the course line, start/finish, virtual checkpoints and race-mile markers. Chase course data can also show pit locations.
Prerunning Tools
Build custom pacenotes while prerunning to mark turns, drop-offs and hazards. Keep the notes organized around the course and its virtual checkpoints.
Track Your Truck

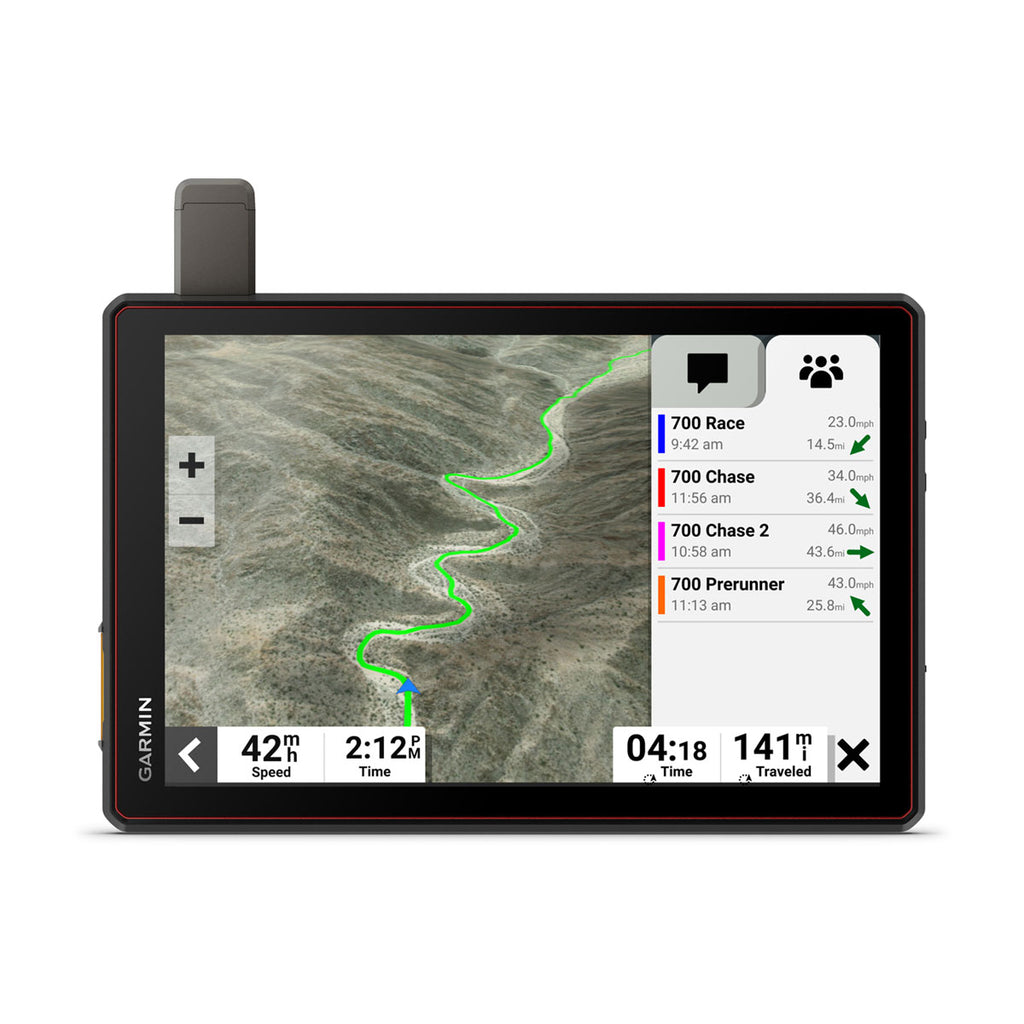

Chase mode displays updated race-vehicle positions on the map so the support crew can follow progress through the event.
High-Performance GPS
Optional external GPS and inReach antennas provide additional installation options in low-profile, water-resistant housings. Both antennas are purchased separately.
Control Your Accessories
Pair a separately sold Garmin PowerSwitch digital switch box to control supported 12-volt equipment such as rock lights, fans and air pumps from the navigator.
Off-Road Ruggedness
IP67 dust/water protection and construction intended for demanding desert travel make the navigator suited to the race-support environment.
Team Tracking Plans
An active inReach Flex Team plan unlocks the supported team service, including team tracking, text messaging and SOS. Review Garmin’s current plan details before activation.
Satellite Imagery
High-resolution overhead imagery provides another view of the terrain. Satellite imagery for the North Baja Peninsula is preloaded, and additional supported imagery can be downloaded.
Outdoor Maps+
Add a paid Outdoor Maps+ subscription for Garmin’s supported premium map layers and ongoing content access. It is an optional service separate from the navigator purchase.
See the setup and technology
Installation and what to plan for
This Chase package includes a suction-cup mount, locking magnet-assisted mount and vehicle power cable. It has 128 GB of internal storage, optional microSD expansion to 256 GB and Wi-Fi map/software updating. External GPS and inReach antennas are sold separately. The Baja dock is compatible but is not included in this package.
Team tracking, satellite messaging and related inReach functions require an active inReach Flex Team subscription. Satellite communication equipment is restricted in some jurisdictions. Outdoor Maps+ needs its own paid subscription. PowerSwitch, external antennas, Baja dock, Group Ride Radio and BC 50 camera are optional accessories. Download course information before the event and verify it against organizer instructions and the actual route.
Compatible Garmin devices
Garmin lists the following compatible devices for this model. Pairing functions depend on the device and setup. Additional devices, accessories and subscriptions are purchased separately unless named in the package contents below.
- Garmin PowerSwitch™
- Tread™ Audio System
In the box
- Tread XL - Baja Chase Edition
- Suction cup mount
- Vehicle power cable
- Locking magnet-assisted mount
- USB-C cable
- Documentation
Technical specifications
General
| Dimension | 9.9 x 7.8 x 1.2 in (25.2 x 19.9 x 3.1 cm) |
|---|---|
| Weight | 32.8 oz (930 g) |
| Water rating | IPX7 |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm) |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | Yes |
| Magnetic Mount | locking magnet-assisted mount |
| Mount type | heavy-duty suction cup mount |
| 1.5-inch ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight |
| Compatible with Tread XL Baja dock accessory | Yes |
Maps & Memory
| Data cards | microSD™ card (not included) |
|---|---|
| Preloaded street maps | Yes |
| High-definition 3D terrain | Yes |
| 3D Terrain | Yes |
| Internal storage | 128 GB |
| Ability to add maps | Yes |
| External memory storage | yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | yes (BirdsEye) |
| BirdsEye Direct satellite imagery | Yes |
Sensors
| GPS | Yes |
|---|---|
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| 10 Hz multi-GNSS positioning | Yes |
Outdoor Recreation
| Preloaded topographical maps | Yes |
|---|---|
| Preloaded US public land boundaries | Yes |
| Preloaded private land parcel maps | yes (parcels greater than 4 acres) |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
Mapping & Navigation
| Point-to-point navigation | Yes |
|---|
Camera Features
| Backup camera compatible | yes (BC™ 50) |
|---|
Advanced Features
| Wi-Fi® map and software updates | Yes |
|---|
Adventure Features
| Built-in inReach® Technology (requires active subscription; subject to regulations or prohibitions in some jurisdictions) | Yes |
|---|---|
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
| Compatible with Group Ride Radio | Yes |
| Compatible with external GPS antenna with mount | Yes |
| Compatible with external inReach® satellite antenna | Yes |
| Group Ride Mobile | yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| iOverlander™ points of interest | Yes |
| Ultimate Public Campgrounds | Yes |
| Birdseye Satellite Imagery (download via Wi-Fi) | Yes |
| Glove-friendly touchscreen | Yes |
