PMB Performance · Authorized Garmin Retailer
Garmin part number: 010-03021-00
The route to a good campsite usually gets interesting after the pavement ends. Garmin Tread 2 Overland Edition puts trail guidance, North American street routing and detailed terrain on an ultrabright 8-inch screen. The updated processor speeds map drawing and route calculations, while a locking mount keeps the navigator in place when the road gets rough. Add compatible Garmin accessories as your rig and your adventures grow.
Why it belongs in your rig
- Rugged 8-inch HD touchscreen and updated processor
- North/South America topographic maps, trail guidance and satellite imagery
- Vehicle-profile street routing and over 46,000 U.S. camping locations
- Suction-cup/locking magnetic mounting package for your overland rig
Built for the drive
Rugged Design

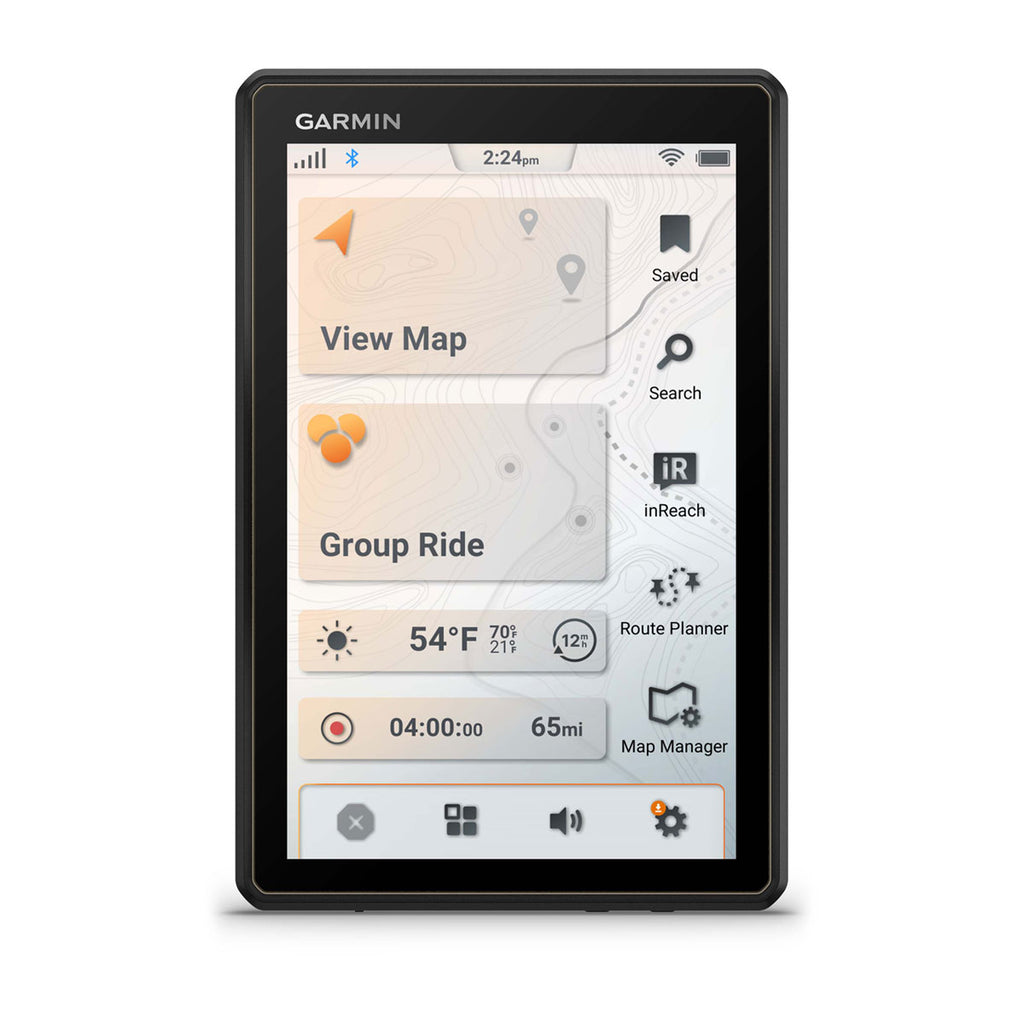

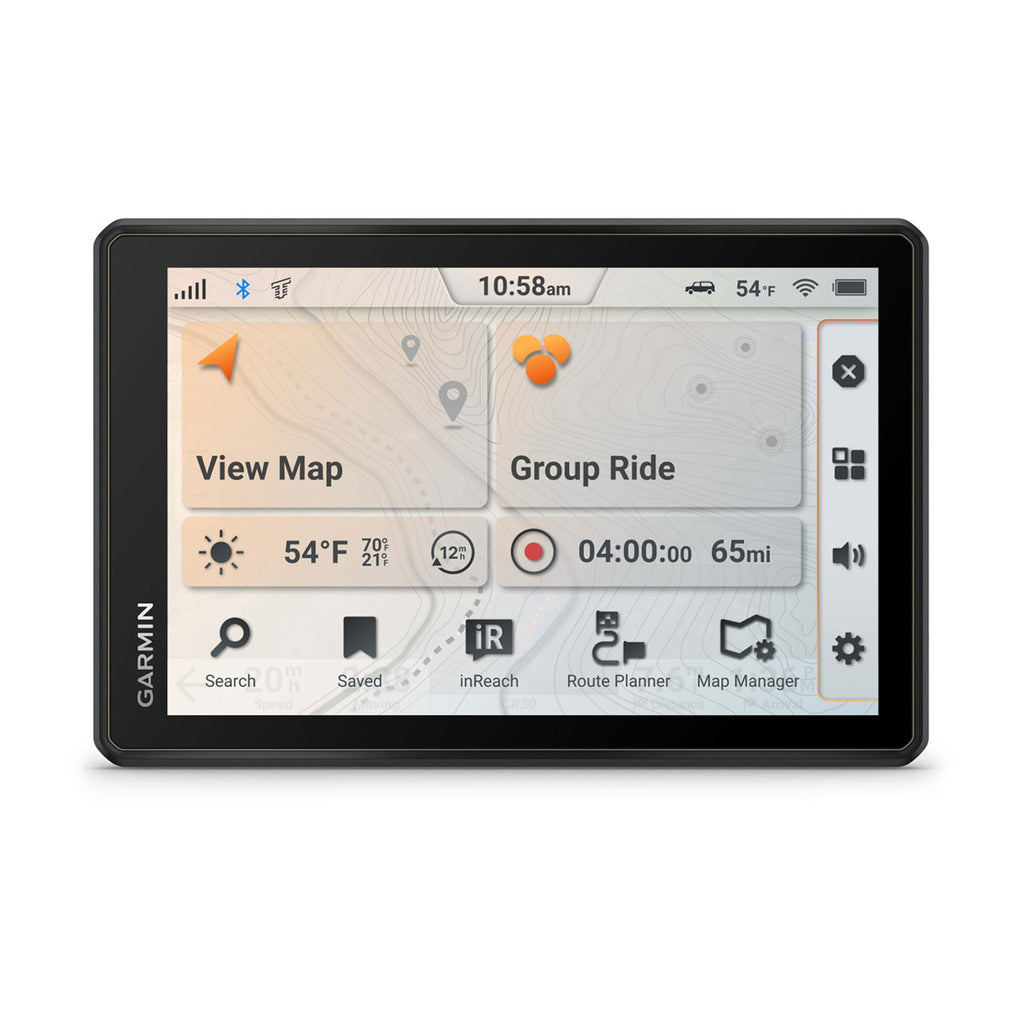

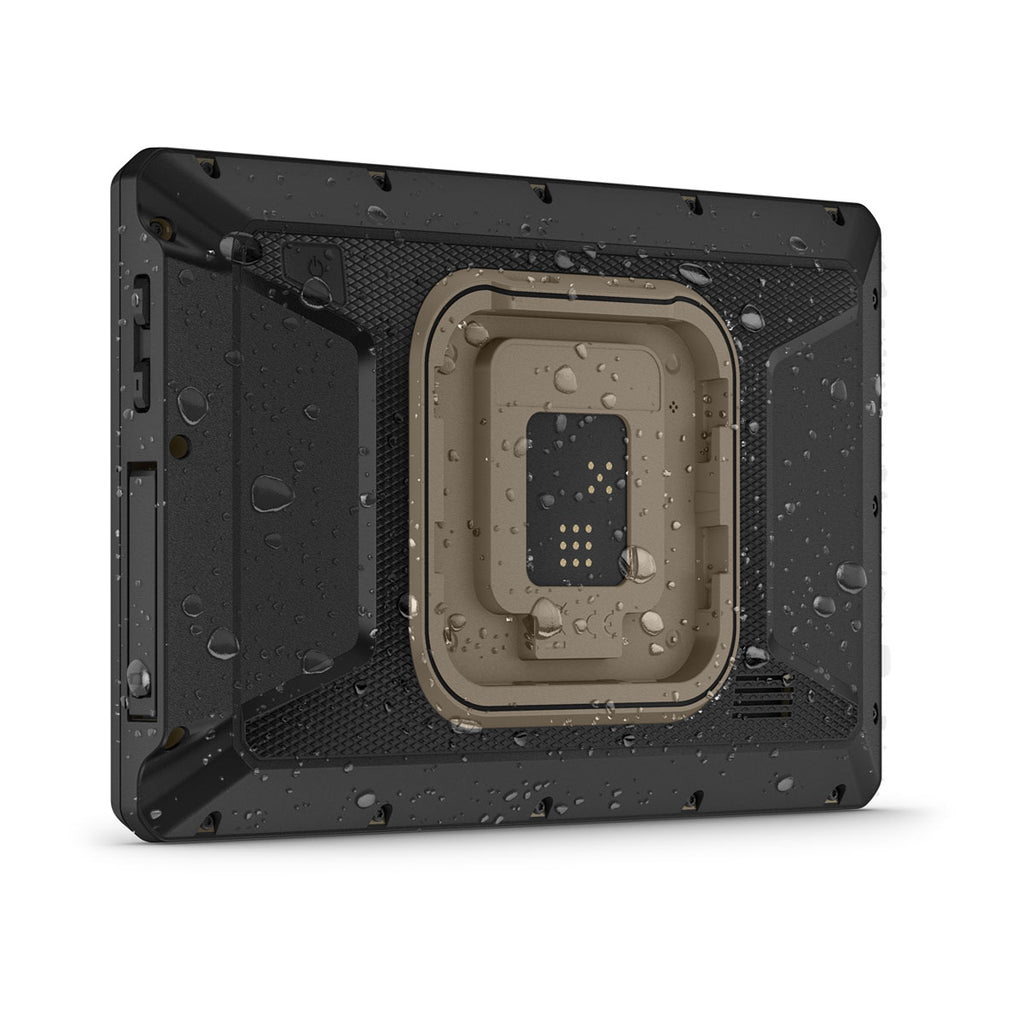

An 8-inch glove-friendly HD display, IP67 dust/water protection and heavy-duty mounting suit rough travel. The updated processor speeds route calculation and map drawing.
Turn-By-Turn Navigation
Use supported Adventure Roads and Trails, OpenStreetMap and USFS Motor Vehicle Use Map content for turn-by-turn off-road guidance. Available difficulty ratings add route context; maps remain a supplement to signs, permitted access and actual conditions.
Satellite Views

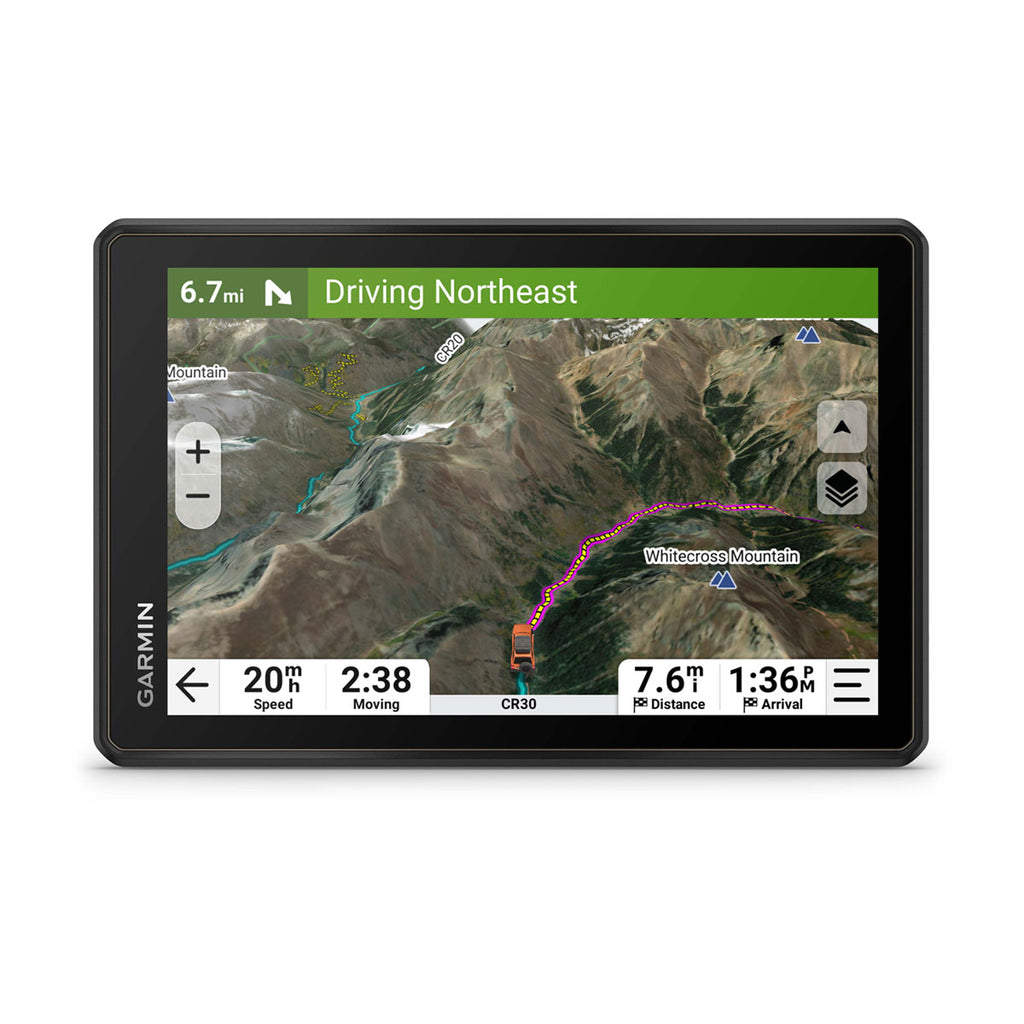

Download high-resolution satellite imagery over Wi-Fi to inspect routes and surrounding terrain. This satellite-image download feature does not need an annual imagery subscription.
Custom Routing
North American City Navigator street maps can use your rig’s size and weight profile when suggesting a route. Receive supported hazard alerts for issues such as sharp curves and speed changes. Coverage and profile handling are limited; verify clearance and suitability.
Great Rides
Use Great Rides in the Tread smartphone app to discover off-road routes, bookmark rides for the navigator, rate difficulty and contribute photos.
Outdoor Maps+
Add a paid Outdoor Maps+ subscription for Garmin’s supported premium map layers and ongoing content access. It is an optional service separate from the navigator purchase.
Easy Route Planner
Build routes in the Tread app using the maps and preferences you use on the navigator. Import and export GPX files to exchange plans with the rest of the group.
Campgrounds
The preloaded Ultimate Public Campgrounds directory covers more than 46,000 U.S. camping locations, giving you more options for the end of the day.
Group Ride Mobile

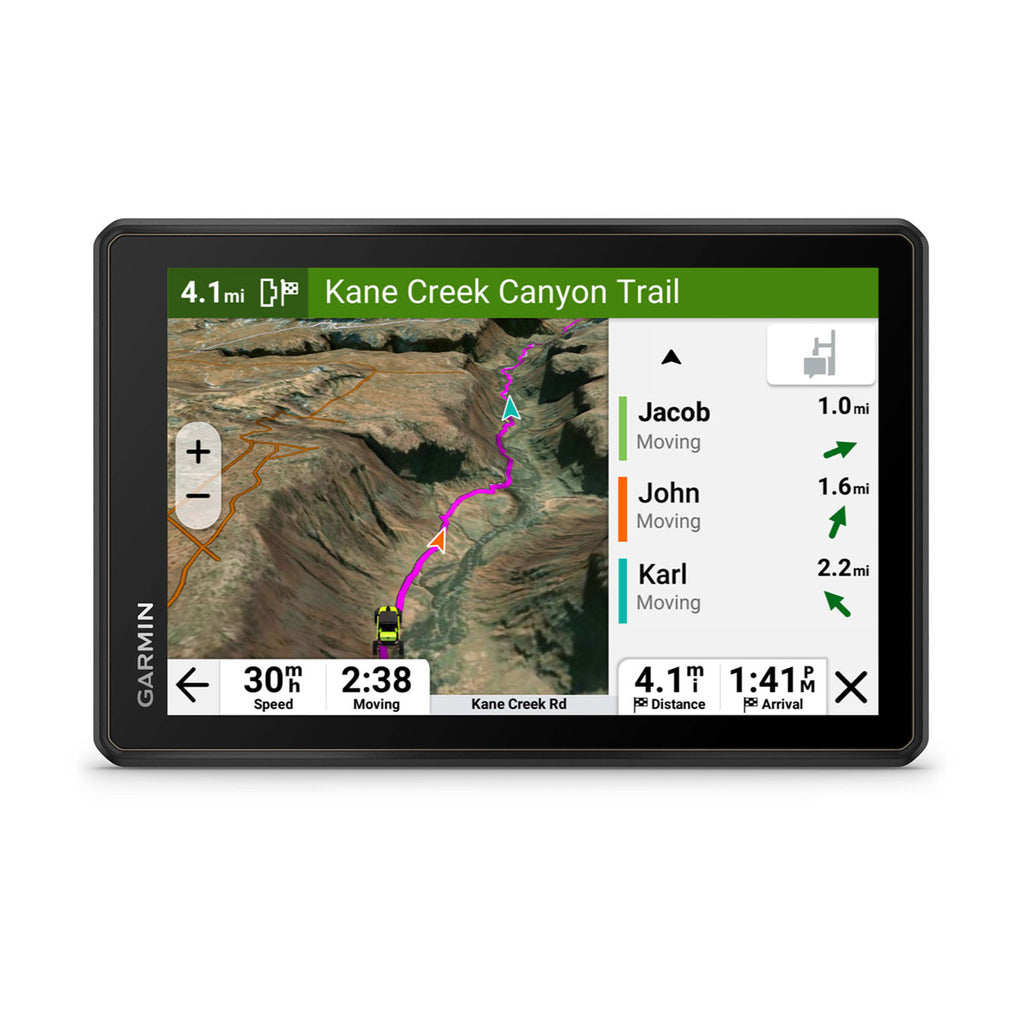

When everyone uses the Tread app’s Group Ride Mobile feature, follow your friends from a compatible smartphone or Tread navigator.
Sync Your Devices
Keep waypoints, tracks, routes and collections aligned between your compatible mobile device and navigator through the Tread app.
Elevation Maps And More

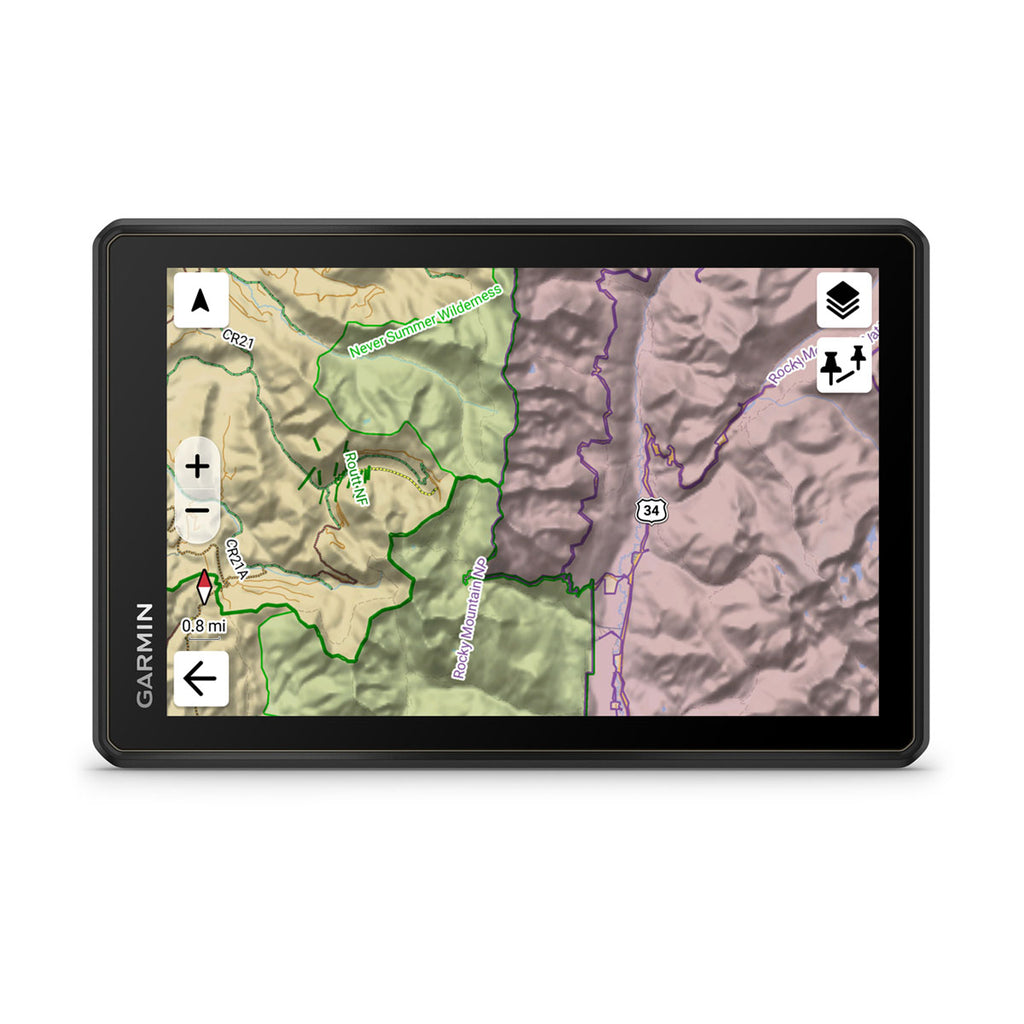

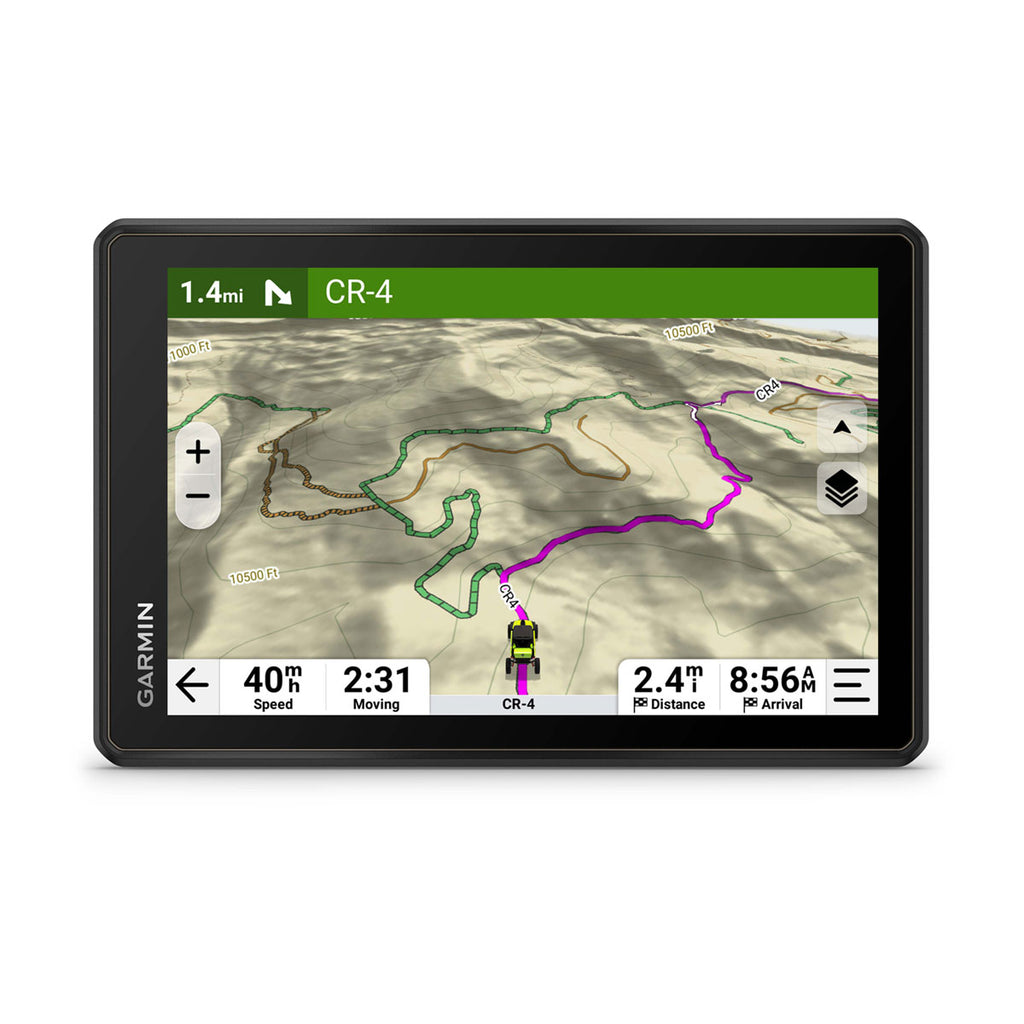

High-definition elevation mapping adds terrain context to off-road exploring. Dirt and snow trails sit alongside City Navigator street mapping for the journey back.
ABC Sensors
Built-in altitude, barometric and compass sensors add useful information when the terrain gets demanding. Pitch and roll gauges are also included in the navigator’s feature set.
Know Your Boundaries
See mapped public lands including national forests, BLM areas and wilderness. Private-parcel information and landowner details are shown for supported parcels larger than four acres; always confirm permission and access.
Live Weather
Pair a compatible smartphone and use the Tread app for live weather information, storm alerts and animated radar when the needed connection is available.
Traveling Music
Control music stored on a compatible smartphone from the navigation display and listen through a compatible Bluetooth helmet or headset.
Digital Switch Box
Add a Garmin PowerSwitch digital switch box to manage supported 12-volt accessories from the navigator. It can handle functions such as light bars and differential locks; it is not intended for reverse-polarity motors.
inReach Technology
Pair a compatible, separately sold inReach satellite communicator for messaging, interactive SOS and weather with an active satellite plan. Selected paired devices also support photo and voice messaging.
Dog Tracking
Pair a compatible Garmin GPS dog-tracking system to display dogs within tracking range on the navigation map. Tracking equipment is purchased separately.
Group Ride Radio
Add a compatible Group Ride Radio to share locations and talk with the group outside cellular coverage. Use the radio’s push-to-talk mic or pair compatible Bluetooth helmet/headset equipment for hands-free communication.
Messaging On The Go
Send and receive two-way messages on the navigator’s display with other Garmin Messenger users. Both people need Garmin Messenger installed on their paired smartphones.
Installation and what to plan for
This 010-03021-00 package includes the suction-cup mount, locking magnet-assisted mount and vehicle power cable. It does not include the optional PowerSwitch bundle. Storage is 64 GB with optional microSD support up to 256 GB. Download the Tread app to plan routes, exchange GPX files and sync data; smartphone features need a compatible phone and the required connection.
Satellite messaging and SOS require a separately sold compatible inReach communicator and an active satellite subscription; inReach is not built into Tread 2. Outdoor Maps+ is optional and paid. PowerSwitch, Group Ride Radio, external antenna, dog-tracking system, handlebar controller and BC 50 camera are optional. Route/profile data has coverage and accuracy limits; verify roads, signs, vehicle clearances and trail access. Garmin Messenger messaging requires both users to have the app on paired smartphones.
Compatible Garmin devices
Garmin lists the following compatible devices for this model. Pairing functions depend on the device and setup. Additional devices, accessories and subscriptions are purchased separately unless named in the package contents below.
- Alpha® 10
- Alpha® 100
- Alpha® 200
- Alpha® 200i
- Alpha® 300
- Alpha® 300i
- Astro® 320
- Astro® 430
- Astro® 900
- Garmin PowerSwitch™
- GPSMAP® 66i
- GPSMAP® 86i
- GPSMAP® 86sci
- Handlebar Controller
- inReach® Messenger
- inReach® Messenger Plus
- inReach® Mini
- inReach® Mini 2
- inReach® Mini 2 Marine Bundle
- inReach® Mini 3
- inReach® Mini 3 Plus
- Montana® 700i
- Montana® 710i
- Montana® 750i
- Montana® 760i
- PRO 550 Plus
- Tread™ Audio System
In the box
- Tread 2 - Overland Edition
- Suction cup mount
- Vehicle power cable
- Locking magnet-assisted mount
- USB cable
- Documentation
Technical specifications
General
| Dimension | 8.1"W x 5.4"H x 1.1"D (20.6 x 13.7 x 2.8 cm) |
|---|---|
| Weight | 22.1 oz (627 g) |
| Water rating | IPX7 |
| Display Type | multi-touch, glass, high brightness HD color TFT with white backlight |
| Display Size | 6.8" W x 4.2" H; 8" diagonal (20.3 cm) |
| Display resolution | 1280 x 800 pixels |
| Dual-orientation display | Yes |
| Magnetic Mount | locking magnet-assisted mount |
| 1.5-inch ball adapter with AMPS plate | Yes |
| Drop rating | MIL-STD-810 |
| Dust rating | IP6X |
| Battery Type | rechargeable lithium-ion |
| Battery life | Up to 6 hours at 50% backlight; Up to 1 hour at 100% backlight |
Maps & Memory
| Data cards | microSD™ card (not included) |
|---|---|
| Preloaded street maps | Yes |
| High-definition 3D terrain | Yes |
| 3D Terrain | Yes |
| Internal storage | 64 GB |
| Ability to add maps | Yes |
| External memory storage | yes (256 GB max microSD™ card) |
| Includes map updates | Yes |
| Downloadable Satellite Imagery | Yes |
| TOPO map support | Yes |
Sensors
| GPS | Yes |
|---|---|
| Galileo | Yes |
| Barometric altimeter | Yes |
| Compass | Yes |
| 10 Hz multi-GNSS positioning | Yes |
Outdoor Recreation
| Preloaded topographical maps | Yes |
|---|---|
| Preloaded US public land boundaries | Yes |
| Preloaded private land parcel maps | yes (parcels greater than 4 acres) |
| Preloaded USFS Roads and Trails, including motor-vehicle-use-maps for motorcycle, ATV, SXS and full-size 4x4 | Yes |
| Navigate-a-track navigation | Yes |
| Turn-by-turn trail navigation | Yes |
| Compatible with Outdoor Maps+ subscription | Yes |
Mapping & Navigation
| Point-to-point navigation | Yes |
|---|
Camera Features
| Backup camera compatible | yes (BC™ 50 only) |
|---|
Navigation Features
| Garmin Real Directions™ landmark guidance | Yes |
|---|---|
| TripAdvisor® traveler ratings | Yes |
| Route shaping through preferred cities/streets | Yes |
| Includes traffic | yes (with Garmin Tread app) |
| Lane assist with junction view (displays junction signs) | Yes |
| Bluetooth® pairing | yes (works with BLUETOOTH-compatible helmet, headset or smartphone; BLE capable) |
| Speed limit indicator (displays speed limit for most major roads in the U.S. and Europe) | Yes |
Advanced Features
| Smart notifications via app | Yes |
|---|---|
| Wi-Fi® map and software updates | Yes |
| Access to live services via app (traffic, weather, etc.) | Yes |
Motorcycle Features
| Control music and media from smartphone or MP3 player | Yes |
|---|---|
| Sunlight readable and weather resistant | Yes |
| Garmin Adventurous Routing™ | Yes |
| Elevation profile | Yes |
| Round trip routing | Yes |
| Custom map support | Yes |
RV Features
| Specialized routing for the size and weight of your vehicle | Yes |
|---|---|
| RV Parks & Services directory | Yes |
| Road elevations | Yes |
| Speed limit changes | Yes |
| Easy Route Planner with GPX file sharing | Yes |
Adventure Features
| Pair with Garmin PowerSwitch™ digital switch box | Yes |
|---|---|
| Compatible with handlebar controller | Yes |
| Compatible with Group Ride Radio | Yes |
| Compatible with external GPS antenna with mount | Yes |
| Group Ride Mobile | yes (with Garmin Tread app) |
| Track recorder (breadcrumbs) | Yes |
| Compatible with the Garmin Tread app for route planning and data management (waypoints, tracks, and routes) | Yes |
| Ultimate Public Campgrounds | Yes |
| Pitch and Roll gauges | Yes |
| Glove-friendly touchscreen | Yes |
Outdoor Applications
| Dog tracking | yes (when paired to compatible dog track system) |
|---|
Watch Garmin’s product videos
Build the right setup with PMB Performance
Choose Garmin Tread 2 - Overland Edition for your next adventure. Match the part number, review the installation and service requirements above, and contact PMB Performance if you need help choosing the right accessories for your vehicle.
Build your Garmin setup with PMB
Explore compatible devices, accessories and complementary equipment below. These items are sold separately; review the installation and compatibility requirements for your setup.
- BC 50 (010-02609-00) — Compatible BC 50 wireless backup camera; vehicle wiring/installation required
- Garmin BC 50 with Night Vision Backup Camera | 010-02610-00 (010-02610-00) — Compatible BC 50 Night Vision camera; switched 12/24 V wiring and installation required
- Garmin inReach Mini 3 SOS Satellite Communicator | 010-03387-00 (010-03387-00) — Compatible inReach satellite communicator for supported remote functions; active satellite subscription required
- Garmin PowerSwitch 6-Circuit Digital Switch Box | 010-02466-00 (010-02466-00) — Compatible control for supported 12 V accessories; separate wiring required; maximum 30 A per output and 100 A combined
