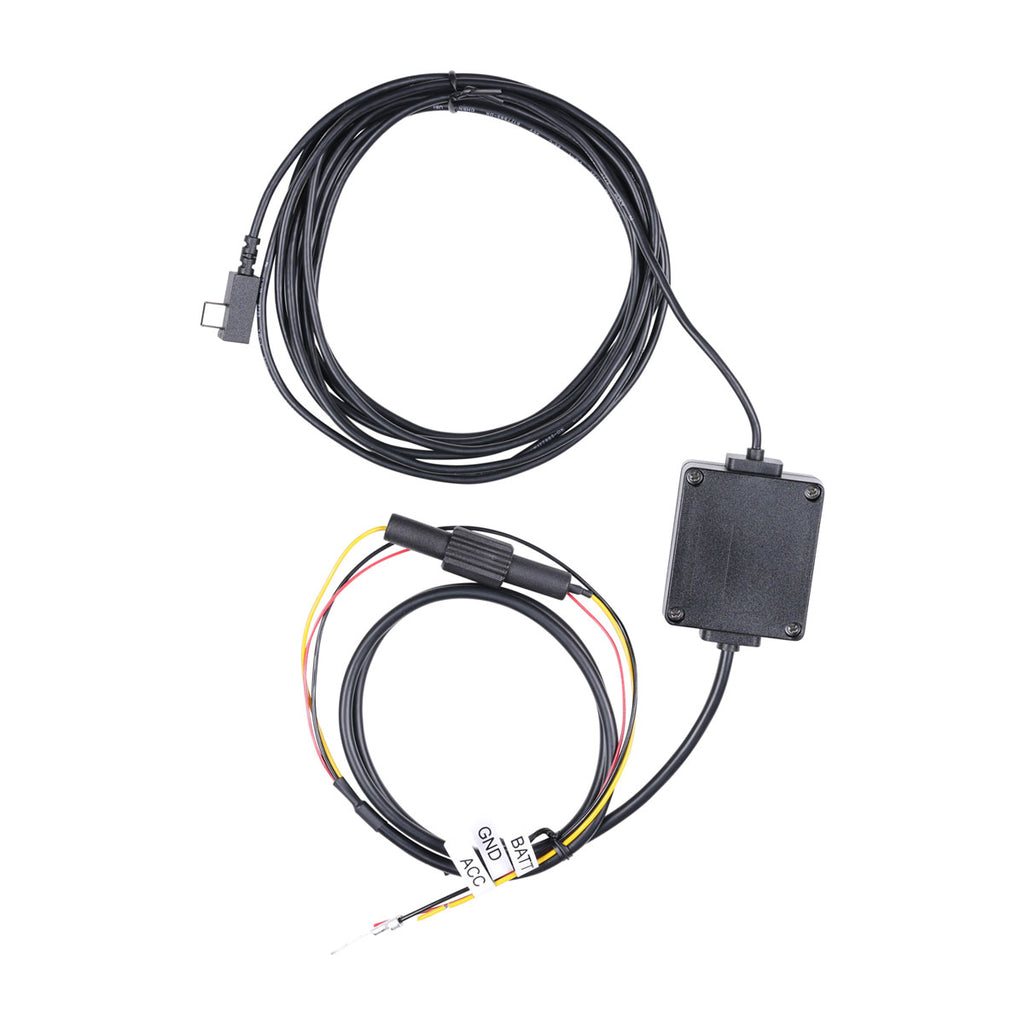

Garmin Parking Mode Cable (USB-C) (010-13412-00) – product view 1

Garmin Parking Mode Cable USB-C – 13-Foot Hardwire Power Cable

  • Sale
  • $49.99
Shipping calculated at checkout.

PMB Performance · Authorized Garmin Retailer

Garmin part number: 010-13412-00

A permanent camera install should look like it belongs in the car. Garmin’s USB-C Parking Mode Cable provides a hardwired power option for supported current Garmin dash cameras, with a 13-foot cable to help route the installation cleanly. It can keep a compatible camera powered while the vehicle is parked and also provides a hardwired power option for Garmin Catalyst 2.

Finish the install properly

  • USB-C connection for the exact Garmin models listed below
  • 13 ft (4 m) cable for routing through the vehicle
  • Constant-power connection for supported parked-camera monitoring
  • Also compatible with Garmin Catalyst 2 for hardwired power

Keep the power lead out of the way

Rather than leaving the camera powered only from a switched accessory socket, a properly installed parking cable connects it to the vehicle’s constant-power, switched-power and ground circuits. The camera’s parked-monitoring functions and settings determine what is recorded.

Exact USB-C compatibility

Garmin lists these models for part number 010-13412-00:

  • Garmin Catalyst™ 2
  • Garmin Dash Cam™ Mini 3
  • Garmin Dash Cam™ X110
  • Garmin Dash Cam™ X210
  • Garmin Dash Cam™ X310

This is the USB-C version. It is not the cable to select for Dash Cam 47, Dash Cam 67W or Dash Cam Live, whose older power connections require the appropriate model-specific solution. Check the exact device and part number before ordering.

Understand what power enables

A hardwire installation supplies power; it does not add camera features, Wi-Fi, LTE or a cloud subscription. Live View, Parking Guard alerts and online video functions retain the supported camera’s network, smartphone, settings and paid-service requirements. For Catalyst 2, this cable provides power; the motorsports device remains intended for appropriate circuit use.

Installation requirements

Garmin strongly recommends an experienced installer with electrical-system knowledge. The camera manual shows BATT to constant battery power, ACC to switched accessory power and GND to chassis ground. Incorrect wiring can damage the vehicle or battery and cause injury. Use the official instructions for the device and the vehicle; this product description is not a substitute for an installation procedure.

Specifications and wiring reference

Part number 010-13412-00
Device connector USB-C
Cable length 13 ft (4 m)
Installation Hardwired vehicle power; experienced electrical installer strongly recommended
Battery/constant-power lead Yellow BATT wire; 12 V battery source shown in Garmin’s wiring diagram
Switched-power lead Red ACC wire; 12 V accessory source shown in Garmin’s wiring diagram
Ground lead Black GND wire; vehicle chassis ground

Package item

  • Garmin Parking Mode Cable (USB-C), 13 ft (4 m), part number 010-13412-00

Dash cameras, Garmin Catalyst 2 and installation labor are not included.

Build your setup with PMB Performance

Confirm the USB-C device match, then plan the wiring with a qualified installer. Review Garmin’s parking-cable installation guidance and wire-function reference, or contact PMB Performance for help choosing your accessories.
