Garmin part number: 010-04735-00
When the mirrors are busy and the session is moving quickly, another source of rearward awareness can help. Garmin Catalyst R1 Racing Radar uses a compact rear sensor and heads-up indicator lights to alert you to approaching vehicles and supported blind-spot situations on the racetrack. This is the track-car radar system with its own wired installation and included mounting hardware.
Know when a car is closing
Garmin specifies approaching-vehicle detection up to 197 feet (60 meters) across a 170-degree horizontal angle. Moving-vehicle heads-up alerts cover approaching traffic and vehicles in supported blind-spot positions.
The operational speed range is 15–177 mph, with a stated maximum of 285 km/h. Detection applies to approaching vehicles traveling 0–43 mph (0–70 km/h) faster relative to your current speed. These are operating limits, not a promise to detect every vehicle in every situation.

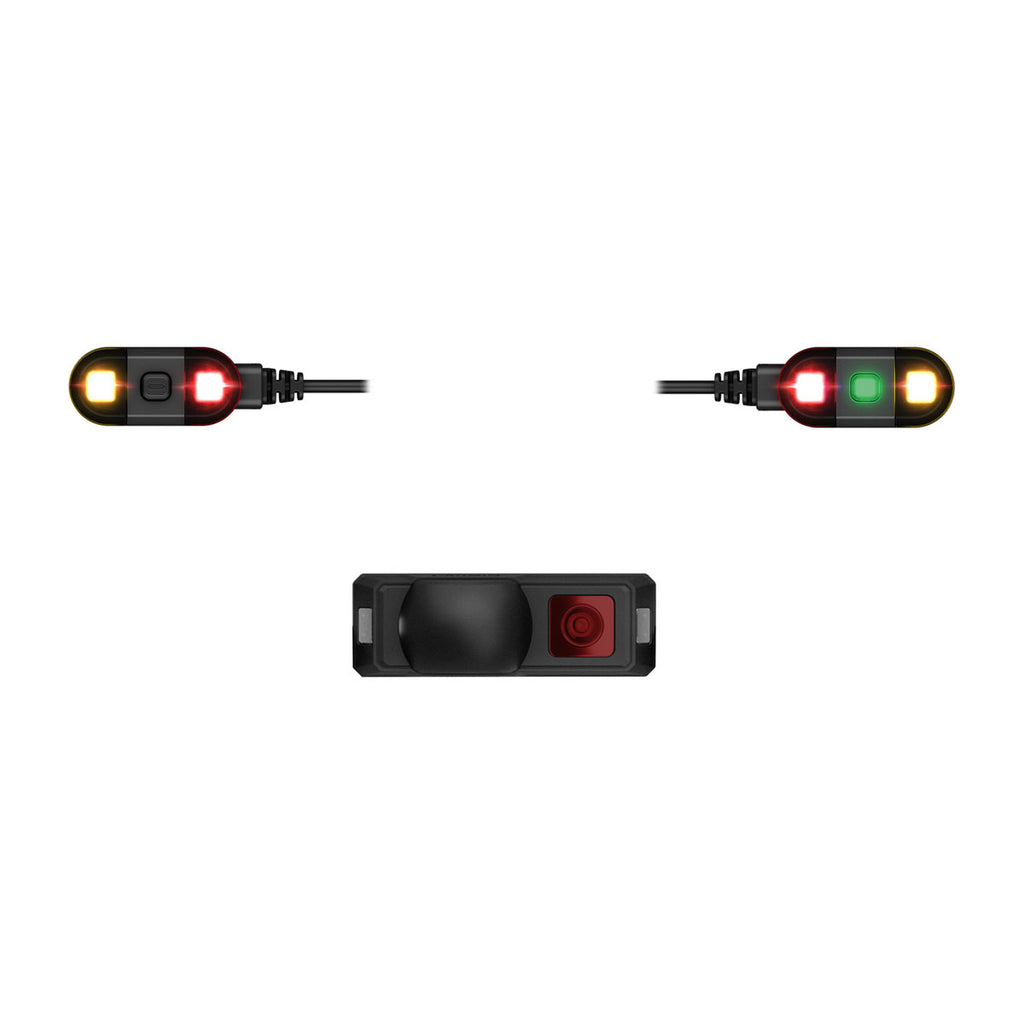

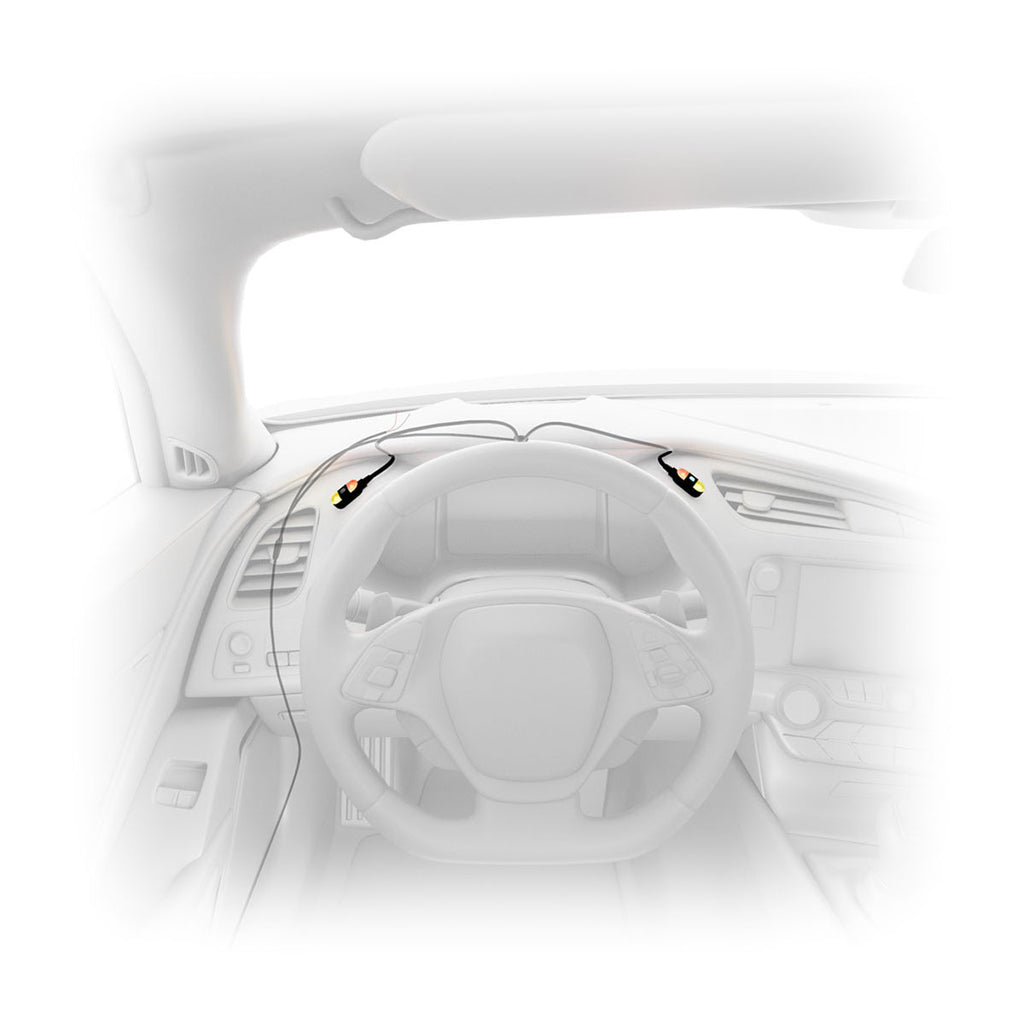

Indicator lights place alerts in view, and an ambient-light sensor automatically adjusts brightness. A status indicator and power/mode button are built in. Automatic shutdown occurs after the system has been parked for 10 minutes.
Fit it to the track-car layout

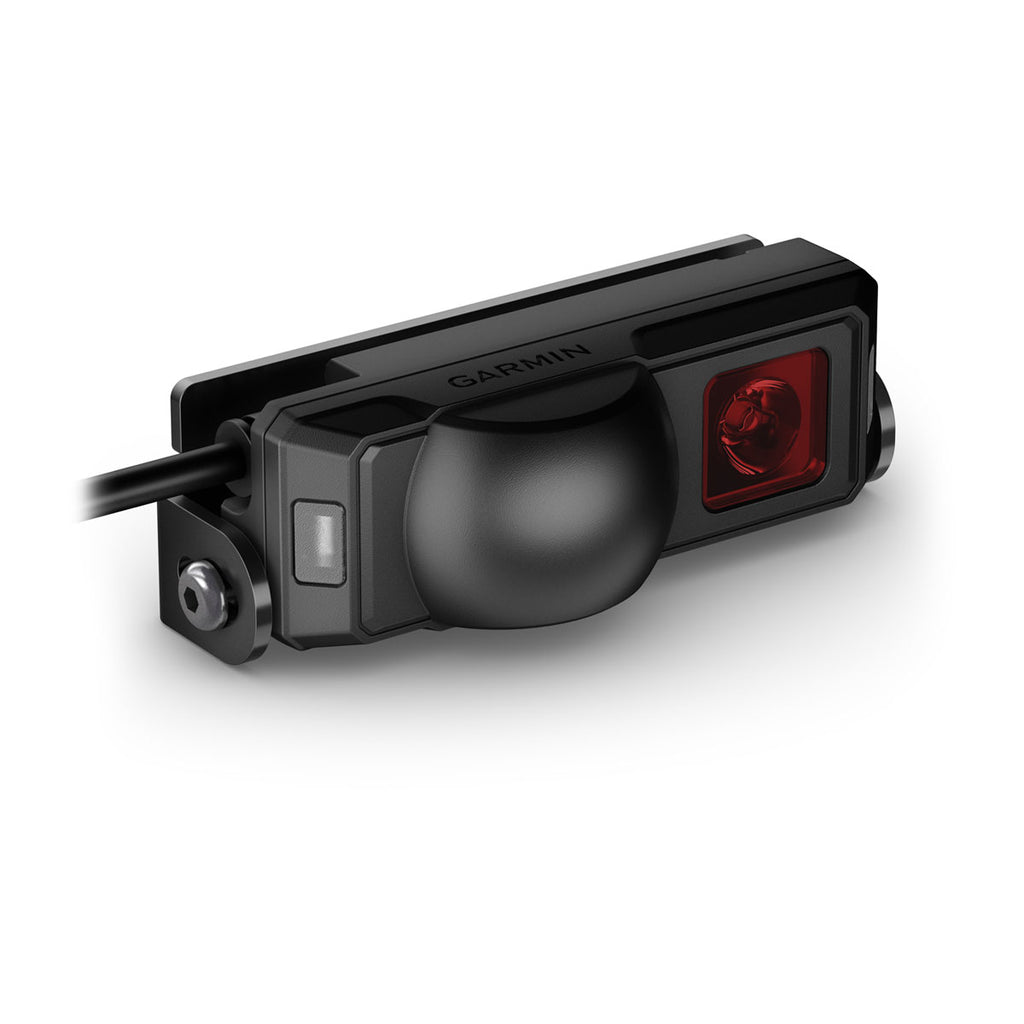

The sensor measures 78.75 × 26.95 × 30.00 mm; the light module measures 42.56 × 17.31 × 14.00 mm. Garmin lists the sensor with cable, without mounts, at 348.7 g and the light assembly with cable, without mounts, at 97.4 g.

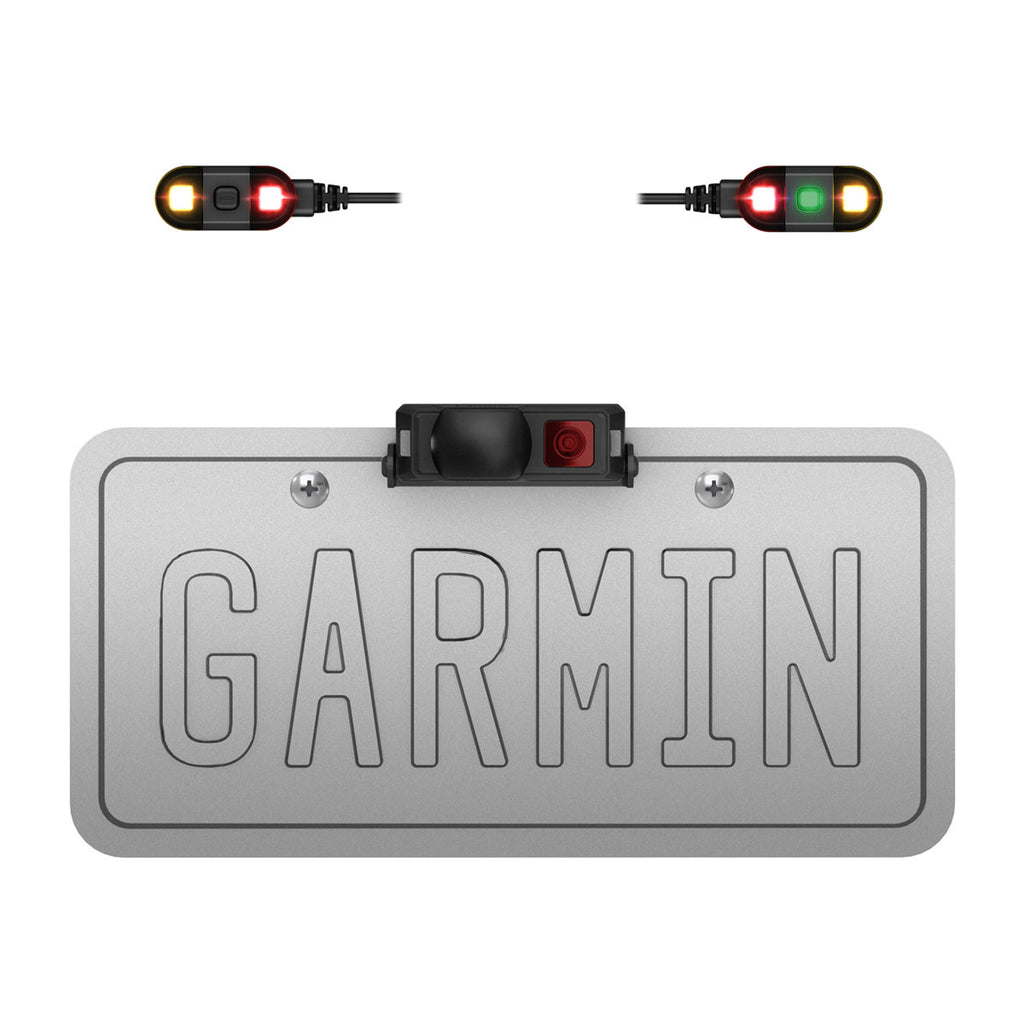

A versatile panel-mount arrangement, surface plate bracket with screws, adhesive mounts and zip ties are included. The indicator lights use a 10-foot (3-meter) cable. A bare-wire power cable is included, and wired 12-volt installation is required.
The system carries an IP67 dust/water rating and supports Bluetooth for a smartphone app. This is Catalyst R1 Racing Radar, SKU 010-04735-00. It is separate from zūmo R1 motorcycle radar and from a Catalyst driving performance optimizer.
Technical specifications
| General | |
|---|---|
| Sensor dimensions (LxWxD) | 78.75 x 26.95 x 30.00 mm |
| Light dimensions (LxWxD) | 42.56 x 17.31 x 14.00 mm |
| Sensor weight, with cable, without mounts | 348.7 g |
| Light's weight, with cable, without mounts | 97.4 g |
| Radar mounts | versatile panel mount |
| Power source | Wired 12 V power (installation required) |
| Bluetooth™ | yes (for smartphone app) |
| Water rating | IP67 |
| Status indicator | yes |
| Power/Mode button | yes |
| Automatic shut down when parked | yes (after 10 min) |
| Radar detection distance | Approaching vehicles up to 197 ft (60 m) away |
| Radar detection angle (horizontal) | 170° |
| Minimum radar operational speed | 15 mph |
| Maximum radar operational speed | 177 mph (285 km/h) |
| Vehicle detection speed | Approaching vehicle speed from 0 to 43 mph (from 0 to 70 km/h) relative to your current speed |
| Light sensor for automatic brightness dimming | yes |
| Heads-up vehicle in blindspot alerts when moving | yes |
| Heads-up approaching vehicle alerts when moving | yes |
What’s in the box
- Garmin Catalyst™ R1
- Indicator lights with 10 ft (3 m) cable
- Bare wire power cable
- Surface plate mount bracket with screws
- Adhesive mounts
- Zip ties
- Documentation
Before you install or use it
- Bad weather and wet tracks can interfere with radar operation. Continue checking mirrors and surroundings, especially in those conditions.
- Alerts support awareness; the driver remains responsible for judging traffic, overtakes and safe vehicle placement. Confirm installation and power routing for the vehicle.
Explore the Garmin details

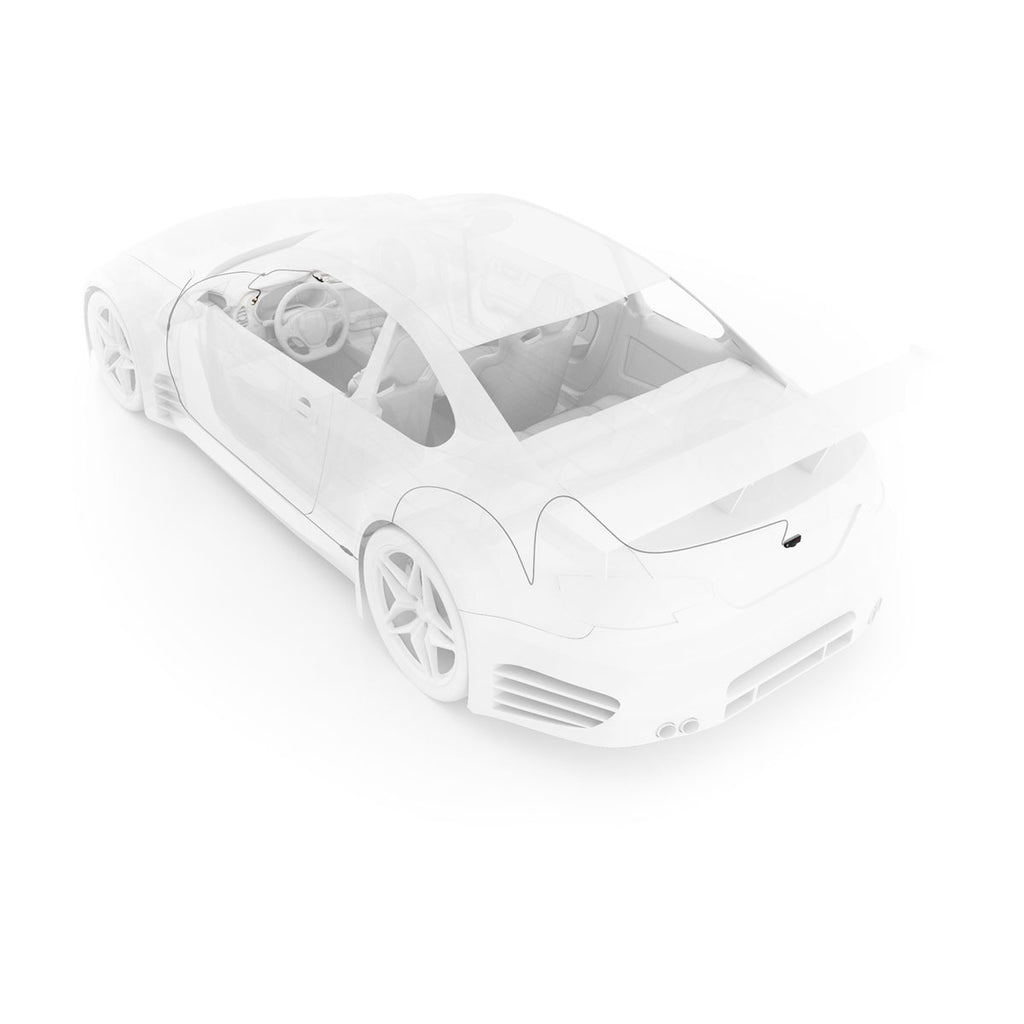

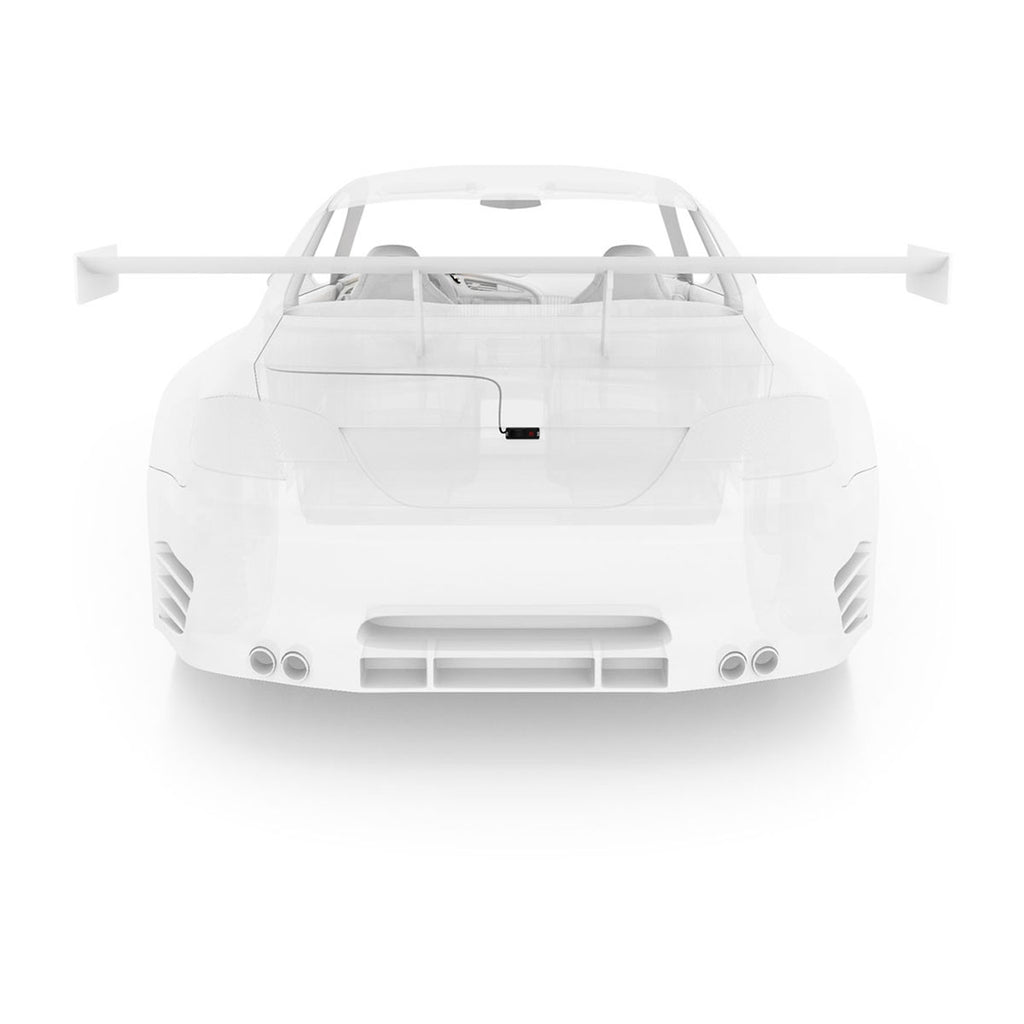

Official Garmin product-page photography and illustrations. Some show related family models, optional accessories or connected services; only the exact part number and in-box items listed above are supplied. Subscription and connectivity requirements apply as described.
Add another layer of traffic awareness to the track-car setup. Order Garmin Catalyst R1 Racing Radar from PMB Performance.
