Product details

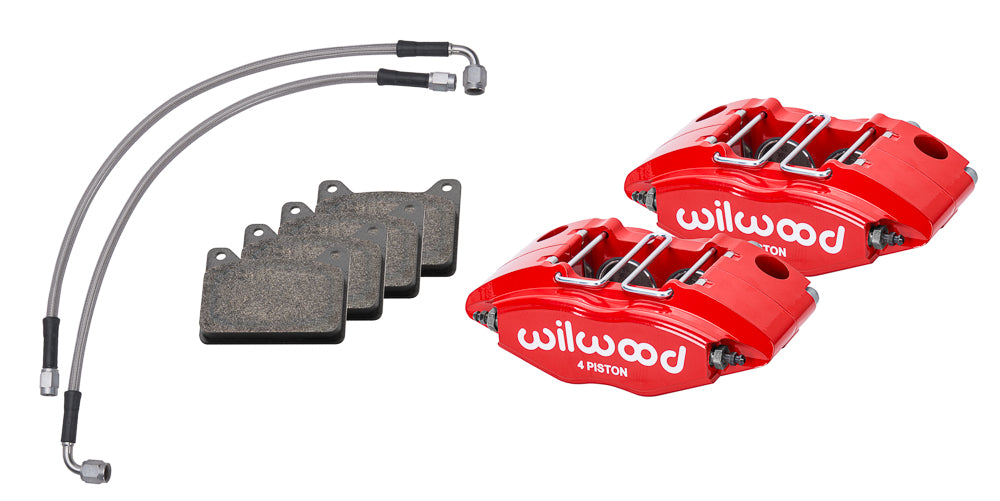

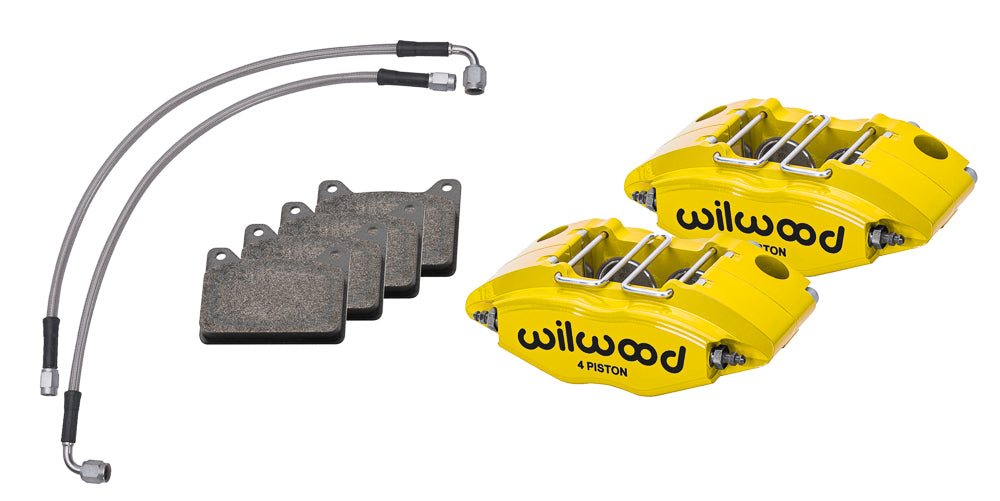

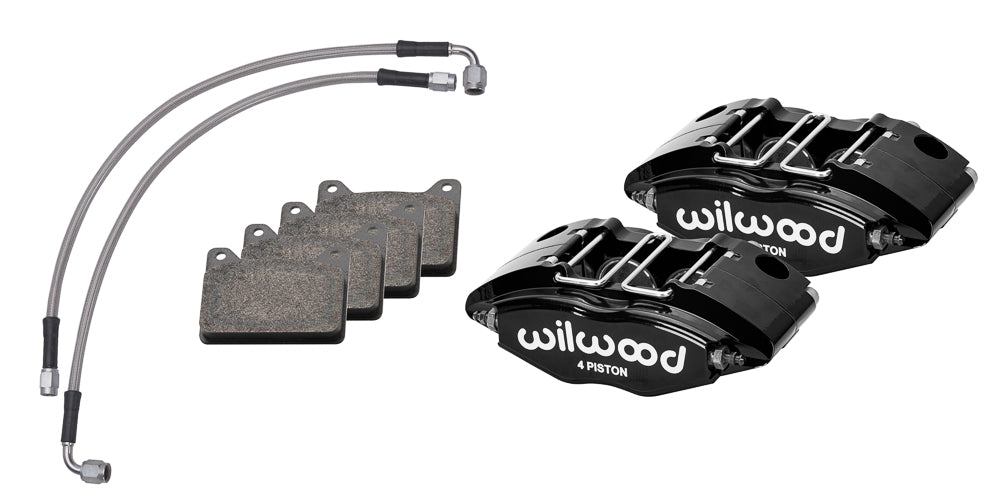

Add Powerlite four-piston front calipers to compatible, serviceable factory-size rotors. This caliper-and-bracket kit includes pads and braided flexlines for both front wheels; rotors and hubs are not included.

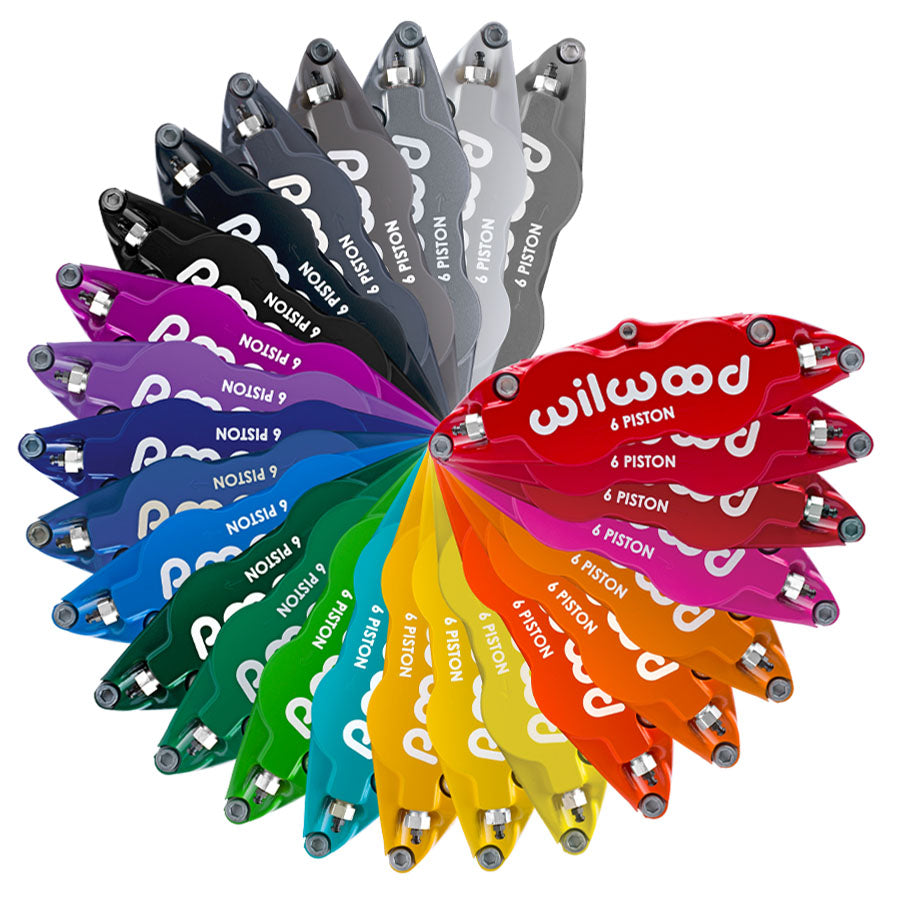

Custom color orders: PMB will confirm your requested finish before the order is finalized.
Vehicle Fitment
| Porsche model | Years | Version / application | Required brake setup |
|---|---|---|---|
| 911 | 1969–1974 | M-type front struts | 3.00-inch front caliper mounts; serviceable 282 × 20 mm vented rotors |
| 914-6 | 1970–1971 | Factory six-cylinder | 3.00-inch front caliper mounts; serviceable 282 × 20 mm vented rotors |
Match the brakes and suspension actually fitted to the car. Changed struts, hubs, uprights or previous brake conversions need a separate fitment check.
Measure between the centers of the caliper mounting holes, not across the strut tube. Use the mounting distance specified in the table.
The 914-6 row applies to the factory six-cylinder front setup; it does not establish fitment for a four-cylinder 914 or a car converted to different struts.

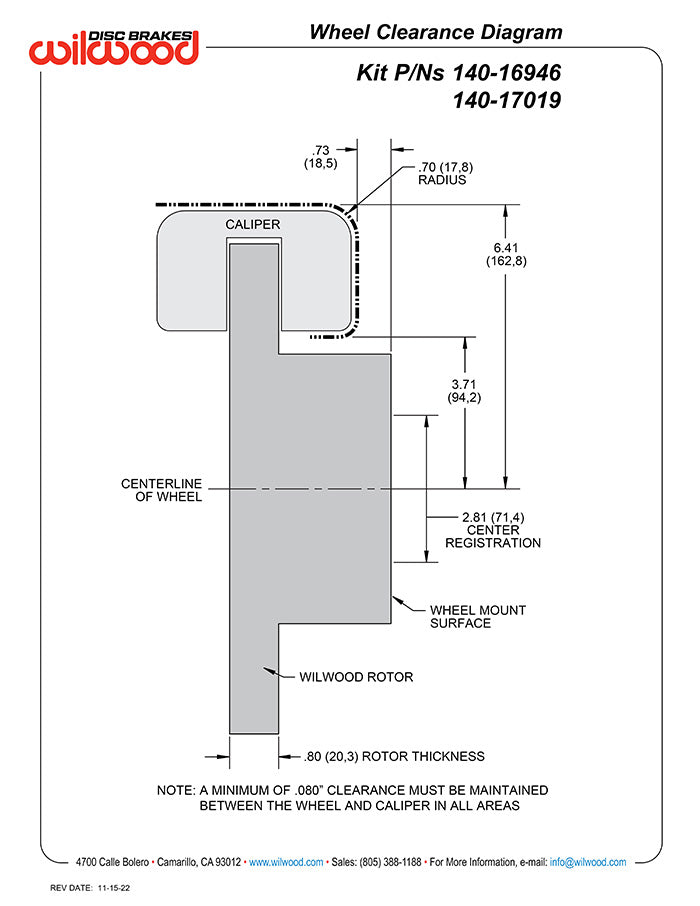

A 15-inch wheel may clear, but diameter alone is not enough. Compare the exact wheel’s barrel and spokes with the wheel-clearance drawing before ordering.
Watch: How to measure your 911 front strut mounts
See where to measure the front caliper mounting holes, then compare the result with the requirement in the fitment table.

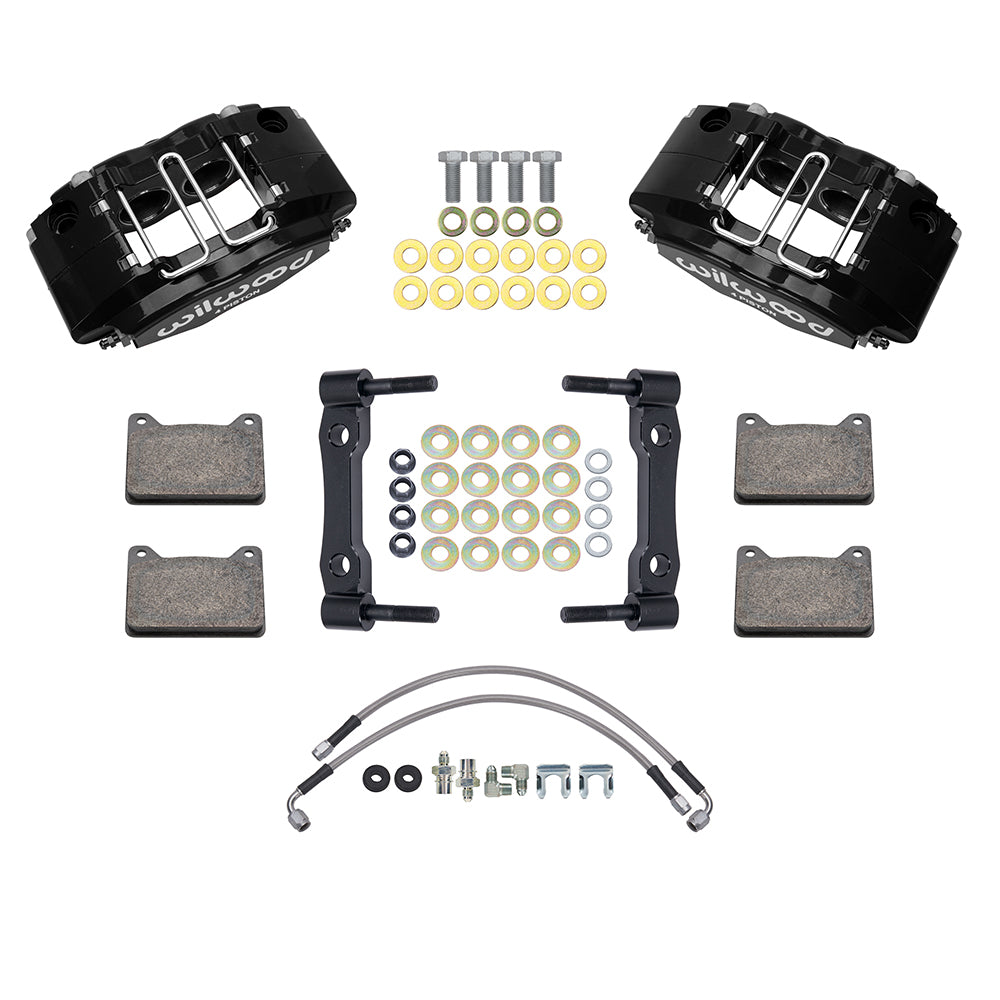

What is included
- Two Powerlite four-piston calipers in the selected finish.
- BP-10 pads for both front calipers.
- Caliper mounting brackets and installation hardware.
- Braided stainless steel front flexlines.
Required existing parts
Use the compatible original 11.10-inch-diameter, nominal 20 mm-thick vented front rotors and factory hubs specified by Wilwood. Have the rotors checked for condition and service limits. Solid rotors are not a substitute. If you need new rotors with the calipers, choose the separate 140-16946 kit. The factory front dust shields must be removed for this installation and are not reinstalled, as specified in Wilwood’s instructions.
| Caliper | Powerlite; four pistons per caliper |
|---|---|
| Rotors supplied | None; compatible existing vented rotors required |
| Pad compound | BP-10; pad shape 7912 |
| Mount requirement | 3.00-inch (76.2 mm) M-strut caliper tabs |
Questions before ordering
Is this a complete rotor kit?
No. It supplies both front calipers, pads, brackets, hardware and flexlines. You supply the compatible serviceable rotors and reuse the original hubs.
Will this fit a 3.5-inch strut?
No. This 140-17019 kit is specified for M-type struts with 3.00-inch mounting-tab spacing. Measure before ordering.
Can I retain my master cylinder?
Wilwood allows the stock OEM master cylinder for the specified Porsche 911 installation. Your installer must verify the complete system’s pedal travel and brake balance.
Installation Documents
Installation instructions and clearance drawings open in a new tab.
Need help matching your Porsche?
Send PMB your model and year, photos of the existing brakes, and any known suspension changes. For front kits, include the caliper mounting-tab measurement; for rear kits, include the rotor thickness. Contact PMB for help choosing the correct kit.
