Powerlite Front Brake Kit
Looking for the least expensive option for getting big brakes under your 911 or 912? Your search ends here! Wilwood's Powerlite Front Brake Kits allow the easiest way to upgrade your 911 or 912 to 4 piston calipers. A one piece rotor and hat assembly that is identical to a stock 20mm rotor was formulated from Wilwood's own proprietary iron compounds. Their BP-10 performance pads top off this bundle. Everything else simply bolts on using the stock rotor and spindle mounting locations.

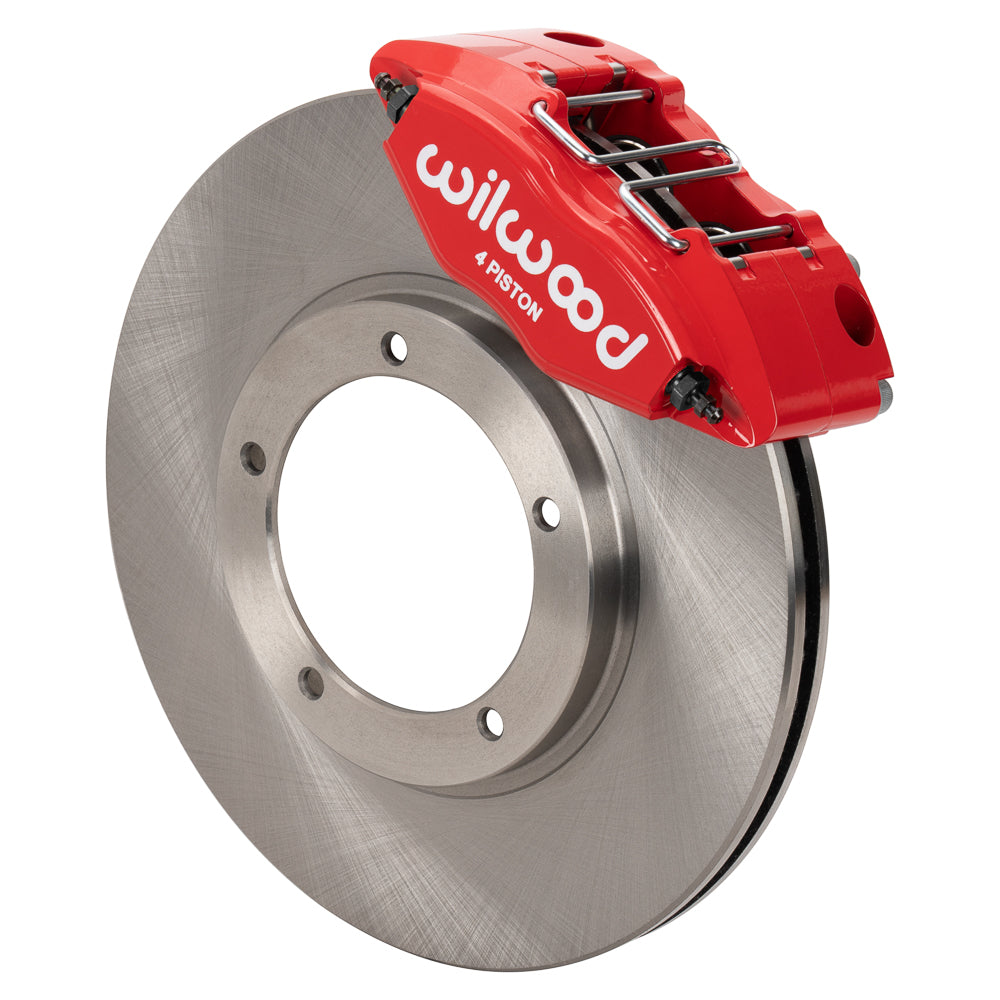

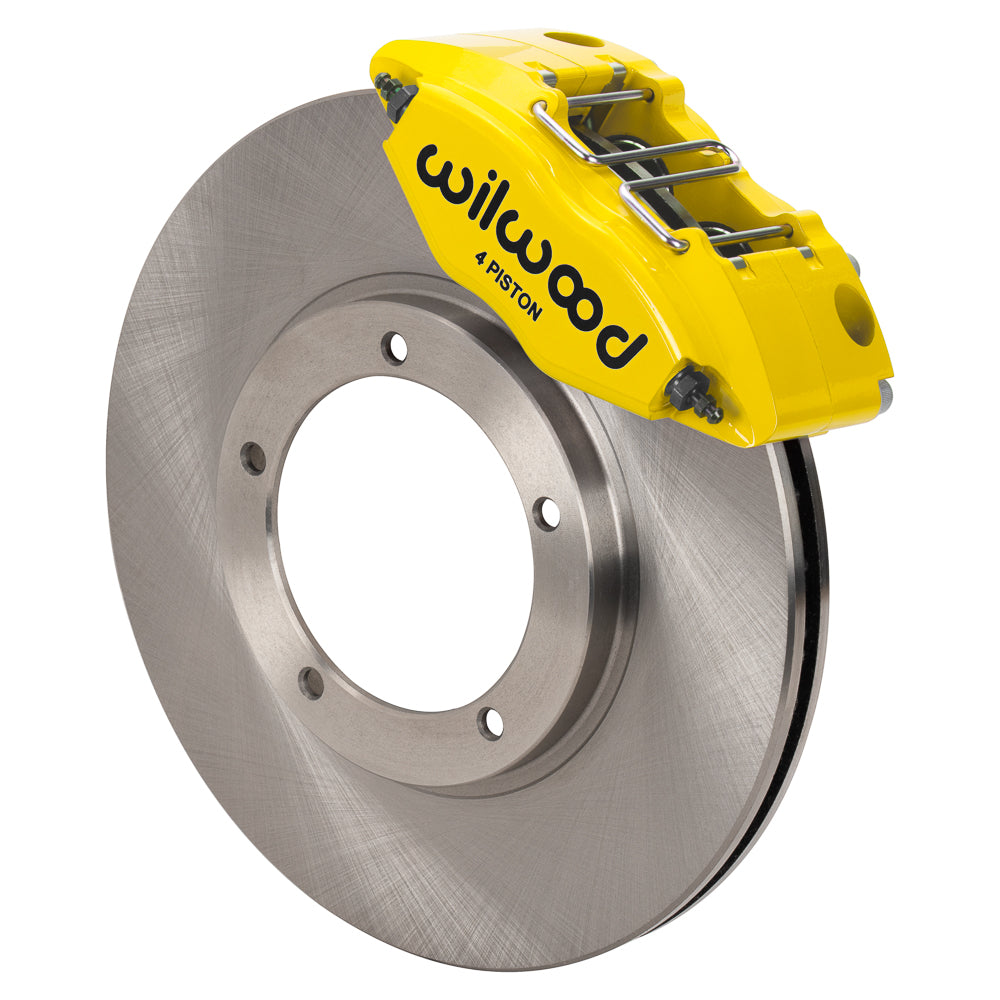

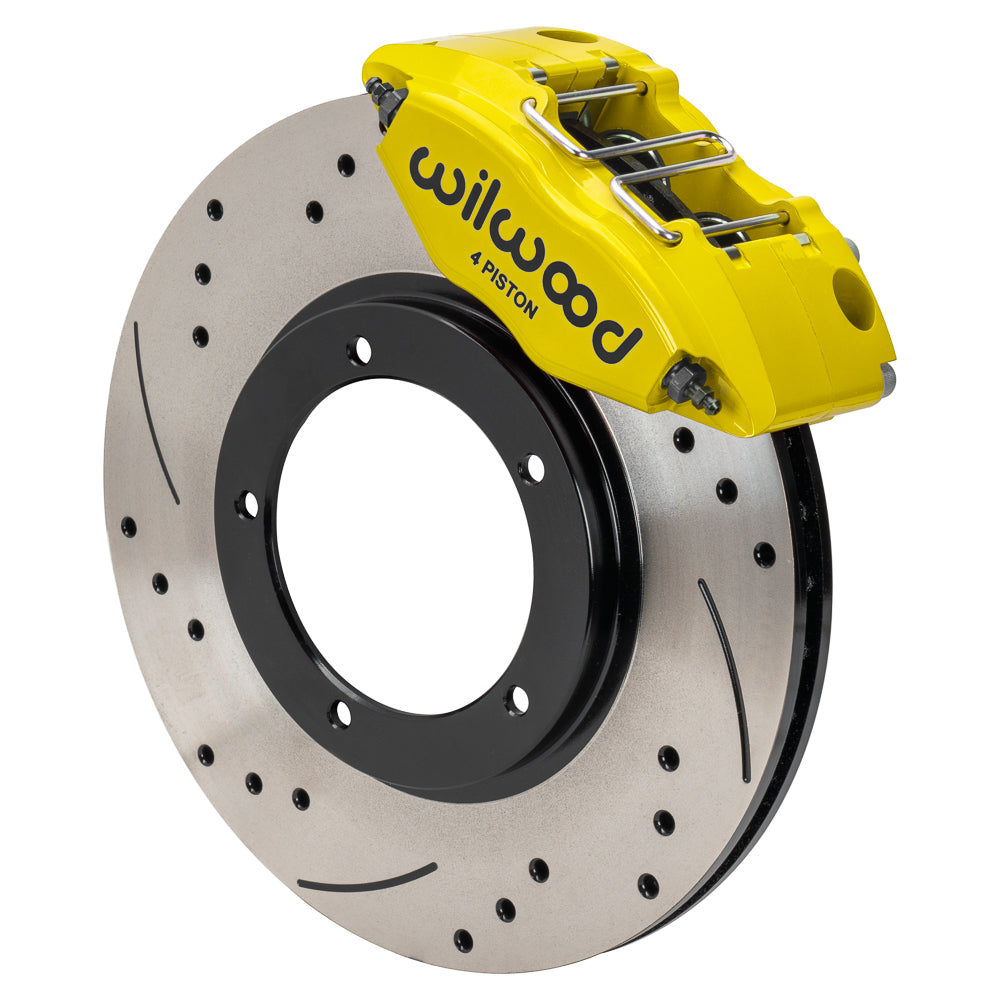

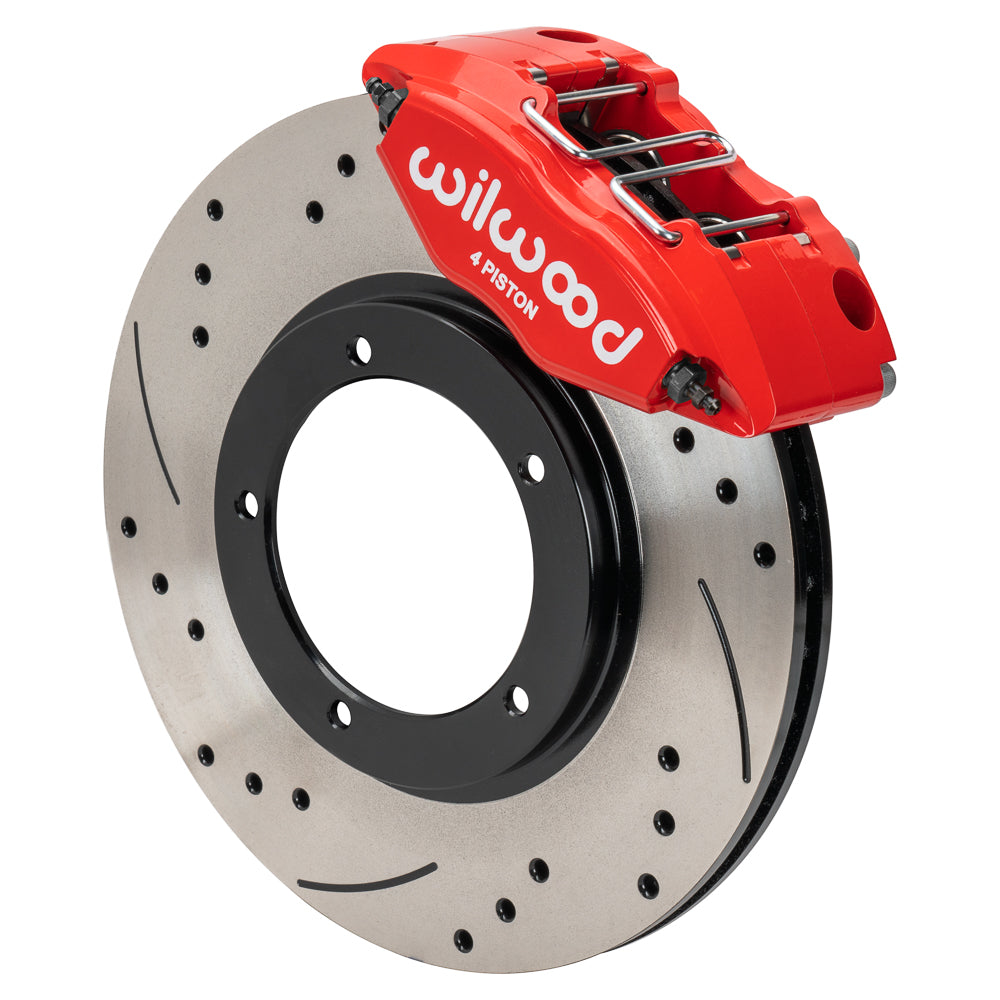

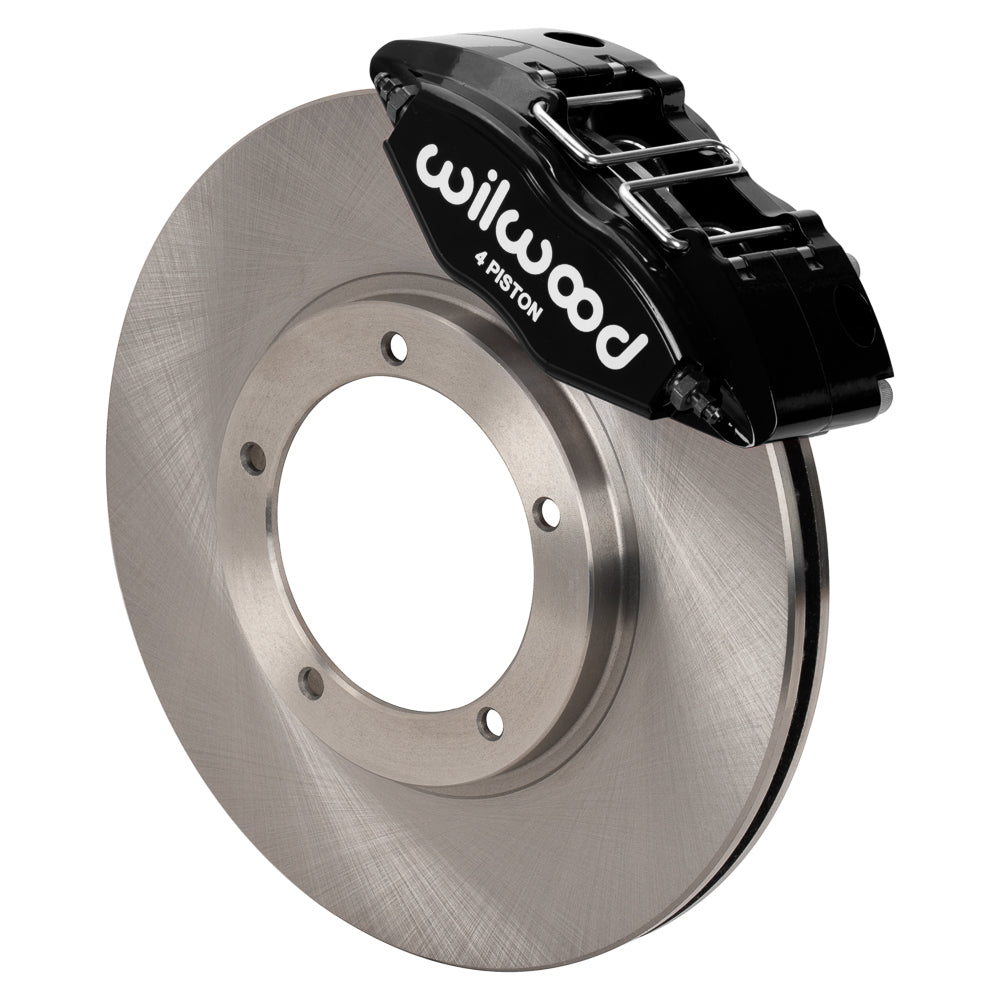

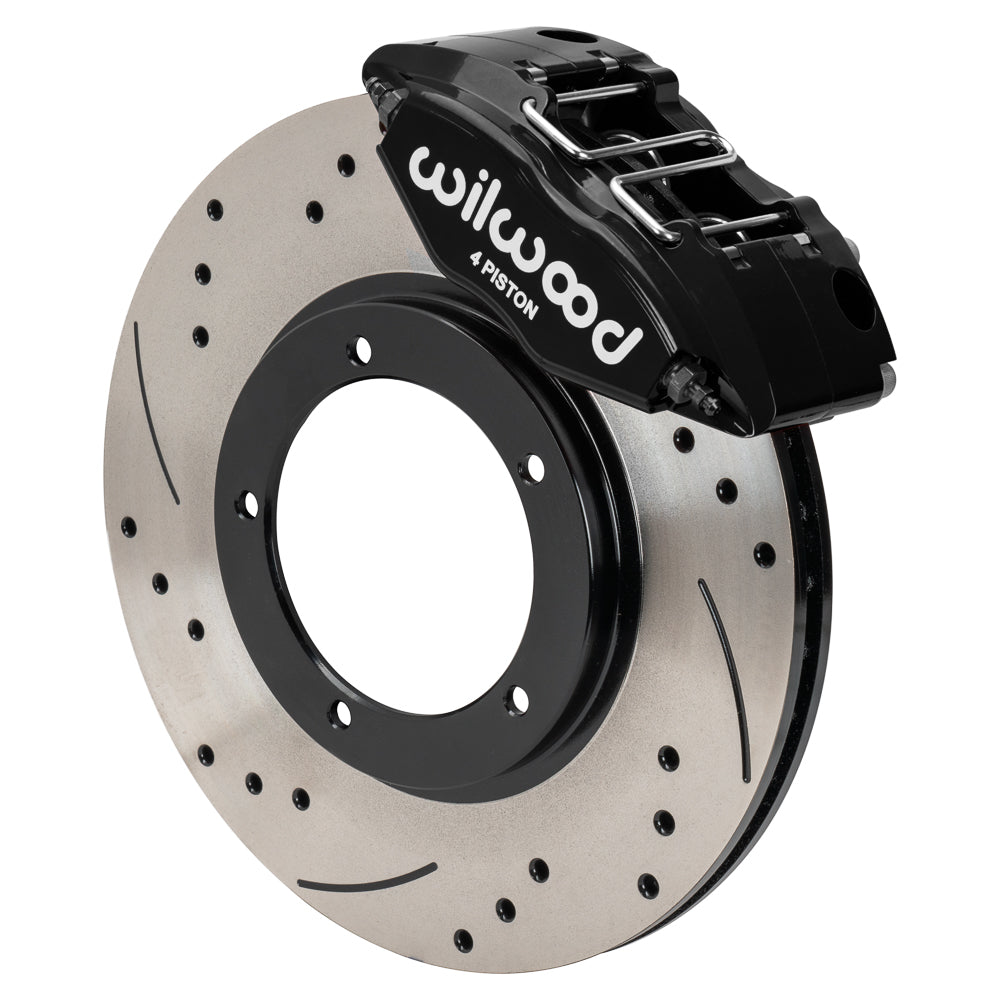

These kits combine Wilwood's radial mount Powerlite four piston calipers with 11.10” (282mm) diameter HP vented or SRP series drilled and slotted e-coat rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. The 4-piston aluminum calipers, and bracket outperform stock parts while weighing less. These kits bolt directly to front struts with 3.00” (76.2mm) spaced mounting tabs without modification.

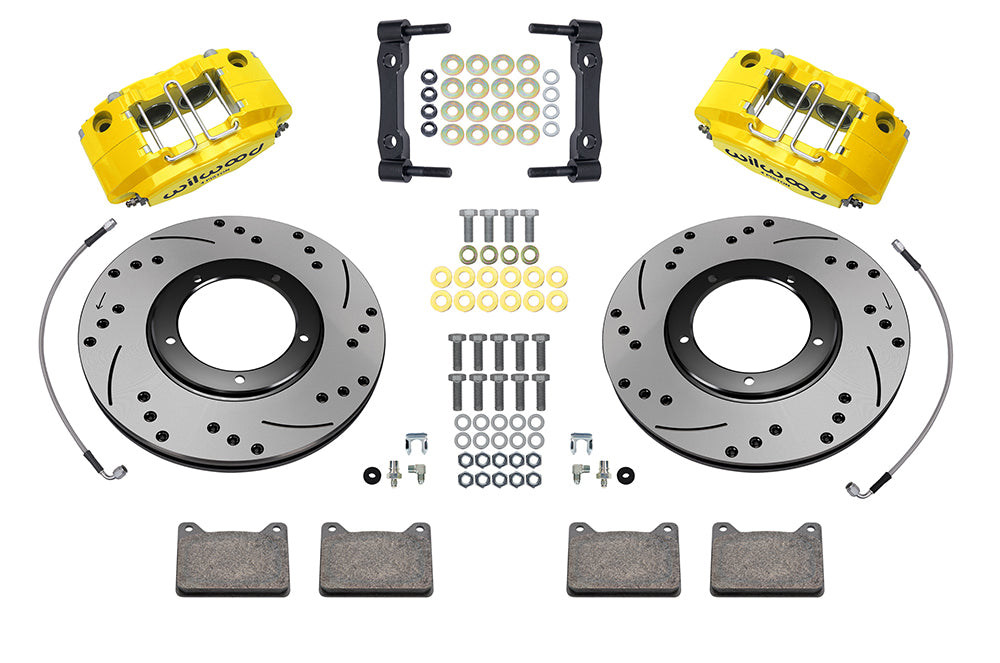

You'll keep your struts and hubs and the kits does the rest. Even the braided stainless soft lines are included! You simply can't beat it...
*This kit is for 3" strut LWB vehicles. If you are uncertain which struts you have on your vehicle, watch the video below and get the education they didn't give you in college...
Product Details
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 4 - Piston |
| Rotor Diameter: | 11.10 |

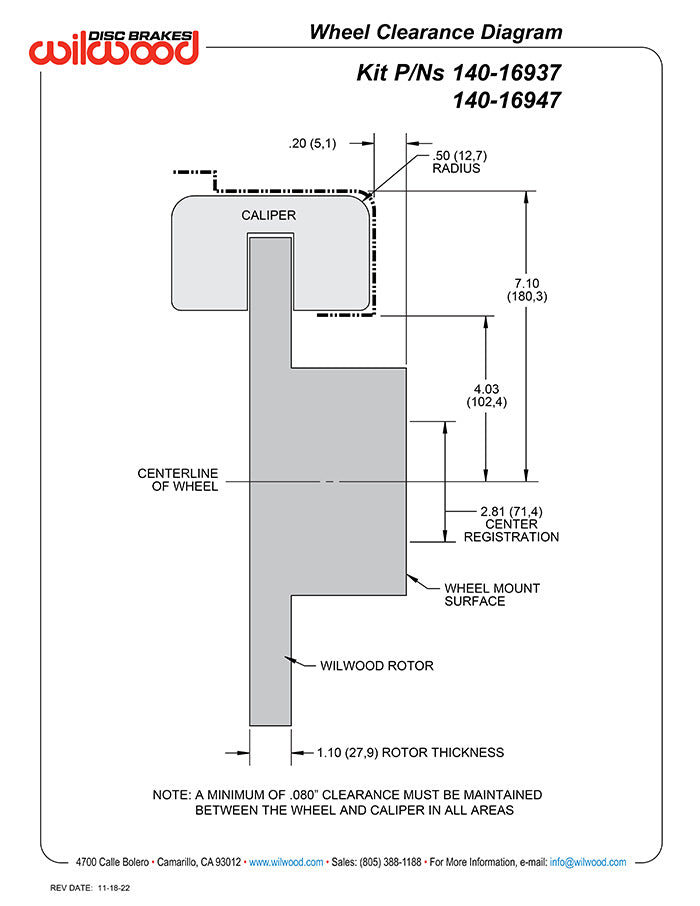

| Min Wheel Diameter Req'd*: | 15 |

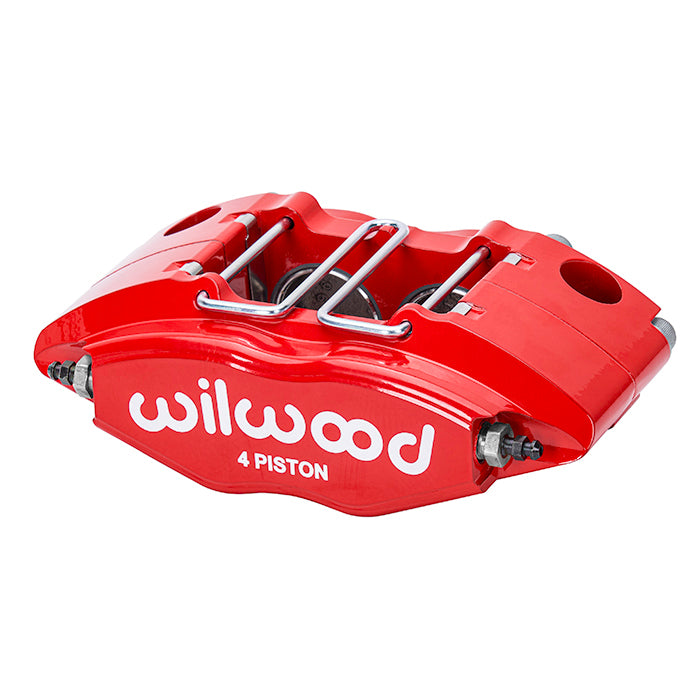

| Calipers | |
|---|---|
| Left Hand - Part No: | 120-8729 |
| Right Hand - Part No: | 120-8729 |
| Type: | Powerlite |
| Finish Color: | Red/Yellow/Black Powder Coat |
| Piston Count: | 4 |
| Piston 1 Bore (in): | 1.38 |
| Piston 2 Bore (in): | 1.38 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7912 |
| Brake Pad Area (In²): | 5 |
| Brake Pad Volume (In³): | 1.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-16694-BK |
| Right Hand - Part No: | 160-16693-BK |

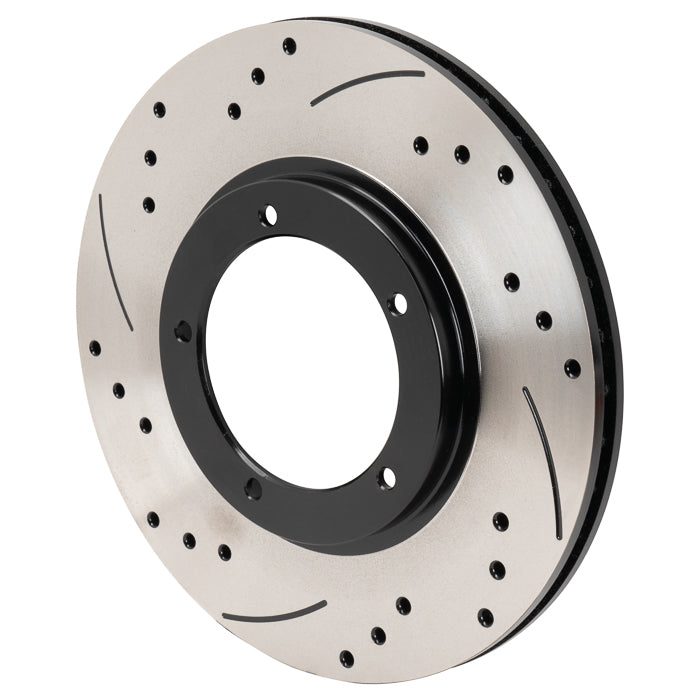

| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 11.10 |
| Width (in): | 0.80 |
| Vane Count: | Vented |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
