Product details

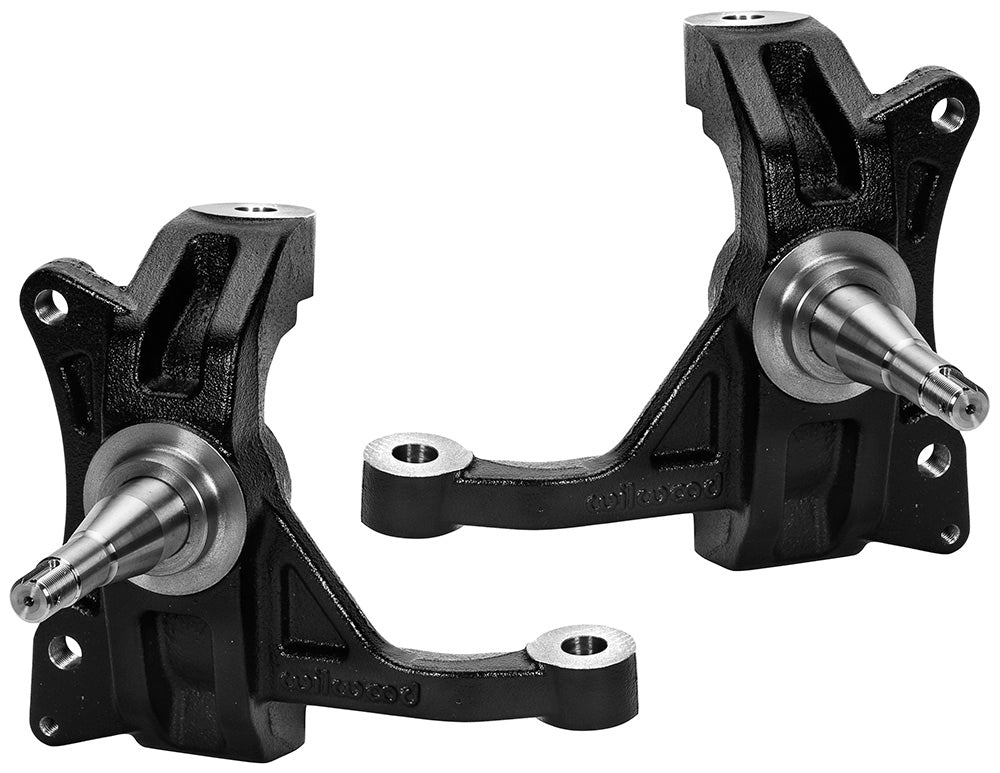

This Wilwood steel spindle pair lowers the specified 1971-1987 Chevrolet C10/GMC C15 two-wheel-drive front suspension by 2.50 inches. Integrated steering arms and conventional bearing snouts distinguish it from the aluminum modular-hub kit. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 831-15932
- Material: Cast Steel
- Finish: Black E-Coat
- Position: Front, left and right
- Lowering dimension: 2.50 inches
- Steering arms: Integrated into cast-steel spindles
- Application: 1971-1987 Chevrolet C10/GMC C15 2WD
- 1971-1972 installation: Requires 1973-1987 ball joints and tie-rod ends
- Hubs: Selected through the compatible Wilwood brake kit
- Listed assembly weight: 36.000 lb
Fitment & Compatibility
Use a brake kit designed for these Wilwood steel spindles and its matching hubs. Trucks from 1971-1972 require the later 1973-1987 C10 ball joints and tie-rod ends. Check wheel pattern and brake clearance against the selected five- or six-lug brake kit.
Manufacturer Documents
With over 20 years of experience, PMB Performance can help work through the dimensions and component requirements. Provide the installed kit information when requesting a fitment check.
