Wilwood Rear Outer Bearing for One-Ton Wide 5 Spindles, 1.968-inch ID

The outer bearing position on the specified one-ton Wide 5 hub uses this Wilwood 1.968-inch-bore cone. This roller assembly is distinct from the smaller-bore outer bearing used on a standard Wide 5 snout. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.

Technical Details

• Manufacturer part number: 370-16725
• Bearing Material: Steel
• Finish: Bare
• Cone bore: 1.968 inches
• Bearing location: Outer, one-ton Wide 5
• Matching race: 370-16723
• Unit: One roller cone
• Documented axle application: One-ton Wide 5 rear hub, including Wilwood 270-16772BD

Fitment & Compatibility

Confirm cup 370-16723 and the one-ton spindle seat before fitting. Both the roller angle and the race geometry must match; a shared race outside diameter does not establish interchange.

Manufacturer Documents

• Wilwood DS719 technical document
• Wilwood product information
• Wilwood product information

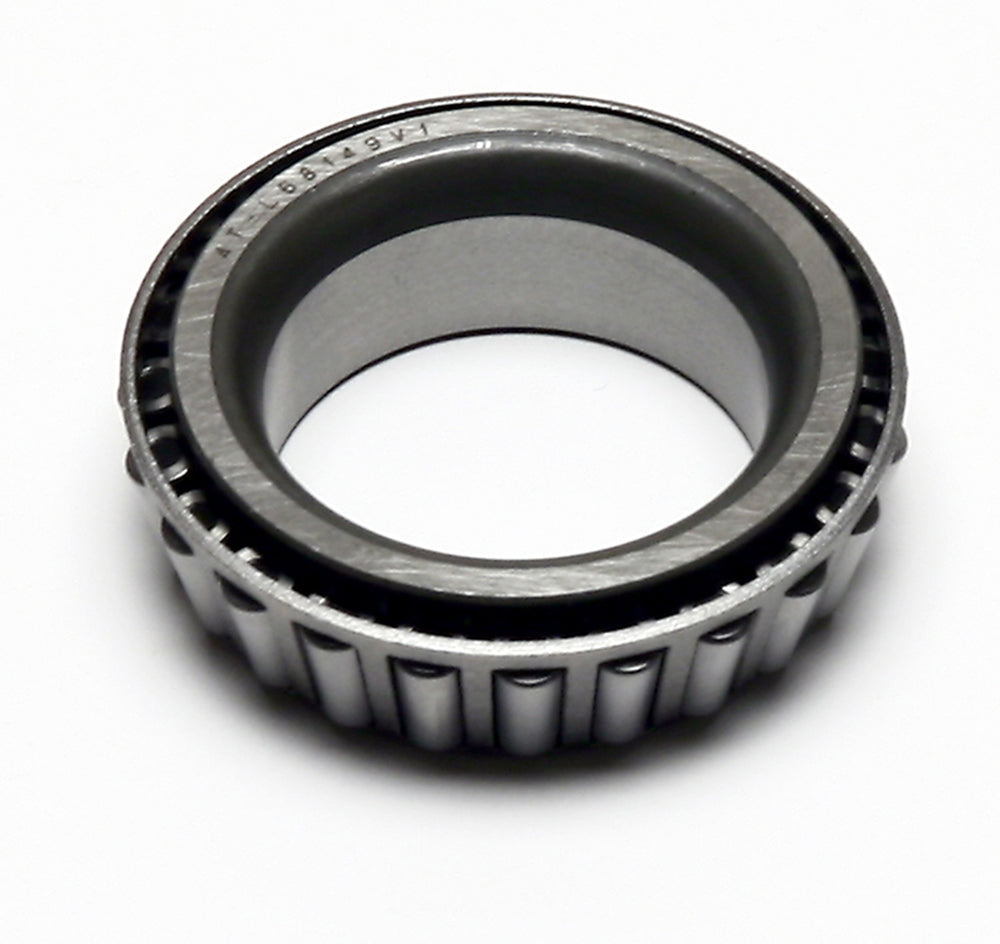

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.

Over 20 years of parts experience stands behind PMB Performance's fitment assistance. Contact us with the component measurements and assembly information needed to check your application.
