Product details
For the outboard bearing in a one-ton Wide 5 hub, Wilwood specifies this steel race with a 3.125-inch outside diameter. A standard Wide 5 cup shares that nominal measurement, making the exact bearing pairing essential. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 370-16723
- Bearing Material: Steel
- Finish: Bare
- Outside diameter of cup: 3.125 inches
- Application: One-ton Wide 5 outer bearing
- Matching cone: 370-16725
- Package: One cup
- Documented axle application: One-ton Wide 5 rear hub, including Wilwood 270-16772BD
Fitment & Compatibility
The matched cone is 370-16725. Identify the one-ton snout and hub before ordering and do not substitute the standard Wide 5 race simply because its outside diameter is the same.
Manufacturer Documents

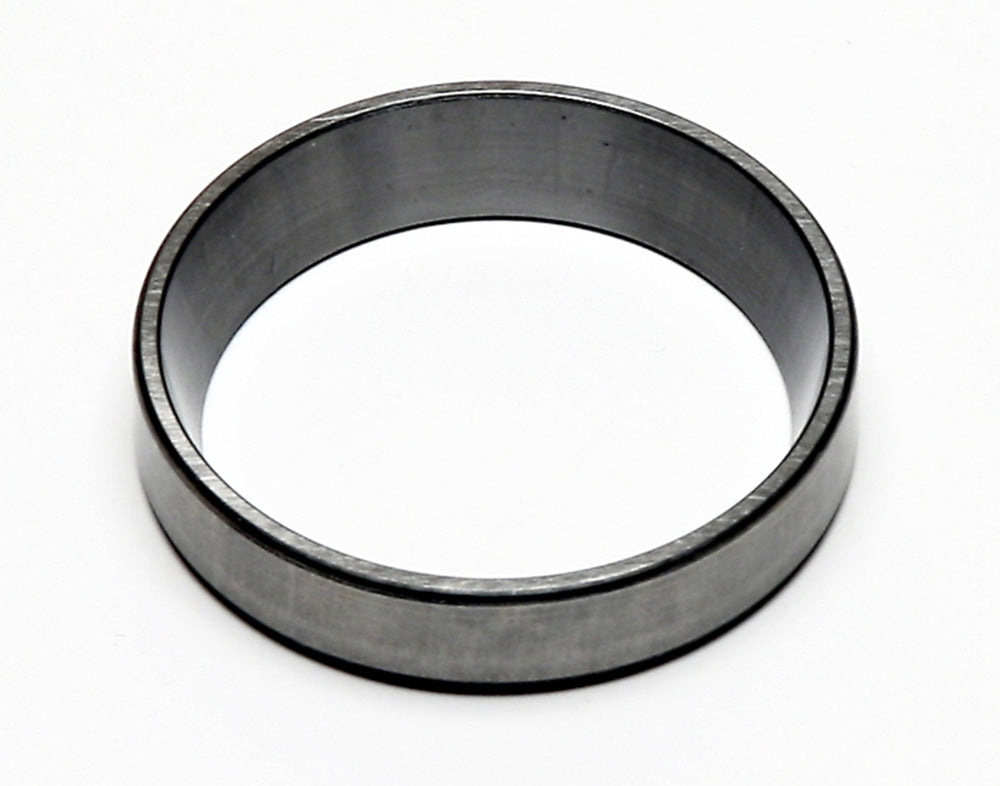

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
With over 20 years of experience, PMB Performance can help check the details that matter before you order. Have the installed assembly and component specifications available.
