Wilwood Rear Inner Bearing Race for One-Ton Wide 5 Hubs, 3.346-inch OD

The one-ton Wide 5 inner bearing arrangement uses this Wilwood 3.346-inch outside-diameter race. It is the separate steel cup in which the inner roller bearing runs, not a standard Wide 5 inner cone or seal. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.

Technical Details

• Manufacturer part number: 370-16722
• Bearing Material: Steel
• Finish: Bare
• Cup OD: 3.346 inches
• Hub family: One-ton Wide 5
• Required cone: 370-16724
• Unit: One inner race
• Documented axle application: One-ton Wide 5 rear hub, including Wilwood 270-16772BD

Fitment & Compatibility

Pair with cone 370-16724 and the specified one-ton hub. Verify the spindle snout and inner race seat before assembly; standard and one-ton Wide 5 bearing components should not be mixed.

Manufacturer Documents

• Wilwood DS719 technical document
• Wilwood product information
• Wilwood product information

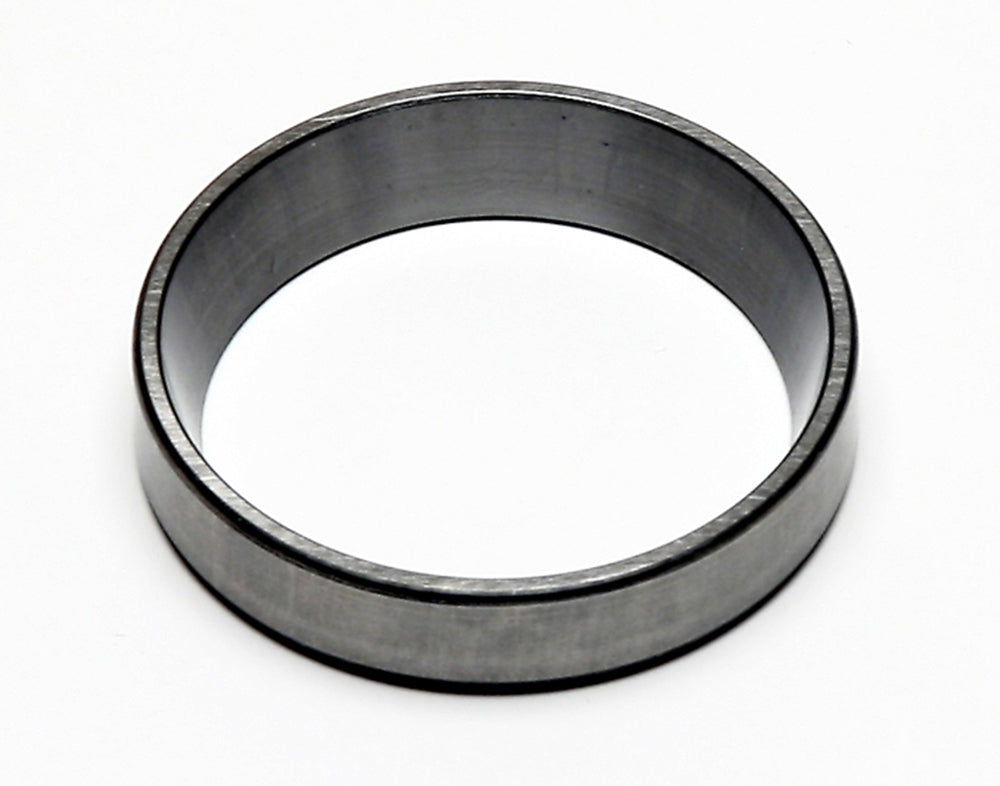

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.

Bring your assembly information to PMB Performance for help confirming this selection. More than 20 years of experience informs our approach to matching parts to the installation.
