Wilwood Front Inner Wheel Bearing Cone, 1.190-Inch Nominal Bore

A nominal 1.190-inch spindle bore identifies this Wilwood inner tapered roller bearing. It is the cone used with the designated 2.500-inch outside-diameter cup, rather than a bearing and seal package. Wilwood Engineering designs and manufactures complete disc brake systems as well as calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Based in Camarillo, California, it was founded by Bill Wood in 1977. The range serves motorsport, street-performance, and specialized applications, requiring each part to be matched to the system in which it operates.

Technical Details

• Manufacturer part number: 370-1561
• Bearing Material: Steel
• Finish: Bare
• Cone bore: 1.190 inches nominal; 1.1895-inch reference
• Reference: 15118
• Mating race: 370-1560
• Quantity: One cone

Fitment & Compatibility

Match race 370-1560 and check the hub parts list. The dimensional reference gives a 1.1895-inch cone bore, so use the actual bearing specification when checking the spindle.

Manufacturer Documents

• Wilwood DS719 technical document
• Wilwood product information

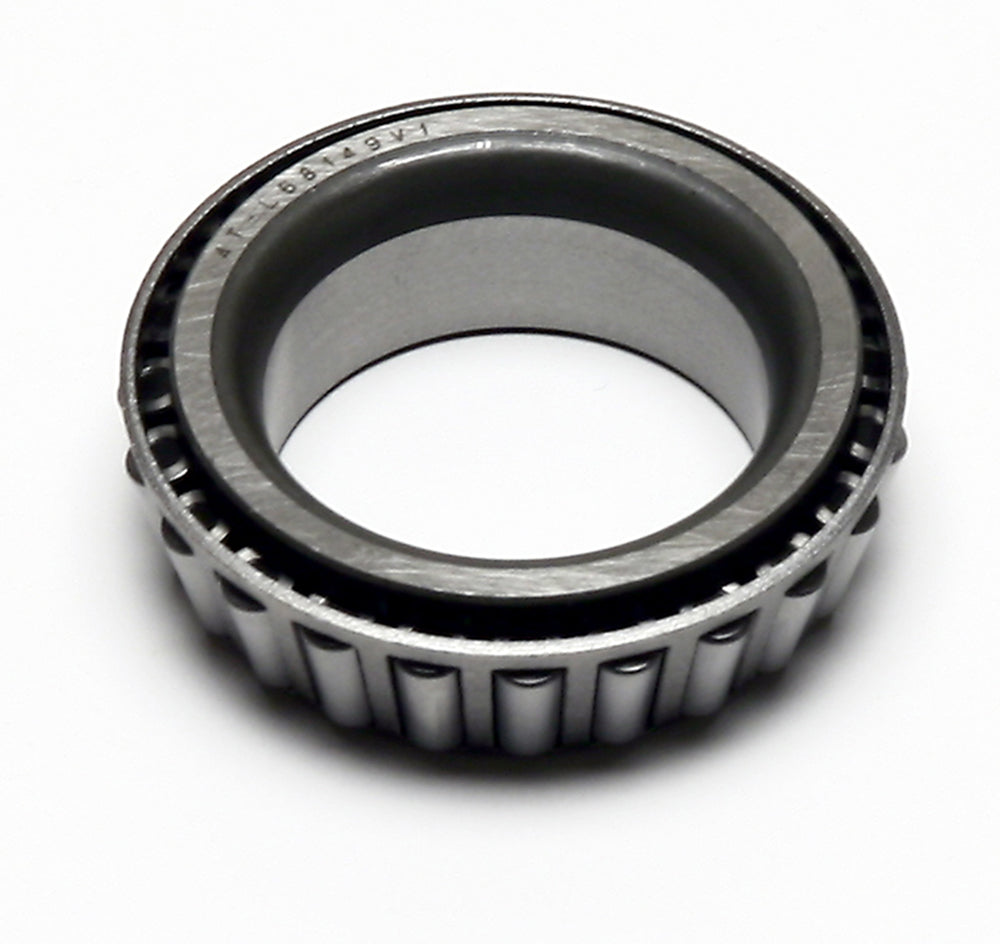

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
