Product details
This Wilwood A18 inner cone supplies the roller assembly for the specified Ford F-150 conversion hub, using a 1.4961-inch reference spindle bore. The bare-steel bearing is a service component, not a complete inner-and-outer bearing kit. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 370-12831
- Bearing Material: Steel
- Finish: Bare
- Cone inside diameter: 1.4961 inches reference; 1.496 inches nominal
- Bearing set: A18
- Reference: 4T-JL69349
- Matching race: 370-12832
- Supplied: One cone
- Documented hub: Wilwood 270-12825
Fitment & Compatibility
Use race 370-12832 with the A18 arrangement listed for hub 270-12825 in DS-719. Confirm the Ford F-150 conversion kit and installed spindle; the model name alone does not identify the correct hub bearing.
Manufacturer Documents

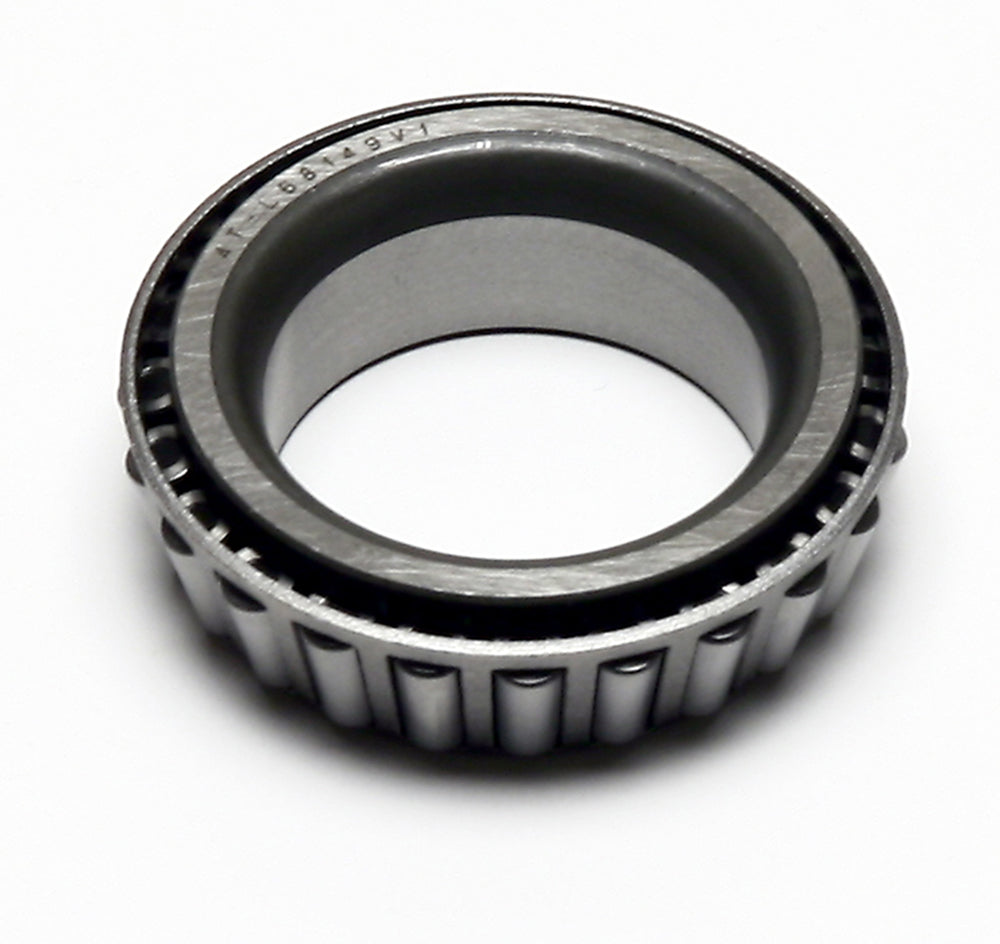

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
