Product details
The inner race for Wilwood's specified Sunbeam Tiger hat-mount hub is this 2.250-inch steel cup. Its outside diameter matches another Wilwood race, but the Tiger hub uses a different inner bearing arrangement. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 370-11758
- Bearing Material: Steel
- Finish: Bare
- Cup outside diameter: 2.250 inches
- Reference: 4T-1922
- Matching cone: 370-1236
- Verified hub: 270-11746
- Quantity: One race
Fitment & Compatibility
Use with hub 270-11746 and inner cone 370-1236, identified by Wilwood as the A21 arrangement. Confirm the installed conversion hub, not just the Sunbeam Tiger model name, before replacing the race.
Manufacturer Documents

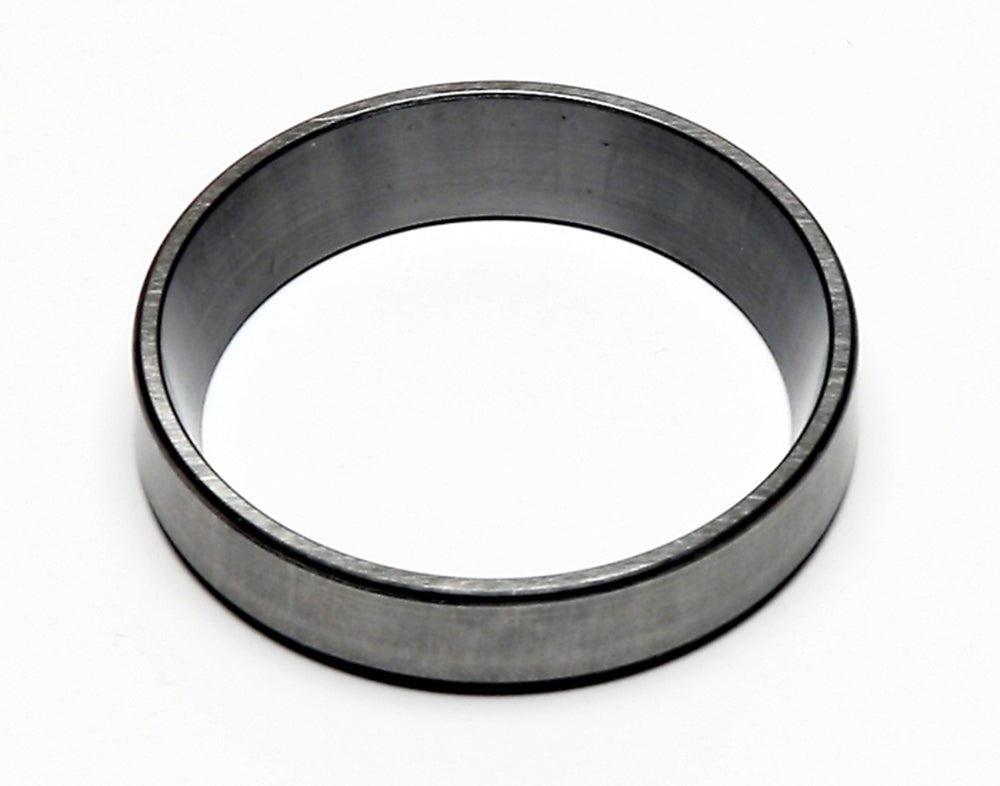

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
PMB Performance brings more than 20 years of parts and fitment experience. Contact us with the details of your existing assembly for help confirming the correct component.
