Product details

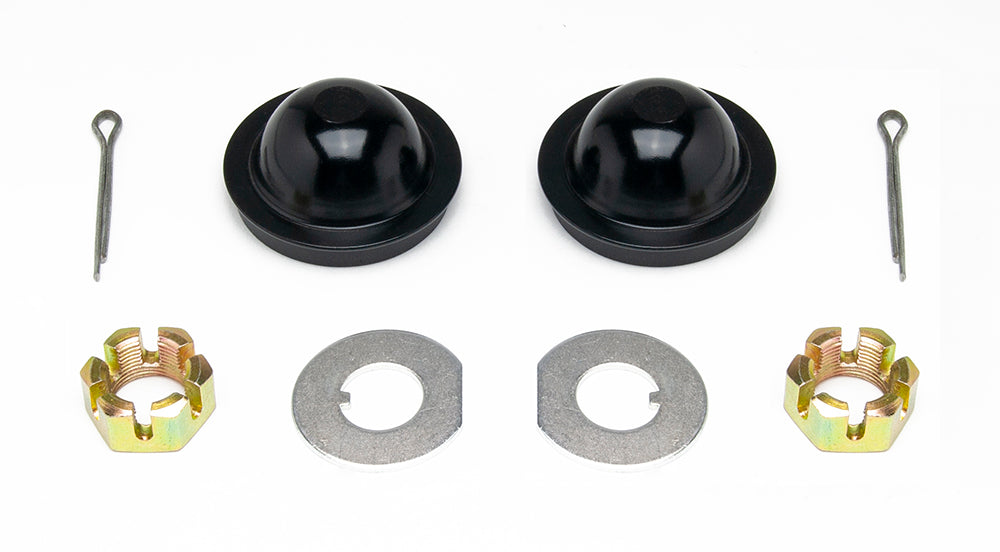

A dust cap accompanies the spindle nut, locking components and cotter pin in this Wilwood kit for the specified C10 drop-spindle brake assembly. It services the hub retention and closure components; wheel bearings and grease seals are not described as included. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 370-10763
- Finish: Plated
- Supplied: Spindle nut, lock washer, cotter pin and dust cap
- Configuration: Specified Wilwood C10 drop-spindle brake kits
- Material: Steel
Fitment & Compatibility
Confirm the installed drop spindle, hub and cap seat against the Wilwood brake-kit instructions. The manufacturer also lists selected Pinto/Mustang II and Granada spindle pins; the actual spindle and hub-retention arrangement determine compatibility.
Manufacturer Documents
PMB Performance can help review the mating parts before you place an order. Our team draws on over 20 years of experience with parts and application details.
