Product details
The nominal 0.866-inch bore separates this Wilwood outer cone from the smaller-bore alternative used with the same listed race. Wilwood identifies A12 and A16 bearing sets for this steel tapered roller component. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 370-0882
- Bearing Material: Steel
- Finish: Bare
- Nominal cone bore: 0.866 inch
- Bearing sets: A12 / A16
- Reference: LM12749
- A12 matching race: 370-0881
- Supplied: One outer cone
- Reference bore: 0.8656 inch (DS-719)
Fitment & Compatibility
For the A12 arrangement, use race 370-0881. Wilwood also lists this cone for A16, but that set requires separate cup verification; do not assume the A12 race applies. Confirm the installed hub and spindle dimensions.
Manufacturer Documents

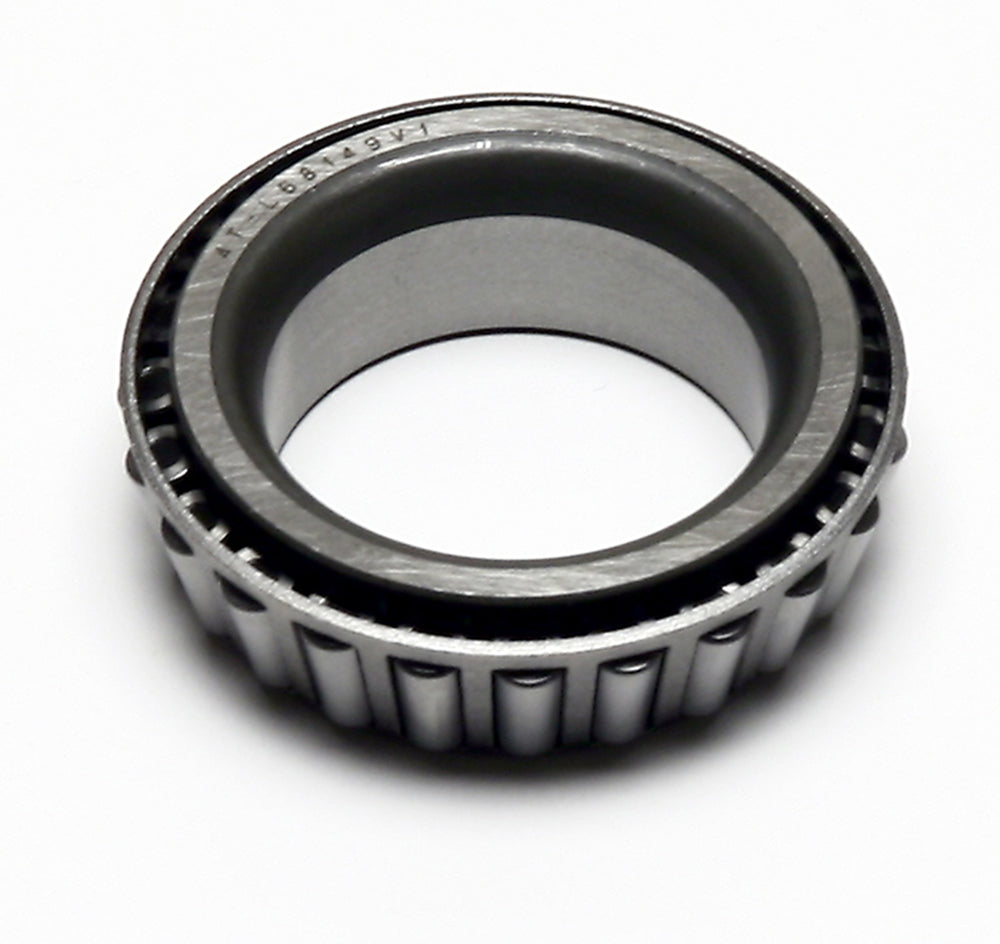

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
