Product details
At the outer end of the specified Wide 5 hub, this Wilwood tapered roller bearing runs in a separate matching cup. The cone has a 1.813-inch inside diameter and is not the larger-bore outer bearing used in the one-ton arrangement. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 370-0432
- Bearing Material: Steel
- Finish: Bare
- Cone bore: 1.813 inches
- Companion cup: 370-0315
- Quantity supplied: One bearing cone
Fitment & Compatibility
Confirm a 370-0315 outer race and the spindle bearing-seat size before installation. A shared wheel bolt pattern does not establish bearing interchange, and the cup and cone must belong to the same approved set.
Manufacturer Documents
- Wilwood DS719 technical document
- Wilwood product information
- Wilwood product information
- Wilwood product information

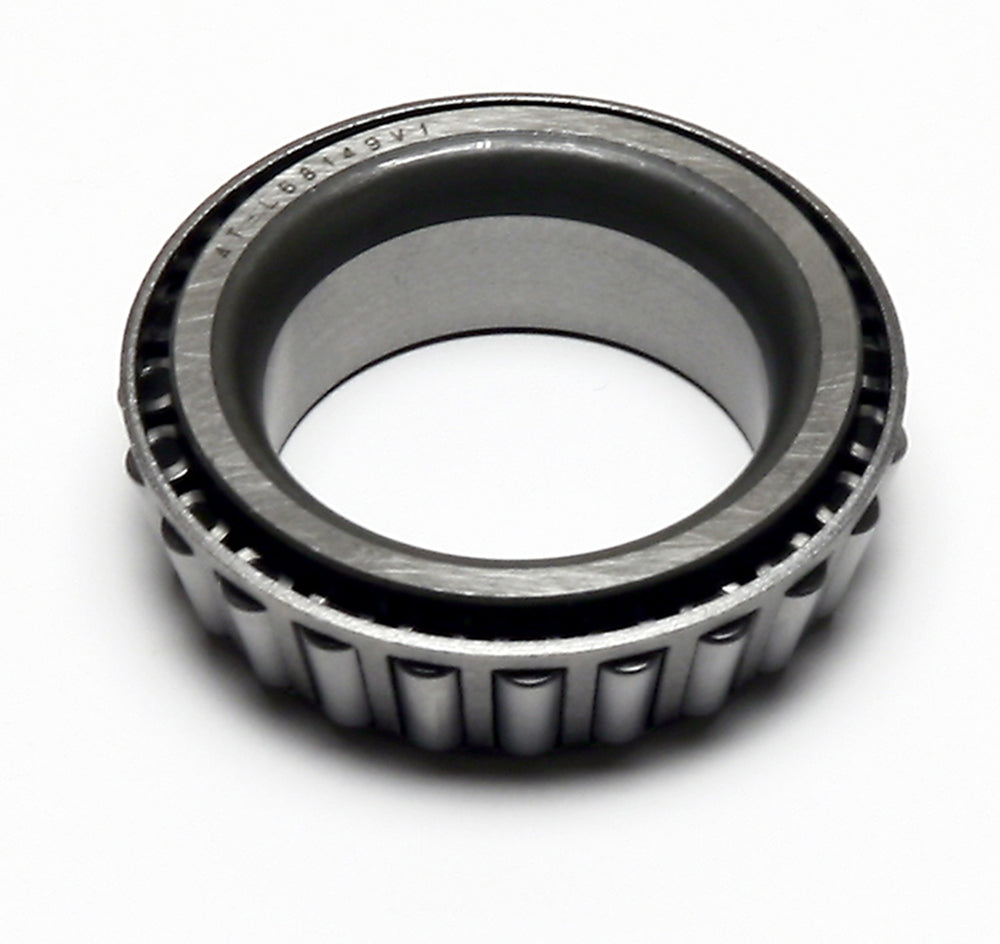

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
PMB Performance can help review the mating parts before you place an order. Our team draws on over 20 years of experience with parts and application details.
