Product details
This Wilwood outer bearing race seats in the compatible Wide 5 hub and provides the running surface for its tapered rollers. Its 3.125-inch outside diameter identifies the cup, not the spindle bore or the diameter of the complete bearing. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 370-0315
- Bearing Material: Steel
- Finish: Bare
- Cup outside diameter: 3.125 inches
- Matching cone: 370-0432
- Supplied: One outer bearing race
Fitment & Compatibility
Use with outer bearing cone 370-0432 and the matching Wide 5 hub. Check the cup profile and bearing set as well as diameter; the one-ton Wide 5 outer race shares a nominal outside diameter but is a different part.
Manufacturer Documents
- Wilwood DS719 technical document
- Wilwood product information
- Wilwood product information
- Wilwood product information

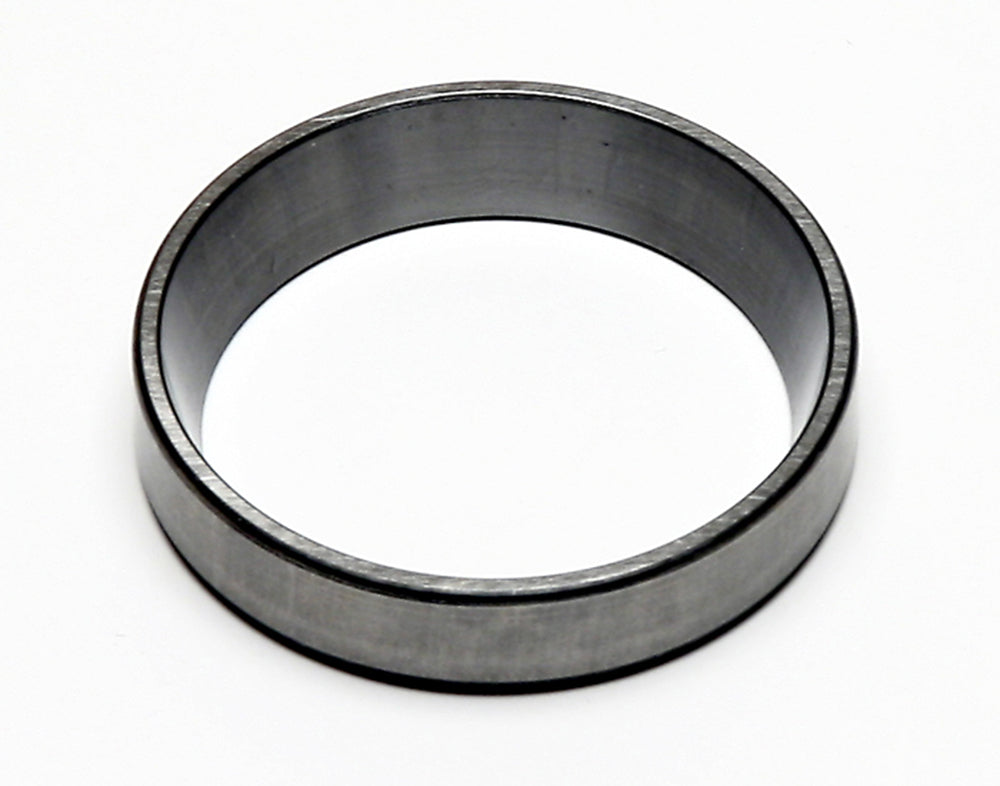

Representative product-family image. Confirm the ordered bearing or kit using the part number and specifications.
