Product details

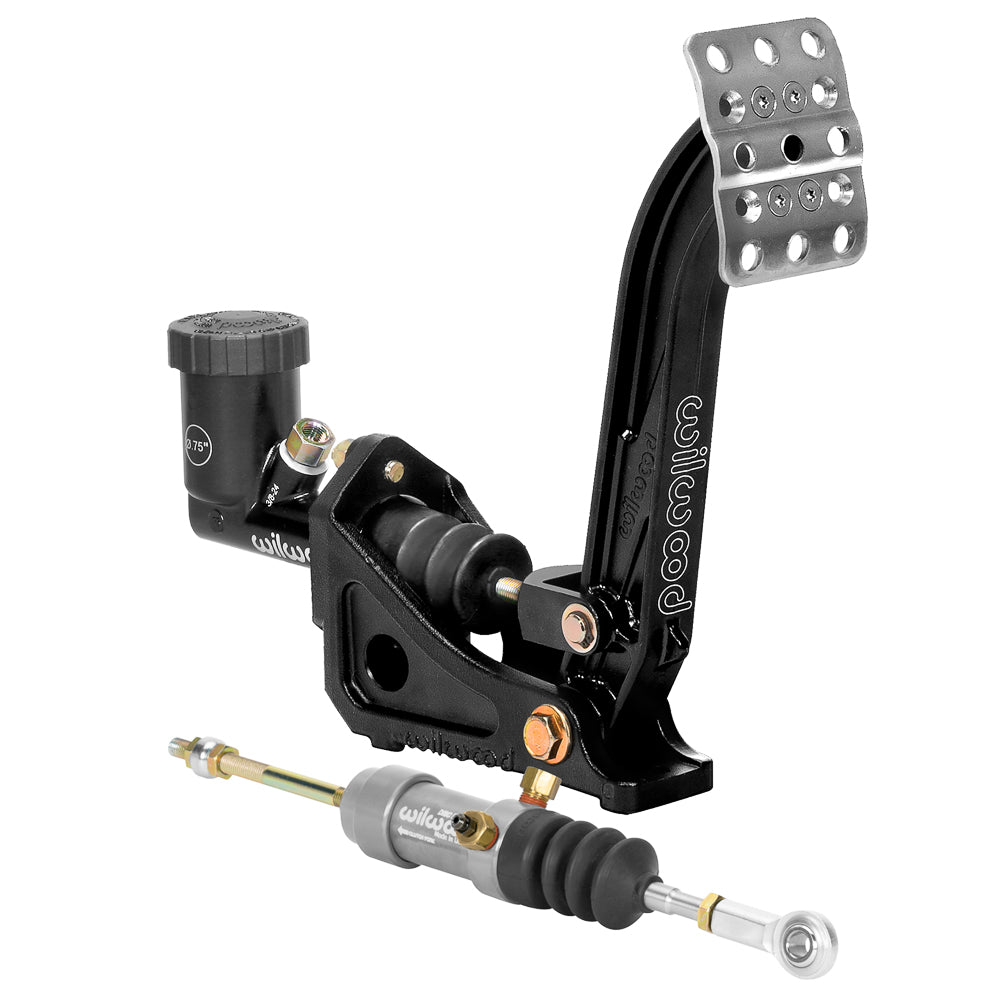

This Wilwood hydraulic clutch kit combines a floor-mounted forged pedal with a 3/4-inch-bore integral-reservoir master cylinder and a universal pull-type slave. The 6:1 pedal has a 9.63-inch arm and a laterally adjustable footpad for arranging the driver controls. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 341-15169
- Material: Aluminum
- Finish: Black E-coat
- Pedal ratio: 6:1
- Pedal length: 9.63 inches
- Master cylinder: 260-1304; 3/4-inch bore; integral reservoir
- Slave cylinder: 260-1333; pull type
- Mounting: Floor, forward facing
- Weight: 4.600 lb
- Mount length: 10.42 in
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Includes master cylinder 260-1304 and slave cylinder 260-1333. Confirm floor mounting, pull-type clutch linkage, required release travel, and hydraulic plumbing for the vehicle. This is a custom conversion kit, not a vehicle-specific bolt-in clutch system.
With over 20 years of experience, PMB Performance can help check the details that matter before you order. Have the installed assembly and component specifications available.
