Product details

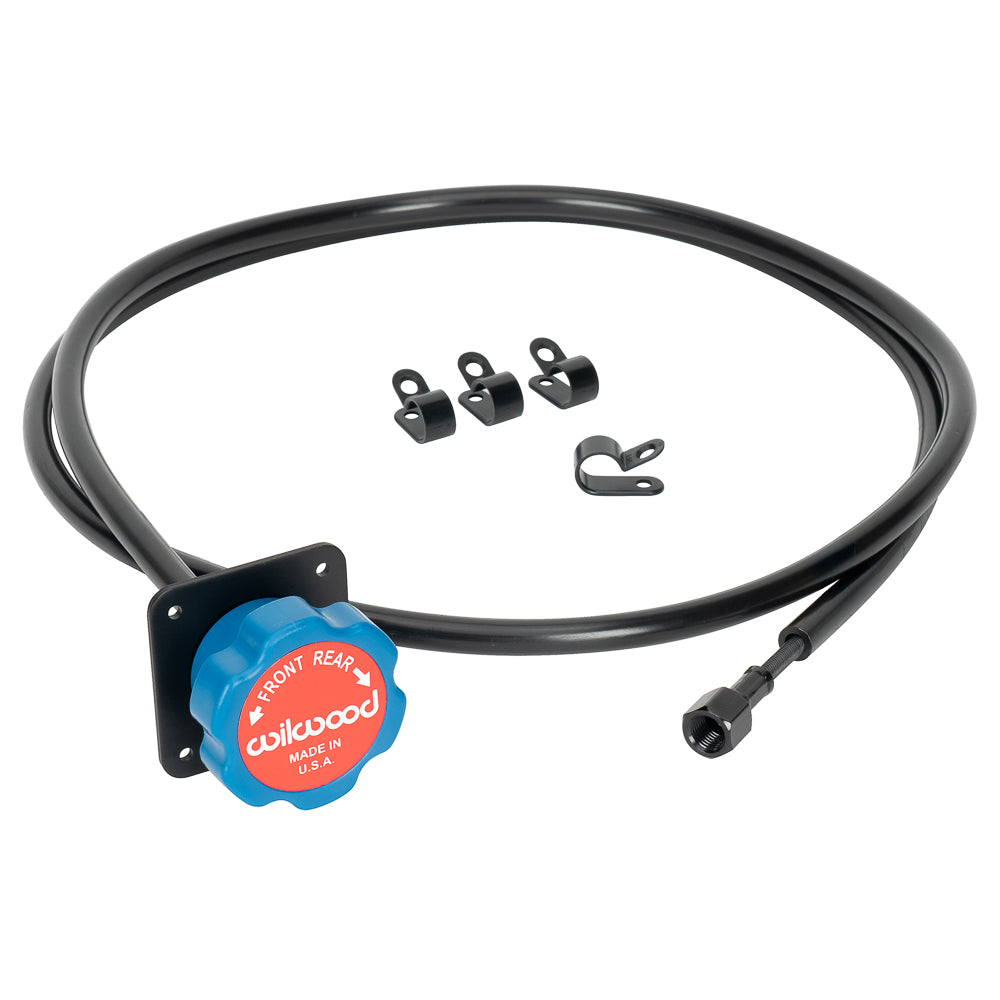

The Wilwood remote brake-bias adjuster turns a compatible mechanical balance bar from an accessible cockpit control. A blue knob provides bidirectional detent feedback, and the five-foot cable and housing can be shortened to suit the installation. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-4990
- Material: Plastic / Steel
- Finish: Blue / Black
- Cable length: 5 feet; can be shortened for installation
- Connection: 3/8-24
- Controls: Blue detent knob; two directional label faces
- Weight: 1.000 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-264 · Wilwood product specifications
Fitment & Compatibility
For balance bars with the correct 3/8-24 adjuster connection. Check the attachment thread, cable bends, knob position, and end-to-end motion before use. Two label faces support either front-to-rear or rear-to-front adjustment direction; this is not a hydraulic proportioning valve.
Bring your assembly information to PMB Performance for help confirming this selection. More than 20 years of experience informs our approach to matching parts to the installation.
