Product details

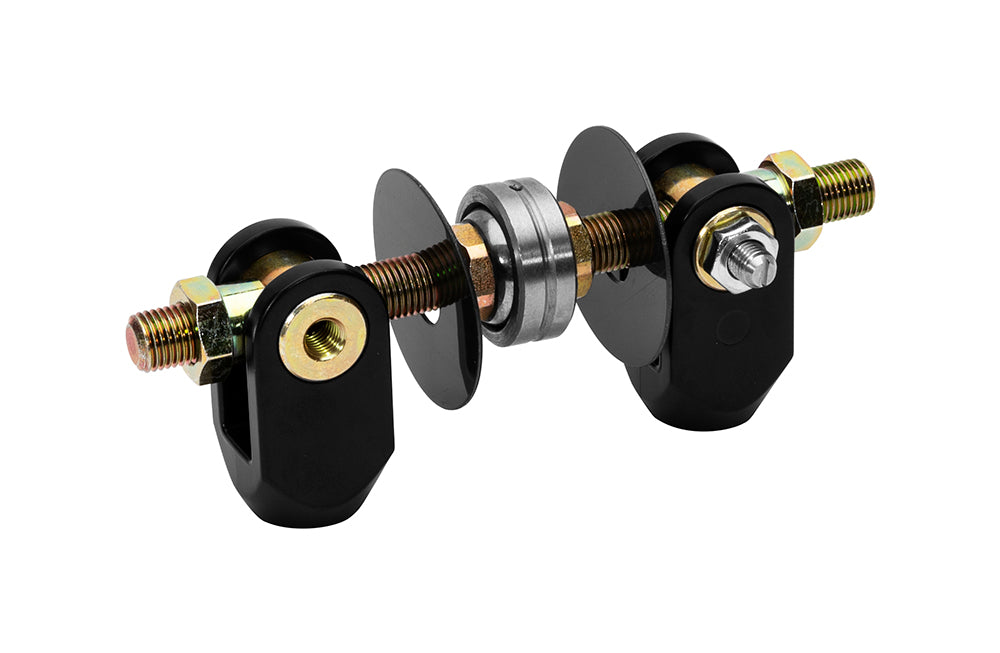

This Wilwood replacement balance-bar assembly renews the standard pin-and-clevis mechanism in a compatible brake pedal or 60-degree remote master-cylinder mount. Its detent indexes each full turn and the included jam nut can lock the selected bias setting. Wilwood Engineering designs and manufactures complete disc brake systems as well as calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Based in Camarillo, California, it was founded by Bill Wood in 1977. The range serves motorsport, street-performance, and specialized applications, requiring each part to be matched to the system in which it operates.
Technical Details
- Manufacturer part number: 340-4745
- Material: Steel
- Application: Standard balance-bar pedals and matching 60-degree remote mounts
- Adjustment: Positive detent each full turn
- Housing tube: Not included
- Weight: 0.500 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Use in a matching standard Wilwood balance-bar assembly, not as a Tru-Bar replacement. This version omits the weld-in tube used for fabricating a new steel pedal. Inspect the existing bearing housing, clevis spacing, and master-cylinder alignment before installation.
PMB Performance has over 20 years of experience working through parts and fitment questions. Let us help compare the component with your planned installation before purchase.
