Product details

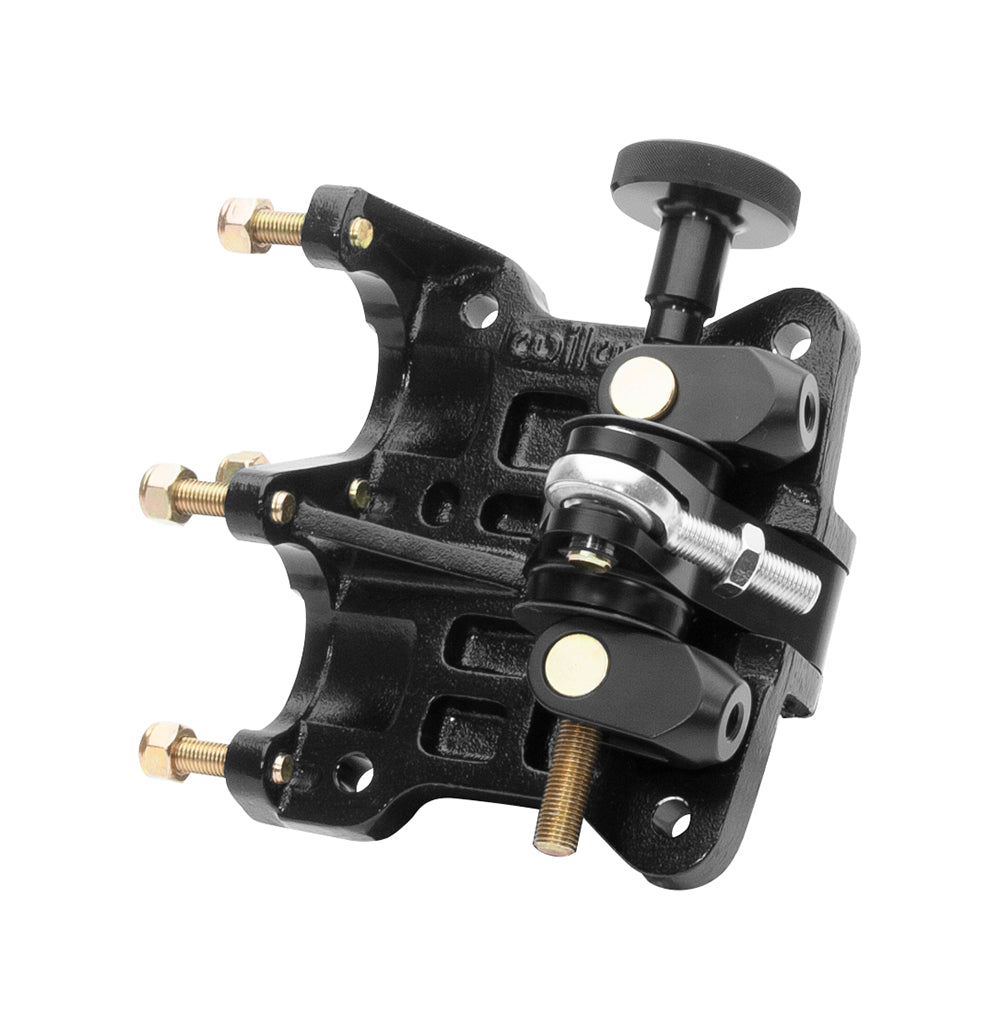

This Wilwood 60-degree remote mount packages two brake master cylinders away from the foot pedal and operates them through a standard balance bar. The pivot mechanism adds approximately 1.5:1 average leverage to the connected pedal ratio, while the staggered cylinders use remote fluid supplies. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-4630
- Material: Aluminum
- Finish: Black E-coat
- Cylinder arrangement: Remote mounting; 60-degree stagger
- Average leverage multiplier: Approximately 1.5:1
- Pivot arm length: 2.55 inches
- Balance type: Standard detent bar
- Not included: Foot pedal and remote-fill master cylinders
- Weight: 2.400 lb
- Mount length: 1.74 in
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-968 · Wilwood product specifications
Fitment & Compatibility
Remote-fill master cylinders and the foot pedal are not included. Verify the connecting linkage, full-stroke clearance, reservoir locations, and total effective leverage. The unit incorporates a detent balance adjustment and can use the matching remote adjuster cable.
