Product details

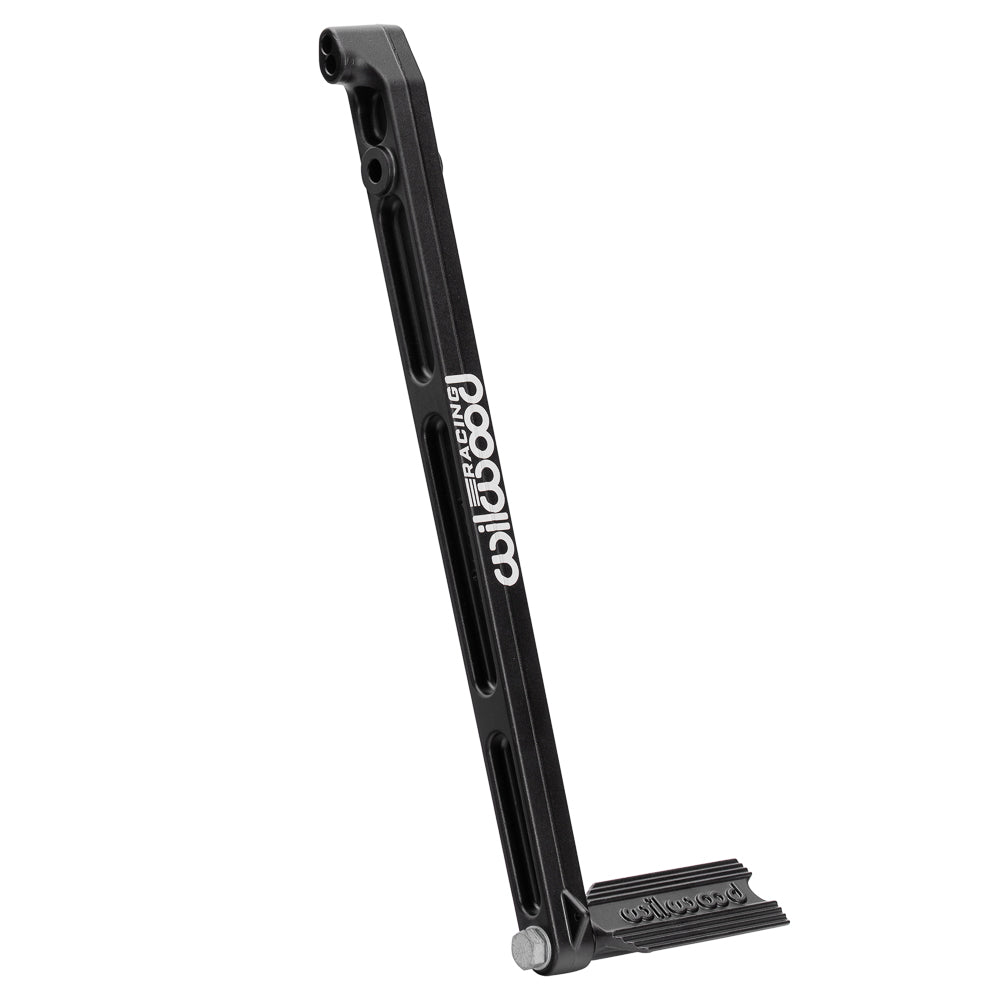

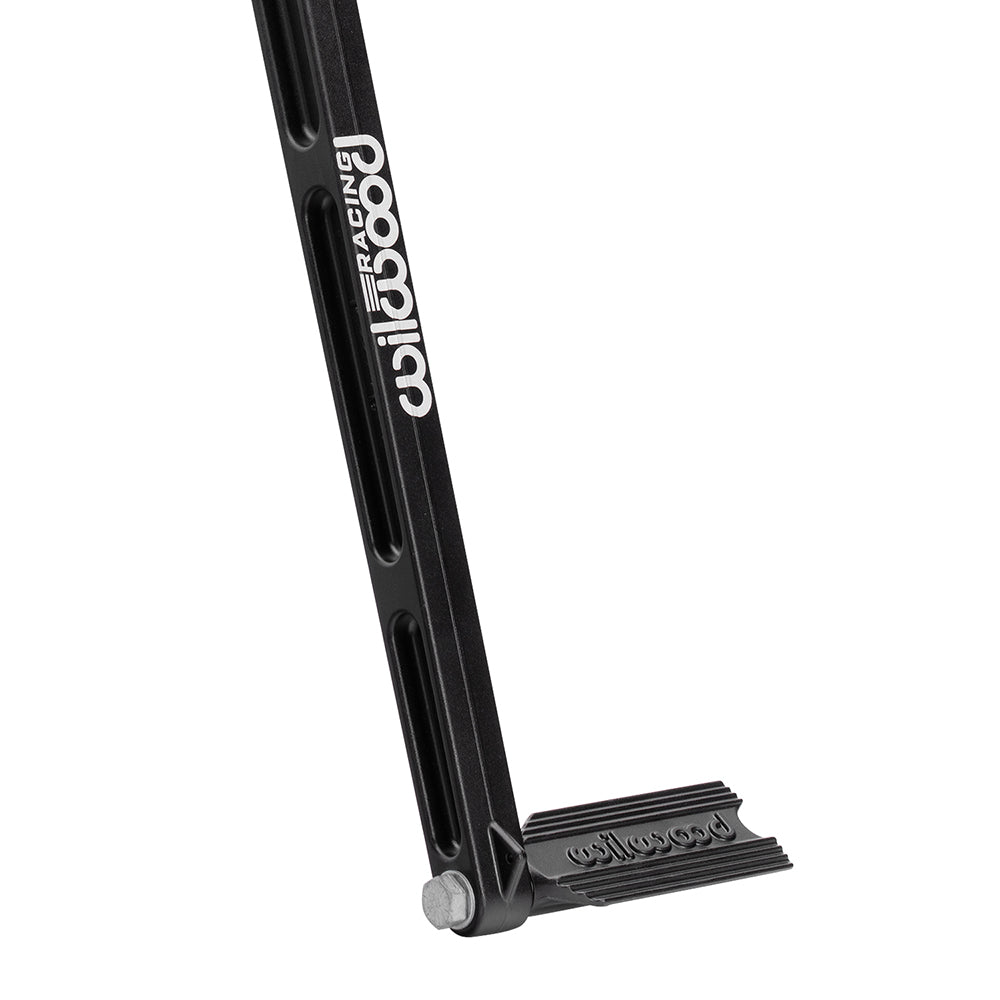

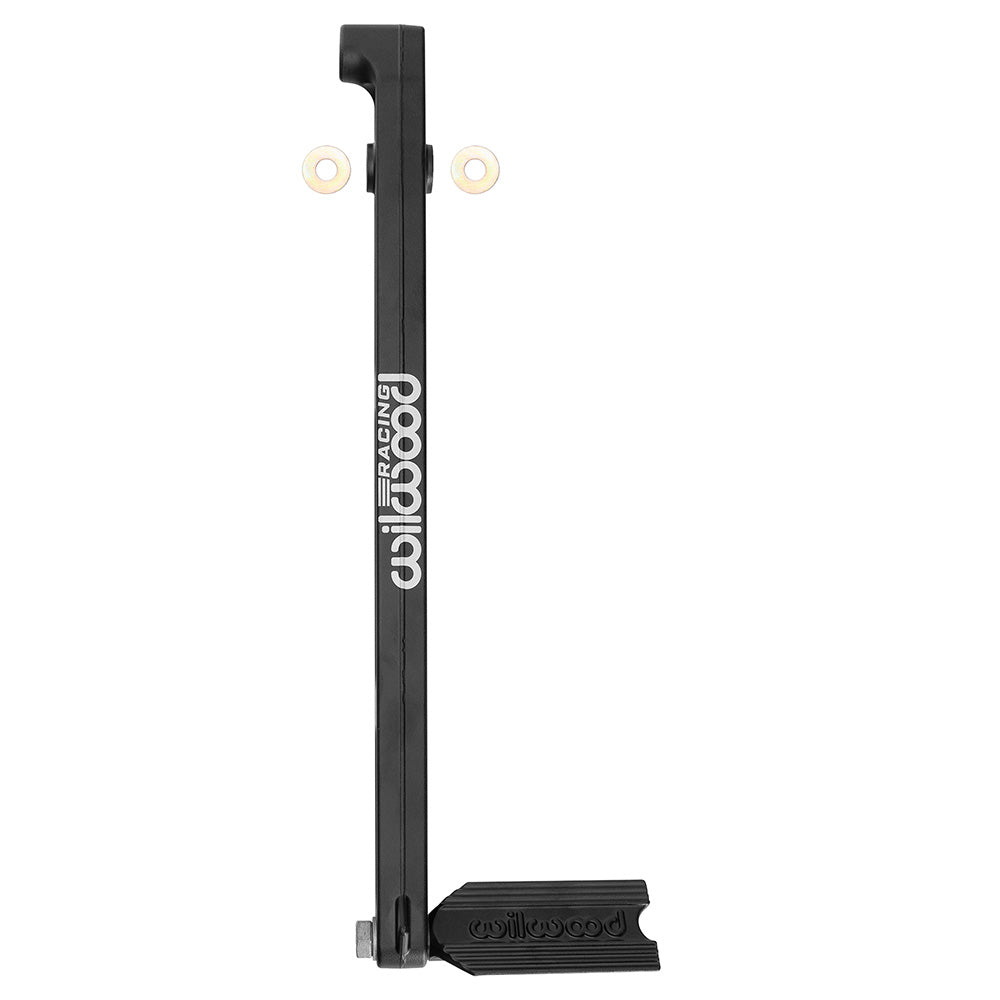

The Wilwood XRZ sprint-car brake pedal provides two leverage positions for matching pedal effort to the race-car brake system. Its adjustable machined footplate and dedicated return-spring tab address foot position and return linkage without making the arm a complete hydraulic brake installation. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 340-18328
- Material: Aluminum / Steel
- Finish: Type III anodized
- Model: XRZ sprint-car pedal
- Ratio options: 6:1 or 7:1
- Pedal length: 15.75 inches

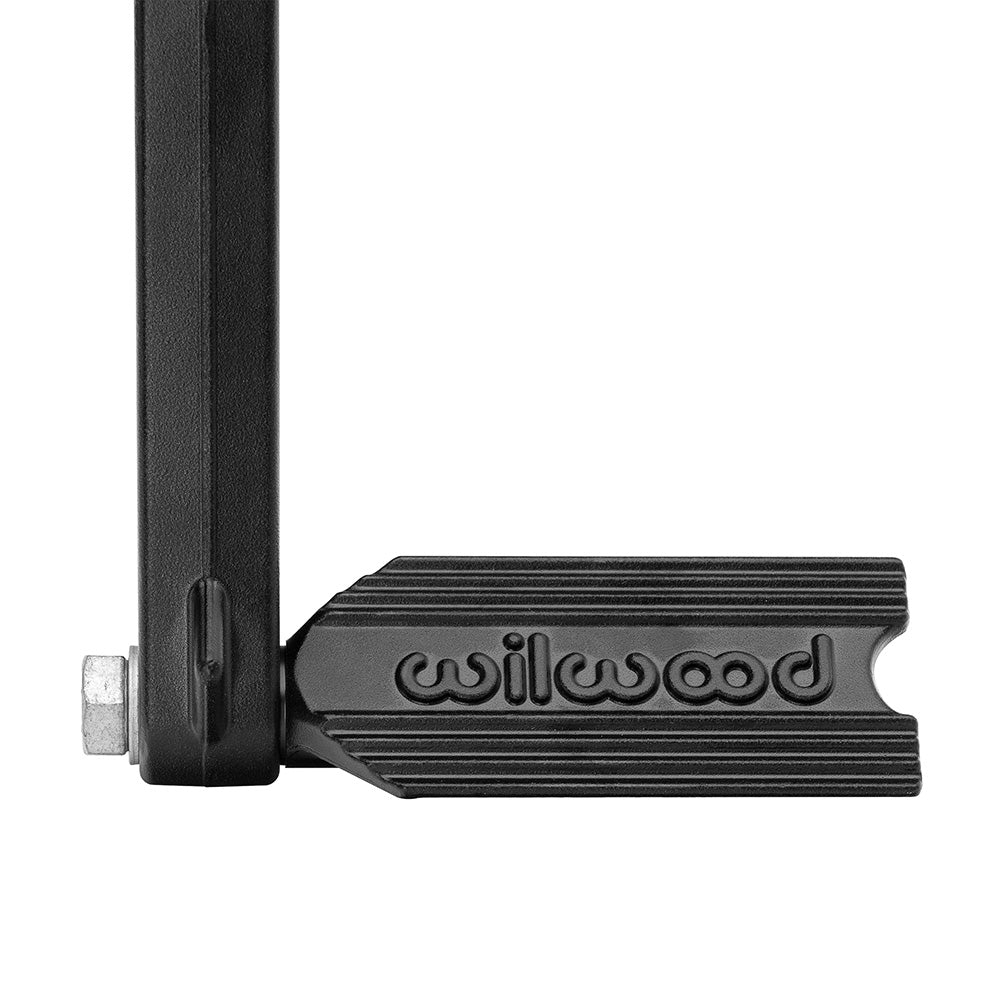

- Features: Adjustable footplate; dedicated return-spring tab
- Weight: 1.500 lb
Wilwood product specifications · Wilwood product guide FL646
Fitment & Compatibility
For a sprint-car mounting arrangement designed around a 6:1 or 7:1 pedal. Verify the 15.75-inch arm length, pivot hardware, spring attachment, and master-cylinder linkage. Select the ratio only after checking the complete system geometry and required stroke.
For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
