Product details

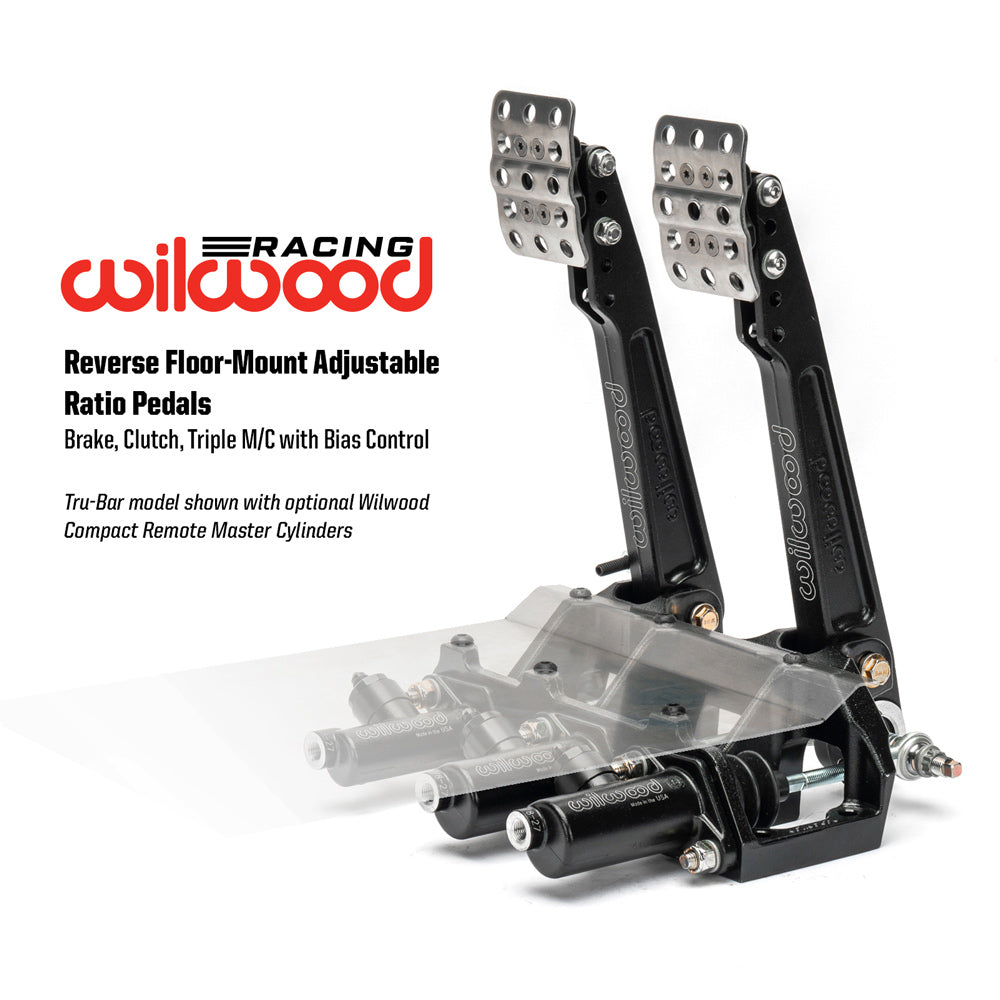

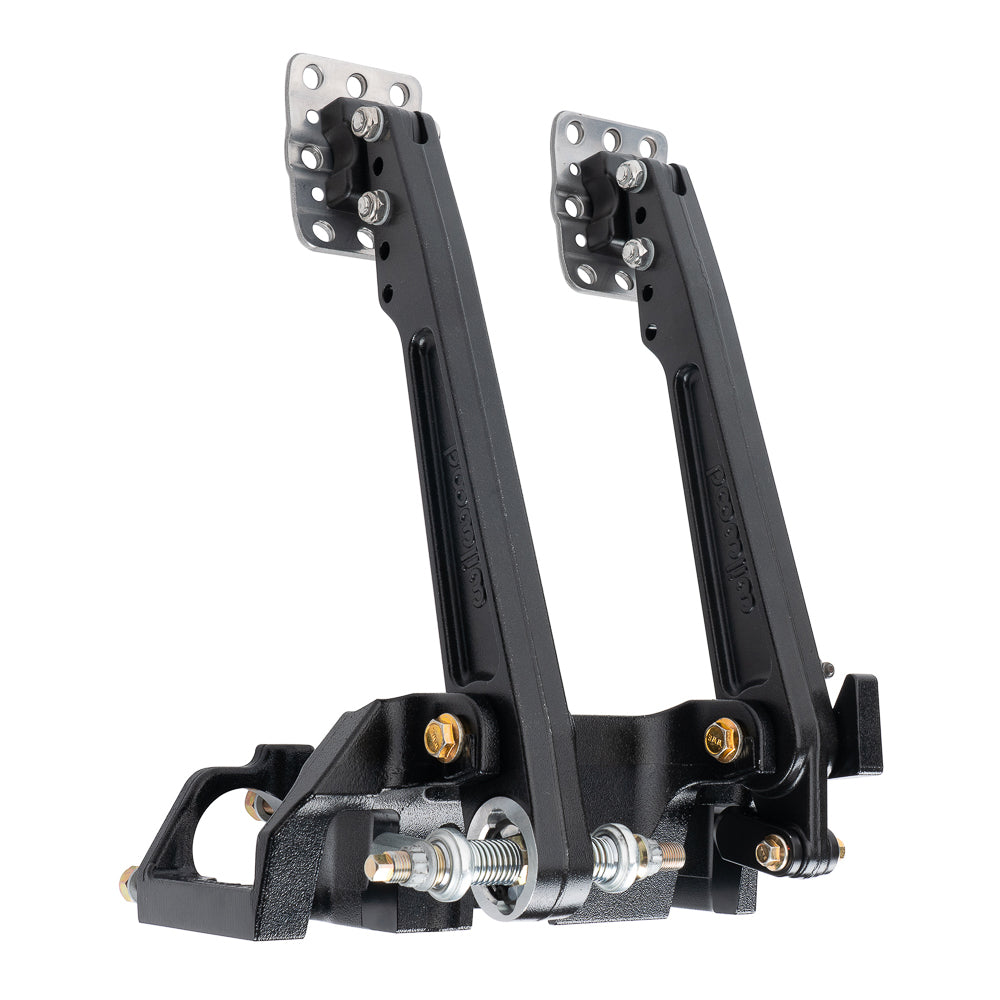

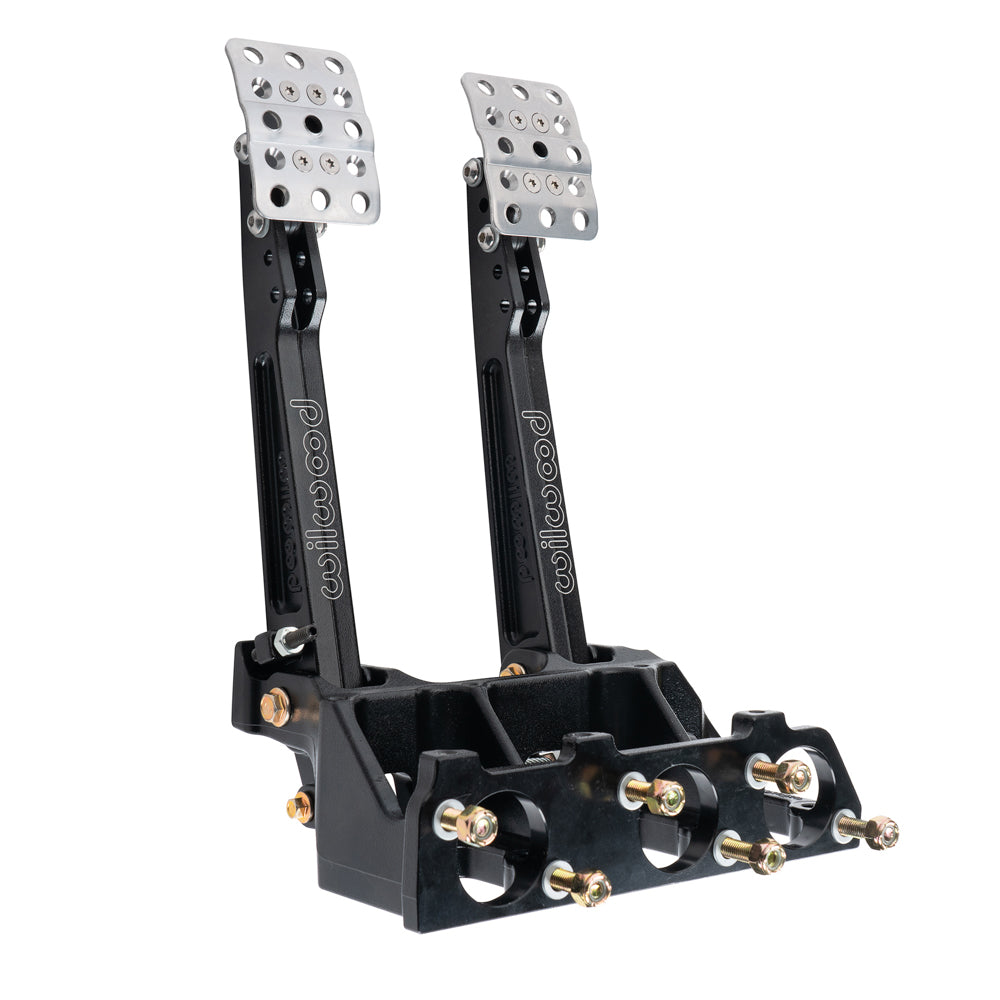

This Wilwood reverse-facing floor pedal pair brings spherical Tru-Bar brake-balance connections to a brake-and-clutch installation. Three head positions vary leverage from 5.25:1 to 6:1, and the lateral pad adjustment accommodates different driver positions. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings, and brake lines. Its motorsport, street-performance, and specialized components are chosen to suit the complete braking installation.
Technical Details
- Manufacturer part number: 340-17804
- Material: Aluminum
- Finish: Black E-coat
- Brake control: Tru-Bar
- Mount direction: Reverse floor
- Ratio selections: Three positions across 5.25:1 to 6.00:1
- Pad spacing: 3.75-5.75 inches center to center
- Weight: 6.850 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1620 · Wilwood product specifications
Fitment & Compatibility

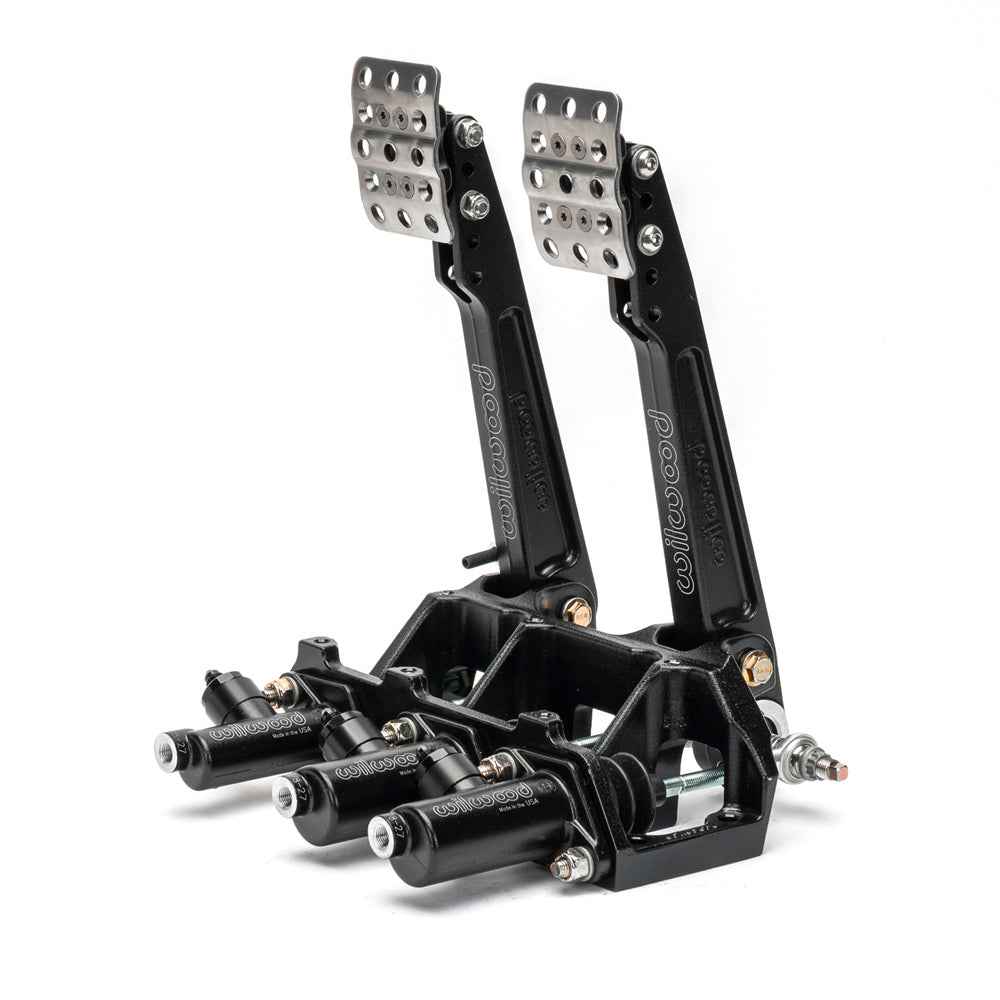

Use with three separately ordered remote-inlet, single-outlet master cylinders on 2.25-inch vertical flanges. Allow room behind the pedal pivots for the cylinders, pushrod travel and remote reservoir plumbing. Pad centers adjust from 3.75 to 5.75 inches; verify clutch release travel before final setup.
