Product details

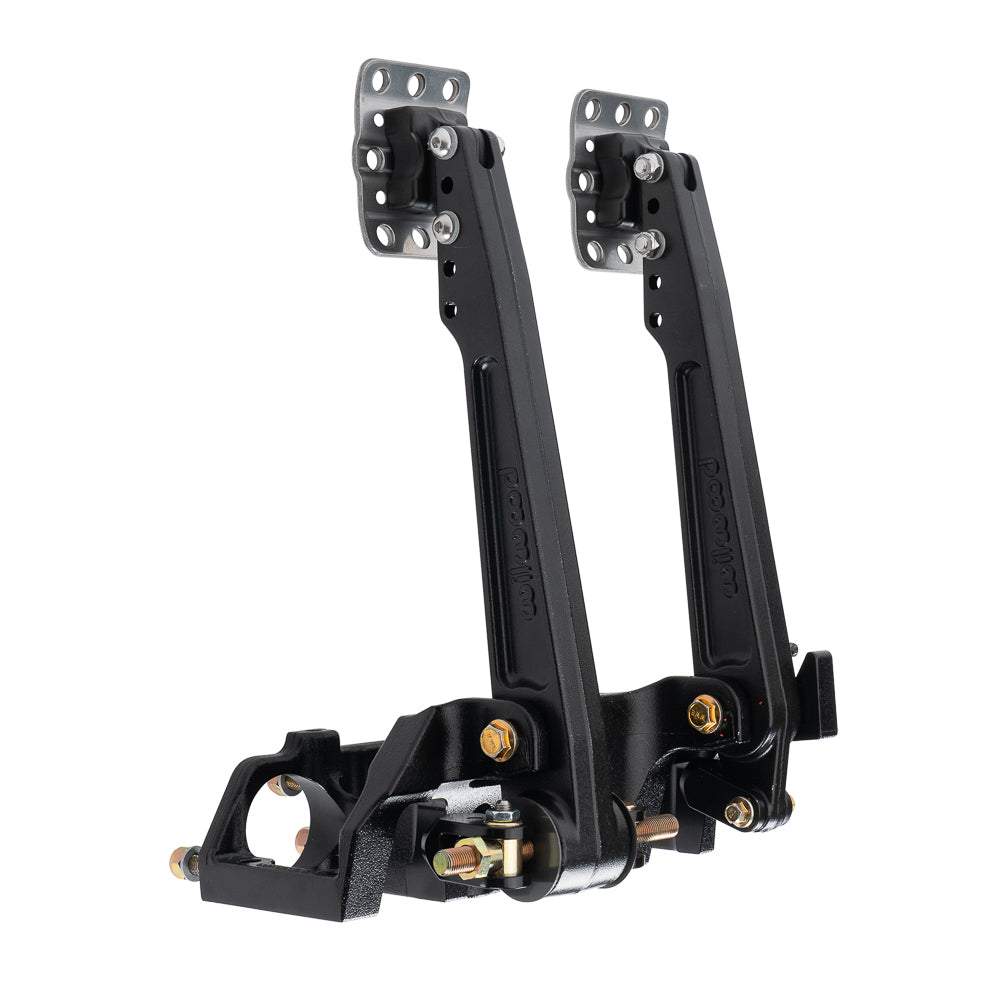

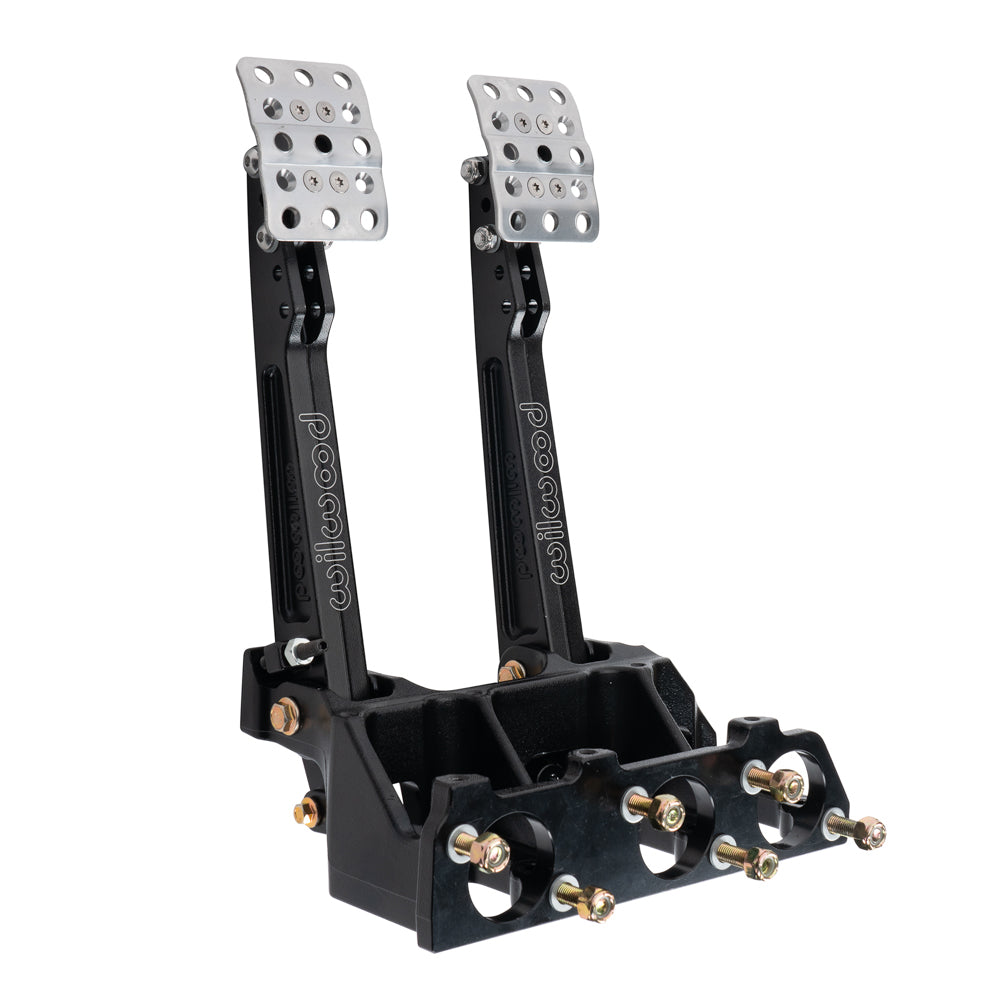

The Wilwood reverse-floor brake-and-clutch assembly places the master cylinders behind the pedal pivots for a compact floor layout. Each pedal head offers three leverage positions from 5.25:1 to 6:1, while a conventional balance bar controls the brake-force split. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 340-17803
- Material: Aluminum
- Finish: Black E-coat
- Mounting: Reverse-facing floor
- Ratios: Three positions spanning 5.25:1 to 6.00:1
- Bias mechanism: Standard balance bar
- Cylinder requirement: Three remote-inlet single-outlet units; not included
- Weight: 6.850 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1619 · Wilwood product specifications
Fitment & Compatibility

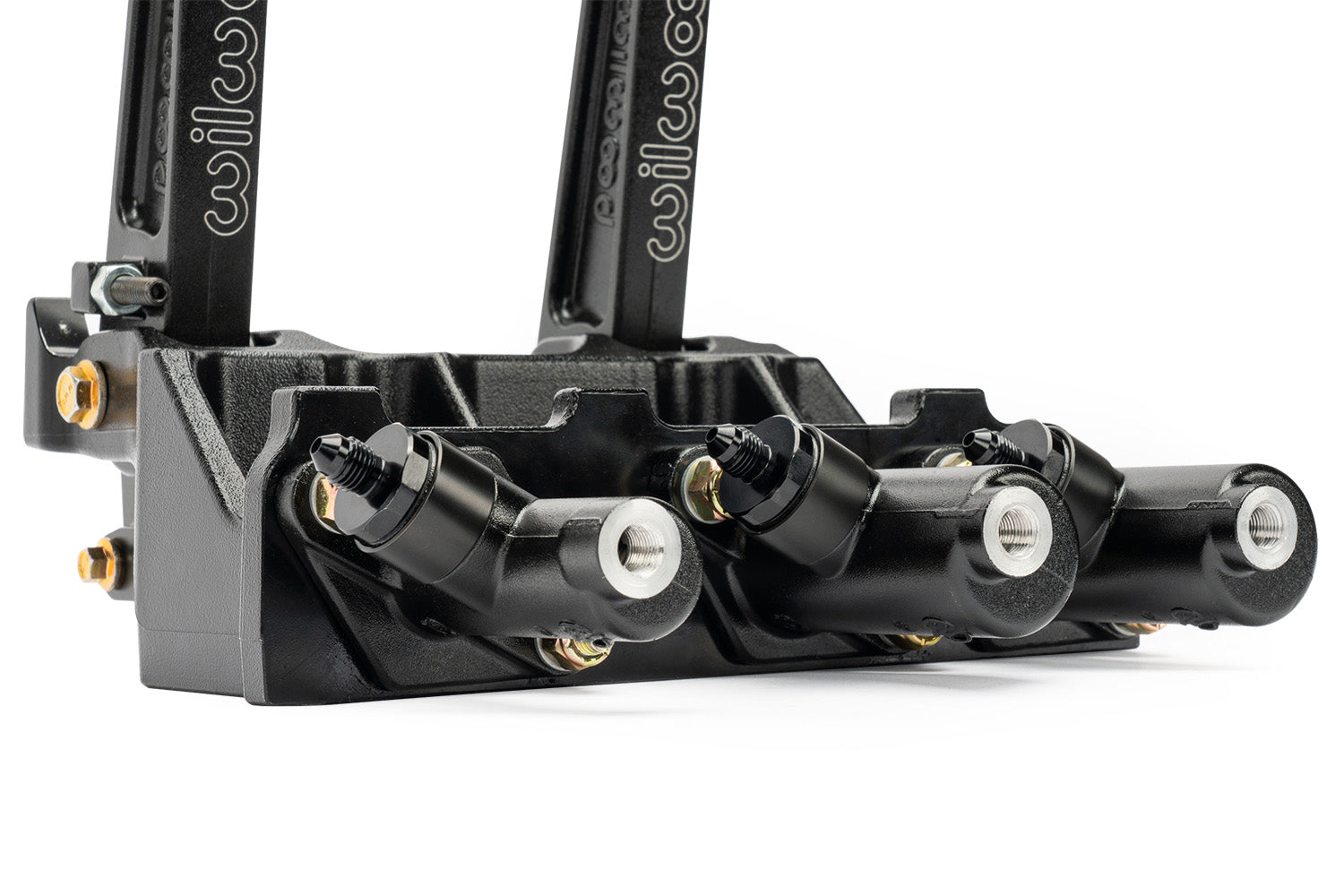

Requires three remote-inlet, single-outlet master cylinders with 2.25-inch vertical mounting centers, purchased separately. Check rearward cylinder clearance, fluid-supply routing, and pad centers adjustable from 3.75 to 5.75 inches.
PMB Performance can help review the mating parts before you place an order. Our team draws on over 20 years of experience with parts and application details.
