Product details

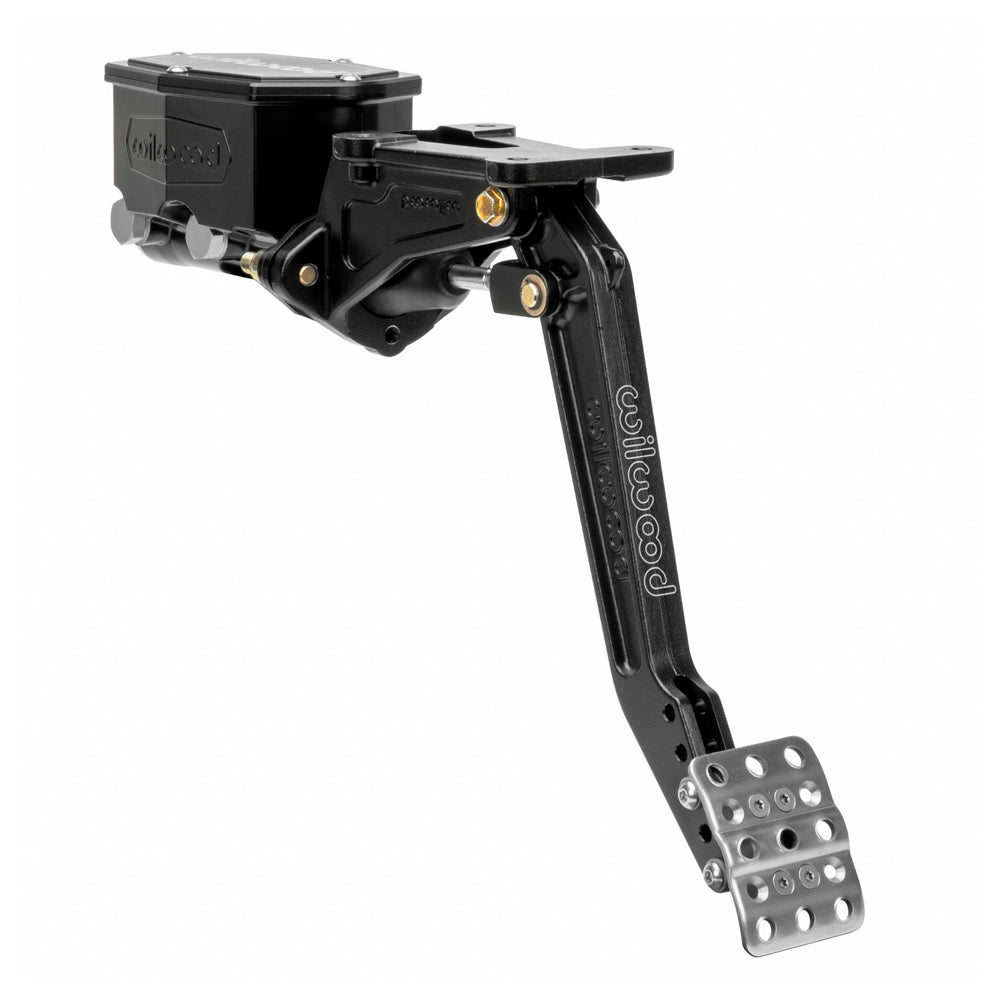

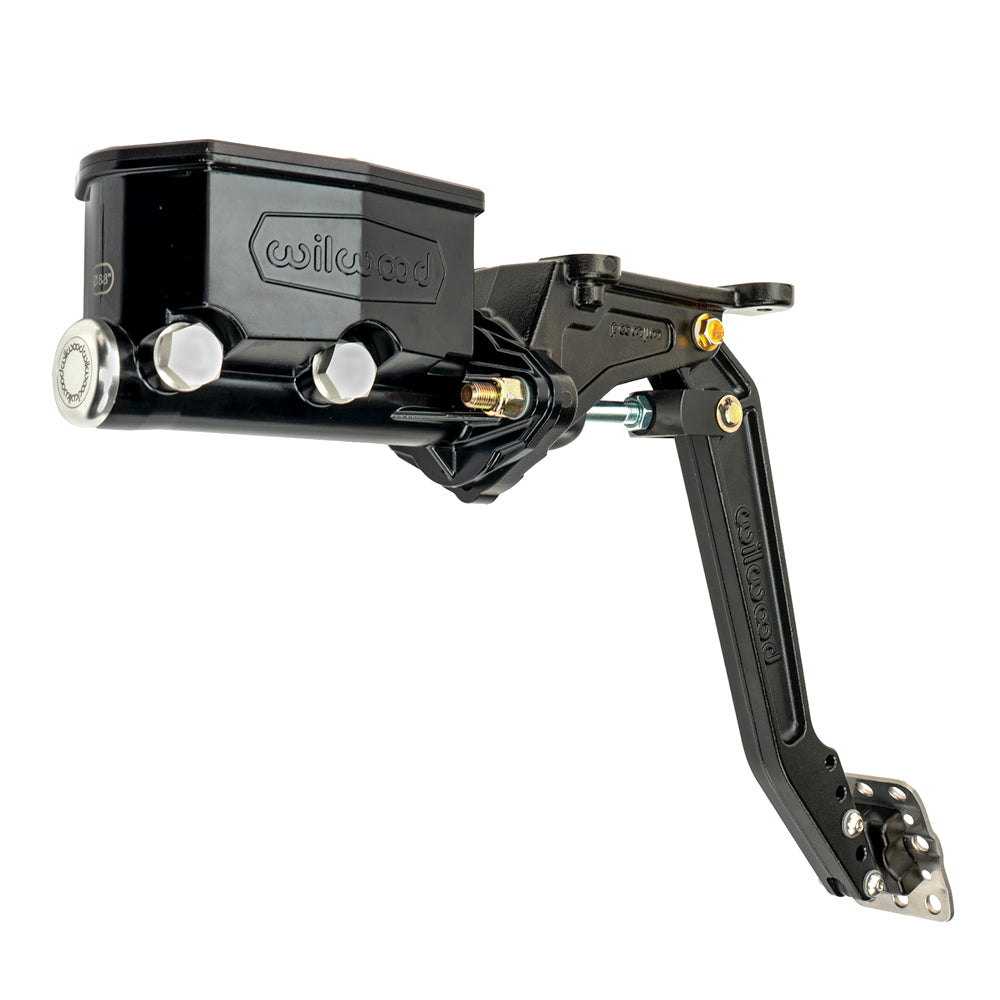

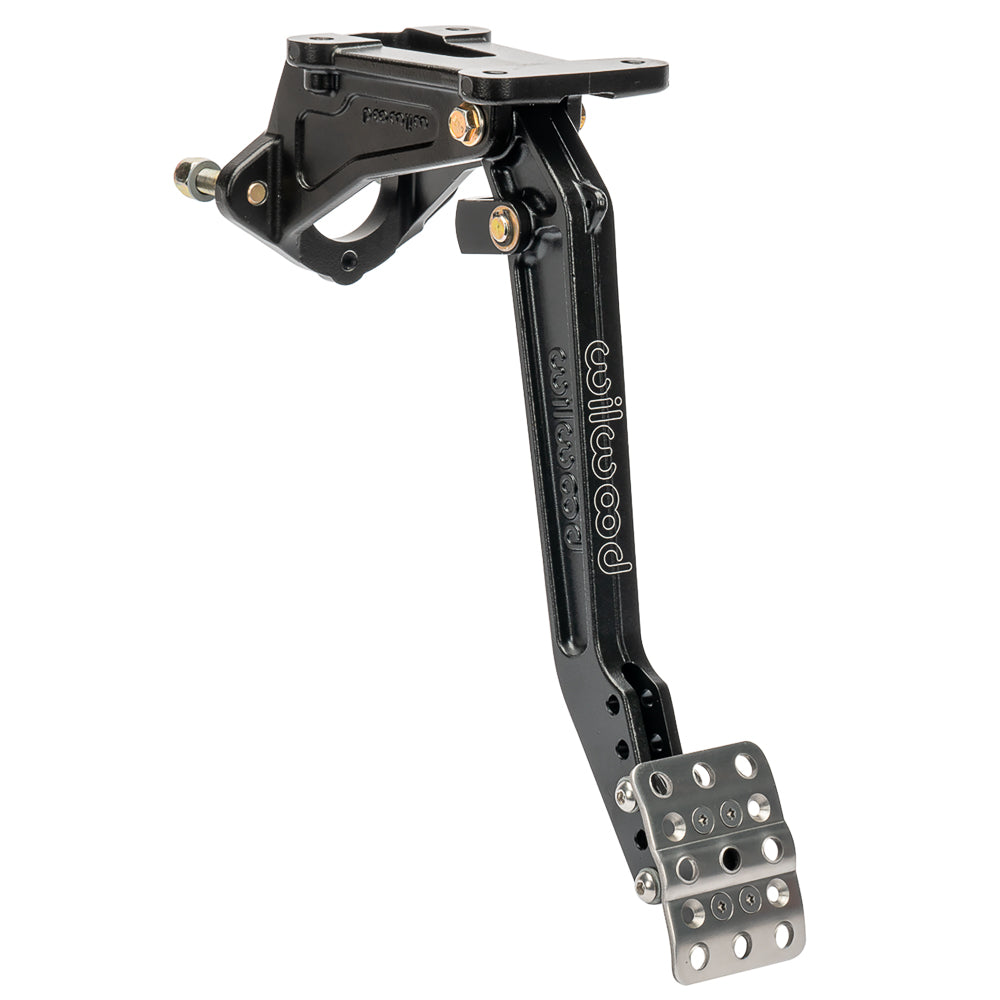

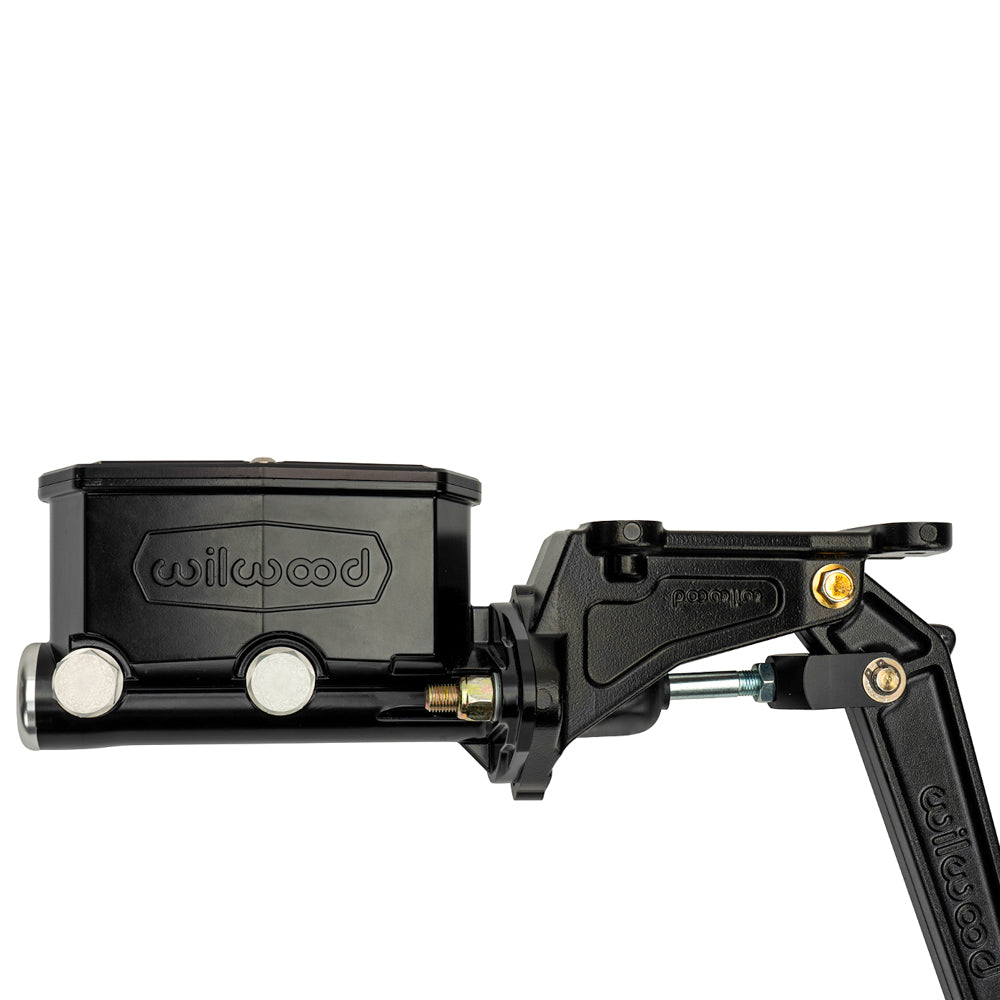

This Wilwood forward-swing brake pedal suspends from an overhead mounting structure and operates one tandem master cylinder. A stainless steel footpad adjusts vertically to provide 6.25-7:1 leverage, while the E-coated aluminum base and lever form the pedal assembly without a brake balance bar. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-17699
- Material: Aluminum
- Finish: Black E-coat
- Orientation: Forward swing / hanging
- Pedal ratios: 6.25–7.00:1
- Footpad: Stainless steel waffle pattern
- Flange patterns: 3.25 inches horizontal; 2.25 inches vertical
- Center opening: 1.68 inches
- Weight: 3.150 lb
Wilwood product specifications · Wilwood product guide FL596
Fitment & Compatibility
Match the master-cylinder flange to 3.25-inch horizontal or 2.25-inch vertical centers and a 1.68-inch opening. This is the hanging version, not the floor-mounted pedal. Verify structure, pushrod geometry, and the travel envelope; the master cylinder is separate.
Need assistance identifying the correct configuration? PMB Performance draws on more than 20 years of experience; contact us with your system details and measurements.
