Product details

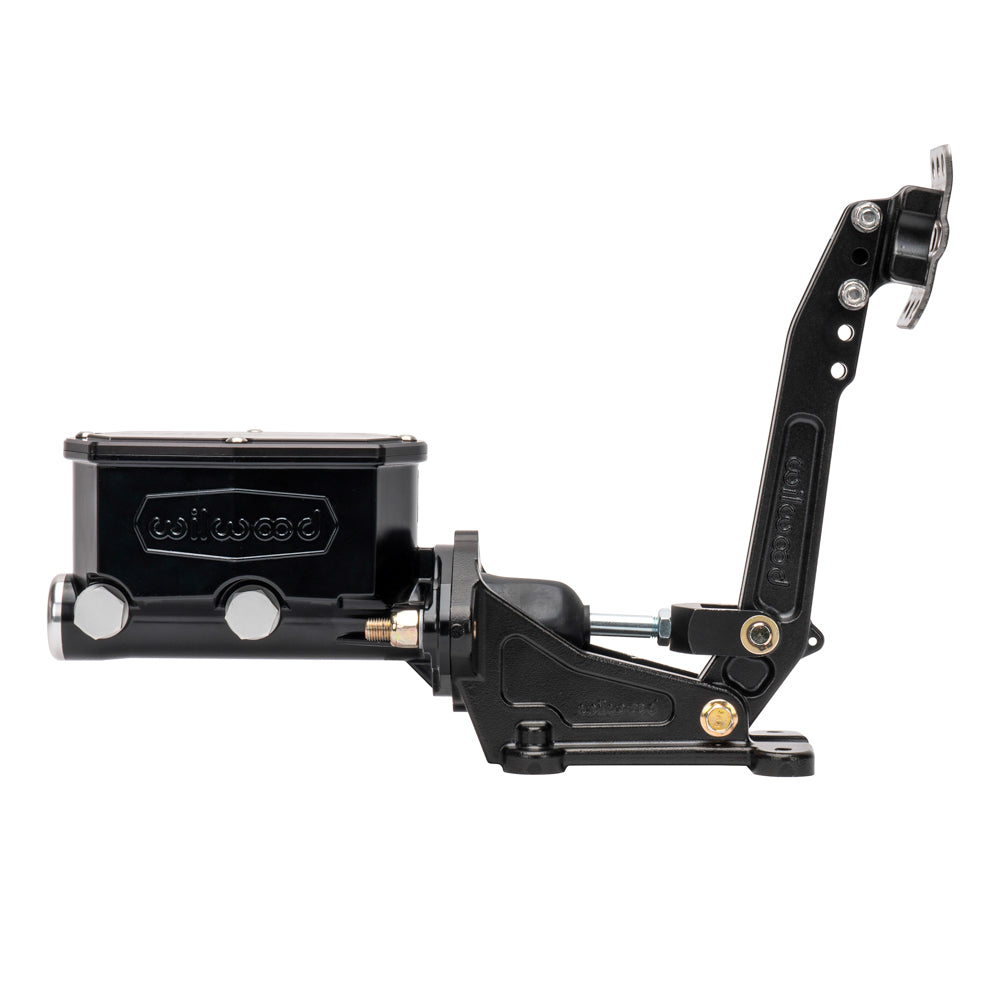

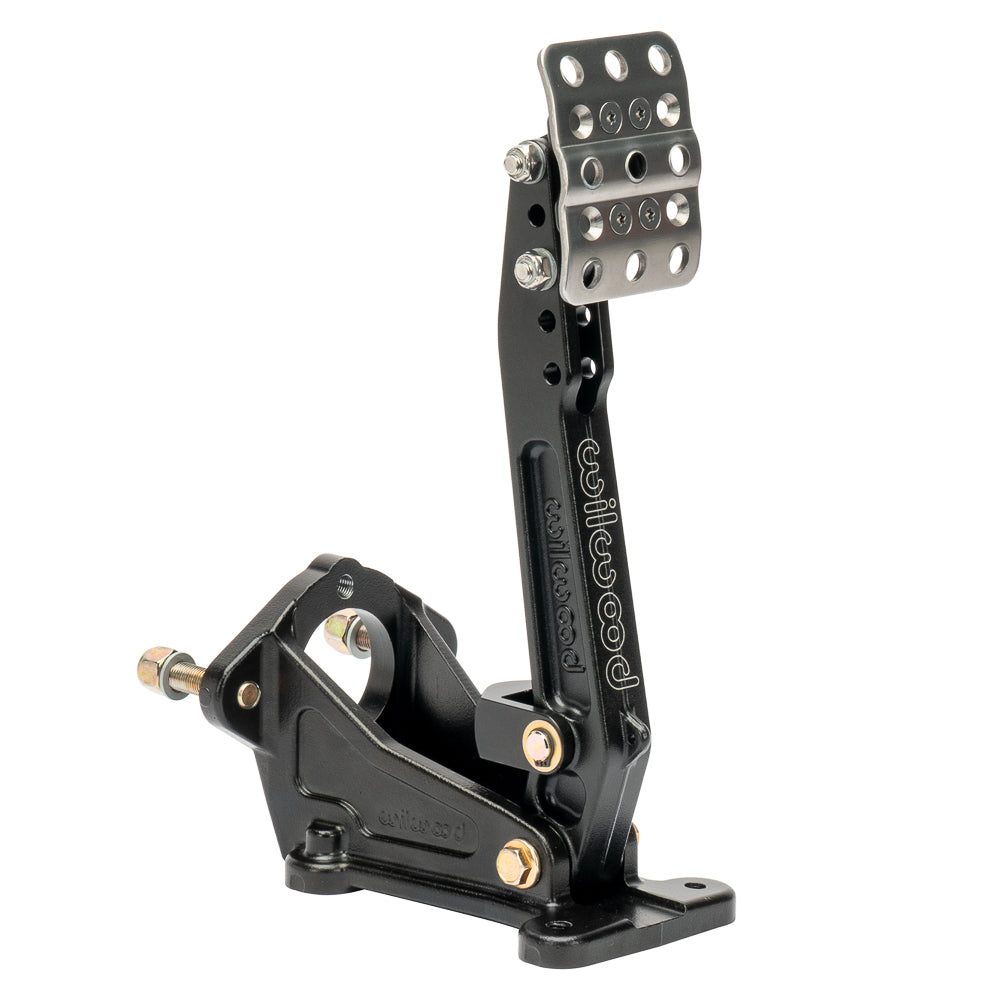

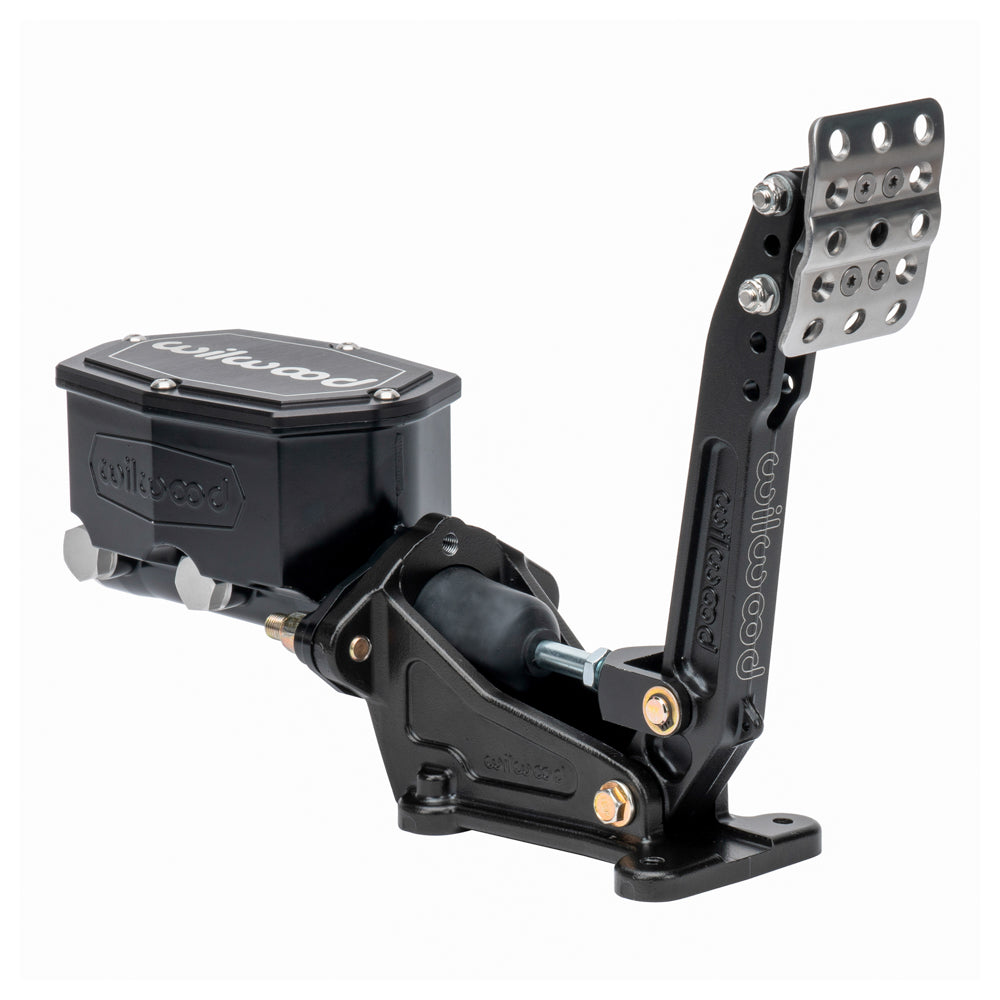

Designed around a tandem master cylinder, this Wilwood single floor-mounted brake pedal does not use a balance bar. The black E-coated base and lever carry a stainless steel waffle-pattern footpad, with head positions that change pedal ratio from 5.25 to 6:1. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 340-17698
- Material: Aluminum
- Finish: Black E-coat
- Pedal ratio range: 5.25–6.00:1
- Footpad: Stainless steel; laterally adjustable
- Master-cylinder mounting: 3.25 inches horizontal or 2.25 inches vertical
- Center opening: 1.68 inches
- Balance bar: None
- Weight: 2.950 lb
Wilwood product specifications · Wilwood product guide FL596
Fitment & Compatibility
Confirm the cylinder flange against the 3.25-inch horizontal or 2.25-inch vertical mounting pattern and the 1.68-inch center opening. A master cylinder is selected separately. Check pushrod engagement, floor support, and clearance at each selected pedal height.
