Product details

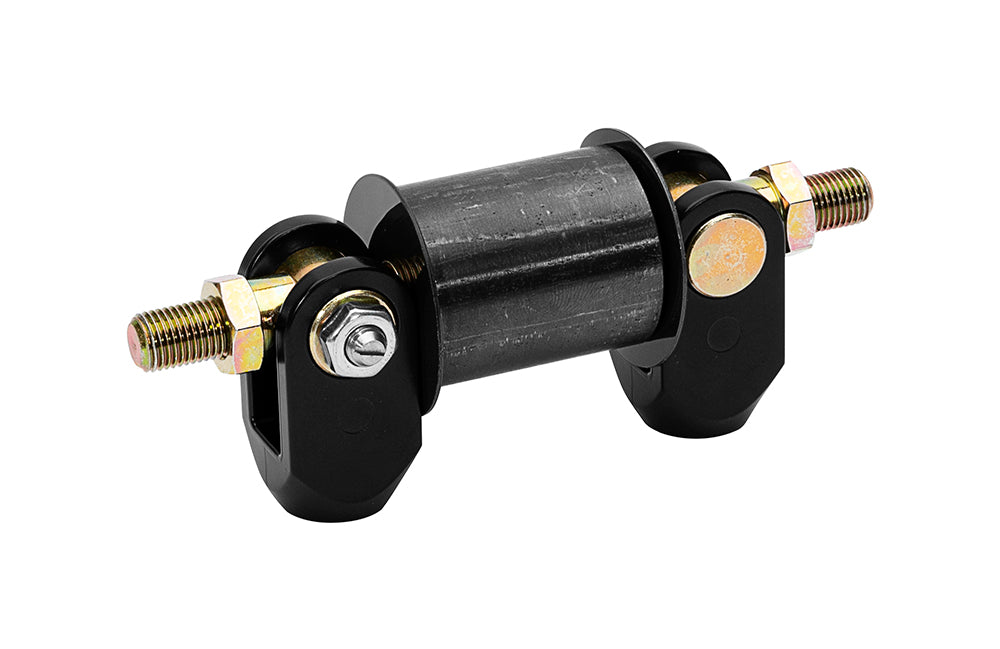

This Wilwood standard balance-bar assembly includes a tube for fabrication of a compatible steel pedal. Clevises, the bearing, a jam nut, and detent hardware complete the mechanism that divides pedal effort between two brake master cylinders. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 340-1757
- Material: Steel
- Included: Balance bar, clevises, bearing, detent hardware, jam nut, weld-in tube
- Pedal fabrication: Steel pedal with compatible welded sleeve
- Balance type: Standard pin-and-clevis
- Weight: 0.800 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Intended for a properly engineered custom steel pedal or a matching conventional Wilwood balance-bar arrangement. The sleeve requires suitable fabrication and alignment. Confirm bearing fit, clevis spacing, and unobstructed movement through the full master-cylinder stroke; do not substitute it for a Tru-Bar assembly.
PMB Performance offers fitment support backed by more than 20 years of experience. Share the specifications of the matching assembly so the component can be checked in context.
