Product details

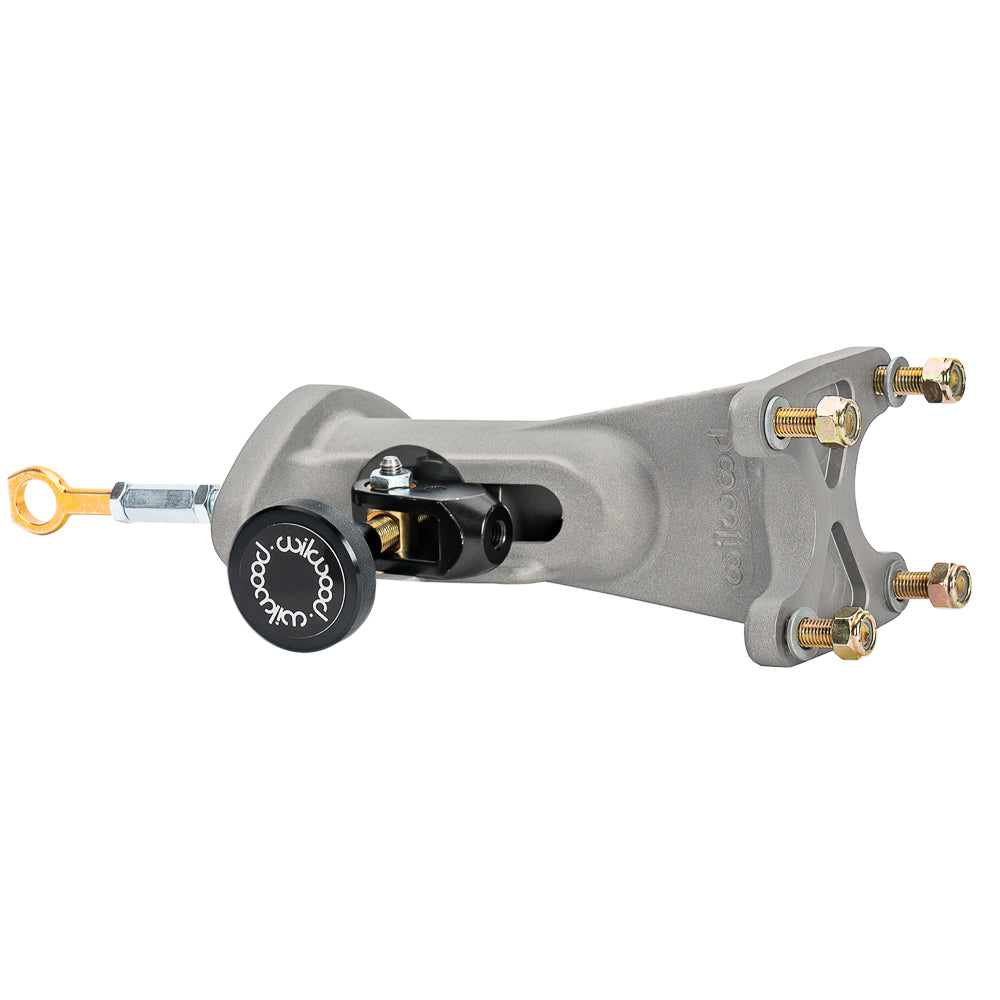

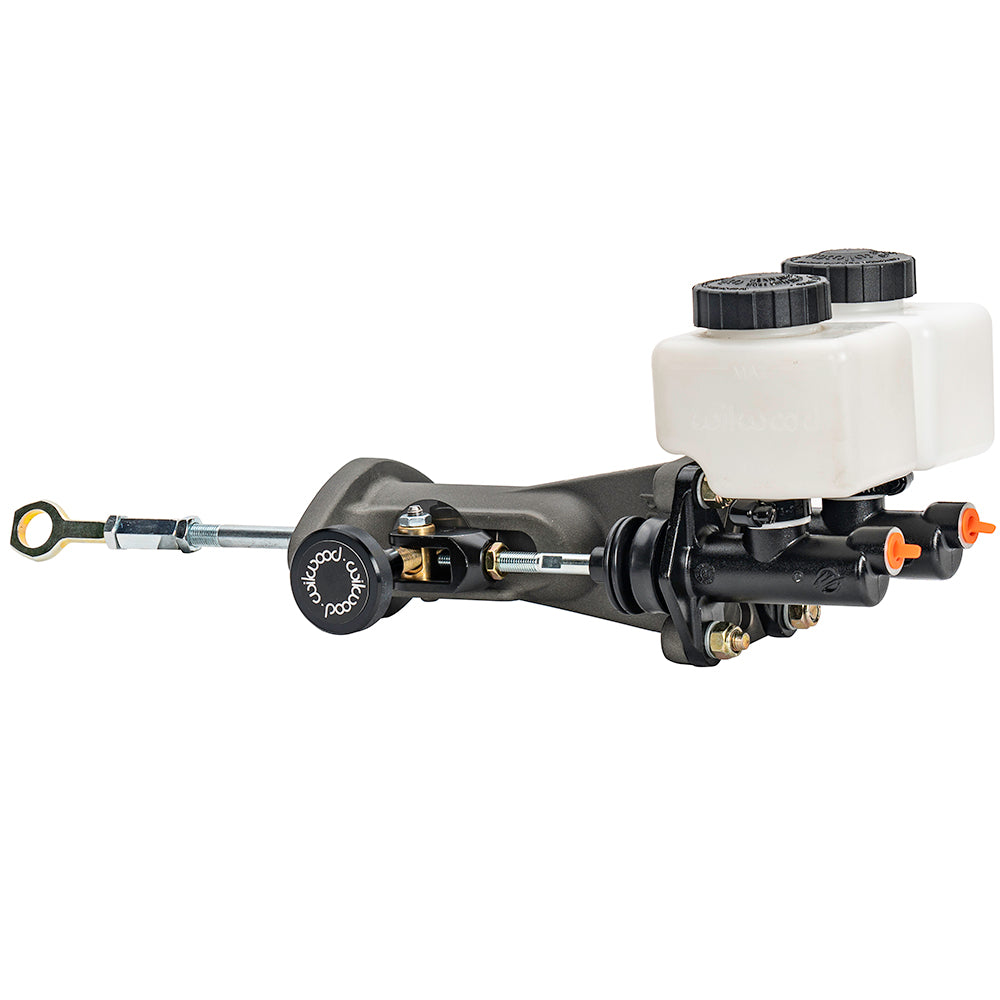

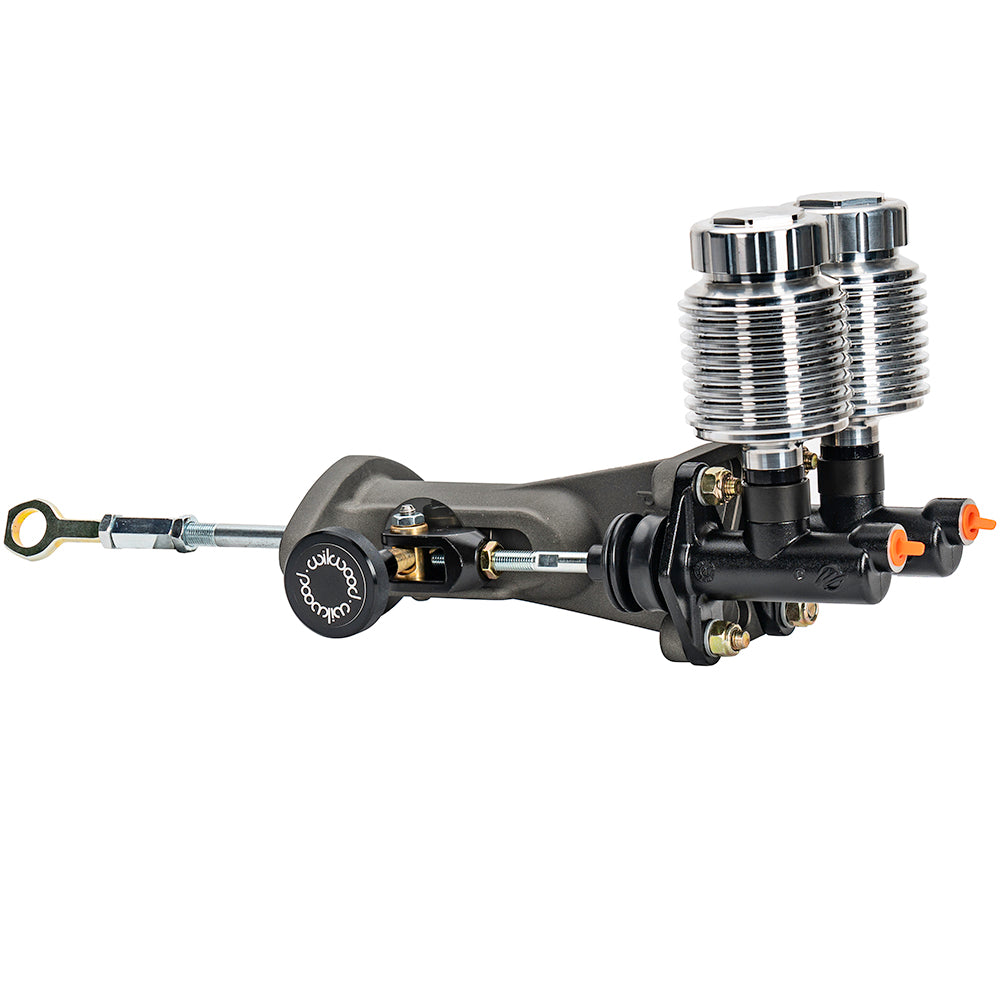

The eyelet connection distinguishes this Wilwood tandem-flange conversion assembly from the standard adapter. A balance bar distributes pedal load to two separate brake master cylinders, enabling a dual-cylinder arrangement to attach at the compatible original tandem mounting location. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 340-16928
- Material: Aluminum / Steel
- Finish: Type III anodized
- Linkage connection: Eyelet equipped
- Mounting conversion: Tandem flange to dual brake master cylinders
- Flange centers: 3.22-3.40 inches horizontal
- Cylinder centers: 2.25 inches vertical
- Weight: 2.780 lb
Wilwood technical instructions DS-1525 · Wilwood product specifications
Fitment & Compatibility
Check the eyelet against the pedal linkage and confirm horizontal mounting centers within 3.22-3.40 inches. Each separately selected cylinder uses a 2.25-inch vertical flange. Conversion suitability depends on pedal geometry and the complete hydraulic system, not vehicle model alone.
With over 20 years of experience, PMB Performance can help check the details that matter before you order. Have the installed assembly and component specifications available.
