Product details

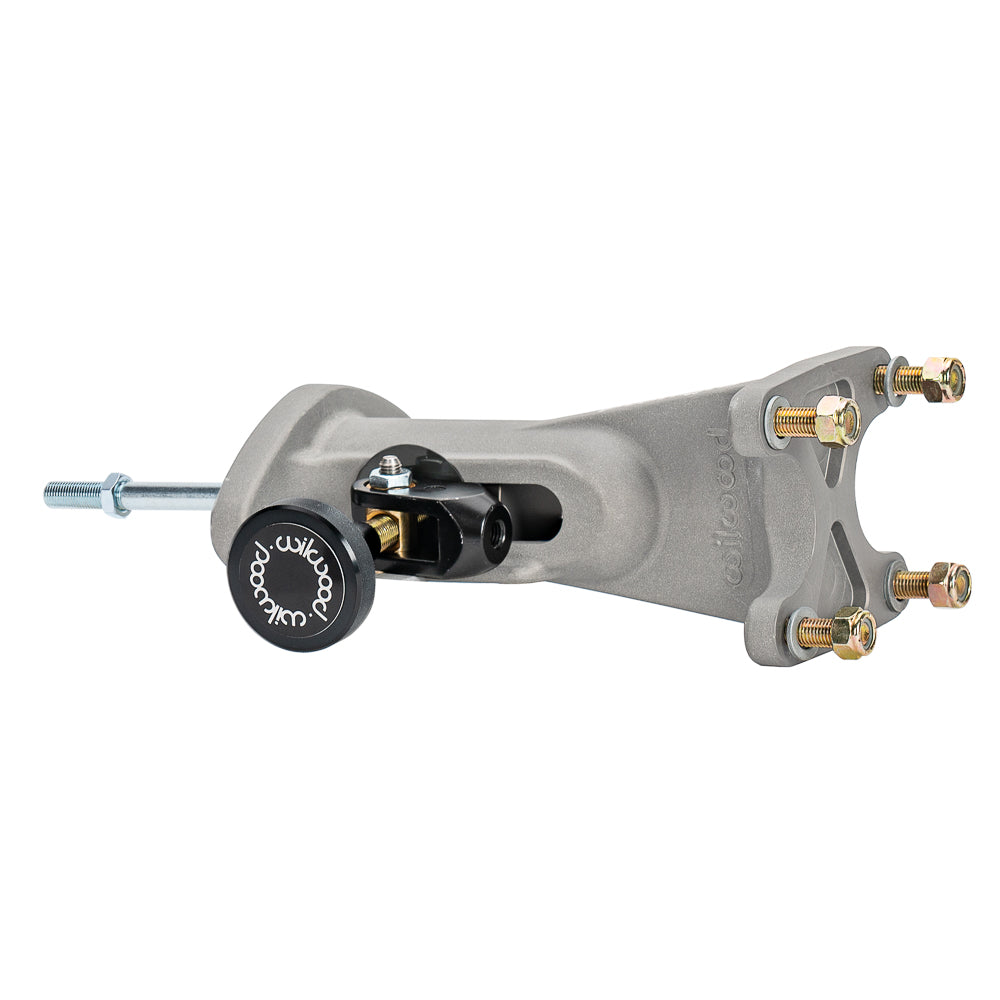

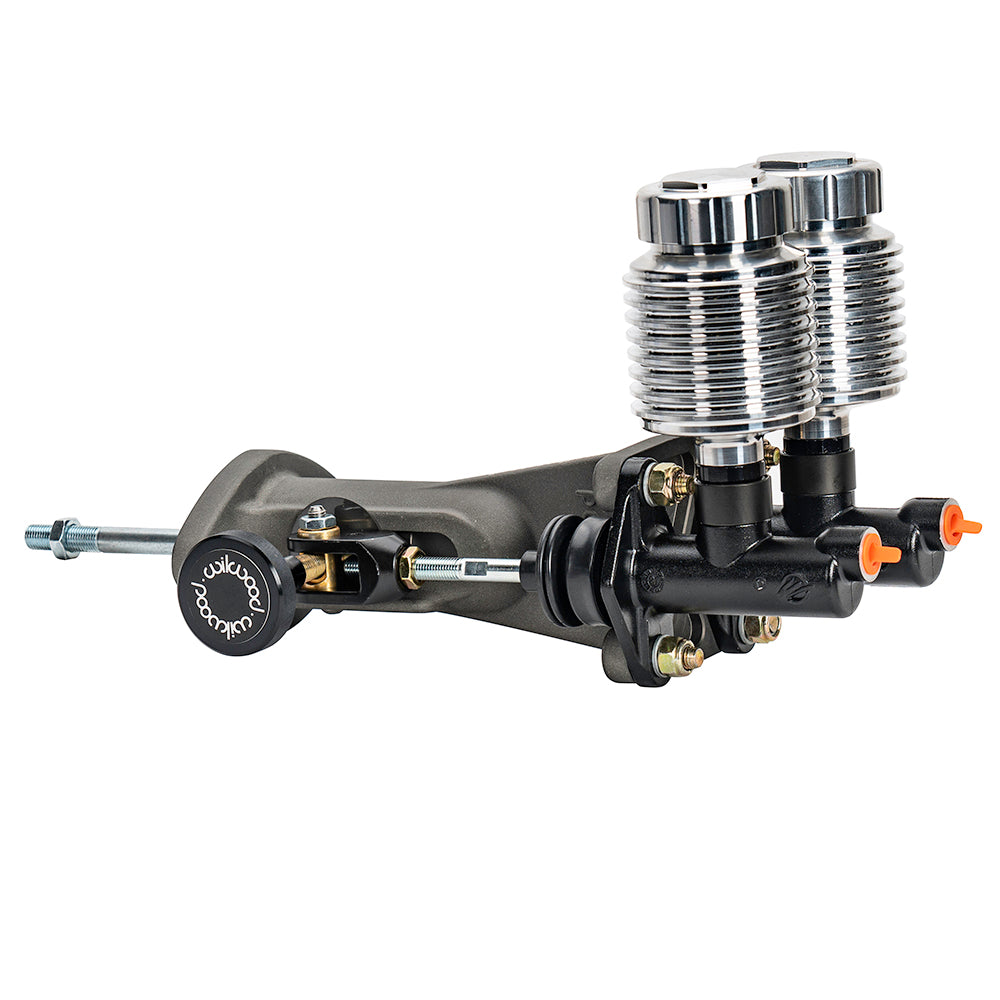

This Wilwood adapter installs a dual-master-cylinder balance-bar arrangement at a compatible horizontal tandem-master mounting flange. Its oval attachment holes accommodate 3.22-3.40-inch centers, while the two master cylinders attach on 2.25-inch vertical centers. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-16920
- Material: Aluminum / Steel
- Finish: Type III anodized
- Type: Tandem-mount to dual-master balance-bar adapter
- Firewall attachment: 3.22-3.40-inch horizontal centers
- Master-cylinder attachment: 2.25-inch vertical centers
- Balance system: Standard bar
- Weight: 2.740 lb
Wilwood technical instructions DS-1525 · Wilwood product specifications
Fitment & Compatibility
For a custom brake-system conversion, not a replacement tandem master cylinder. Confirm firewall support, pushrod alignment, cylinder clearance, and hydraulic sizing. Master cylinders must be selected separately; this version is not the eyelet-equipped assembly.
