Product details

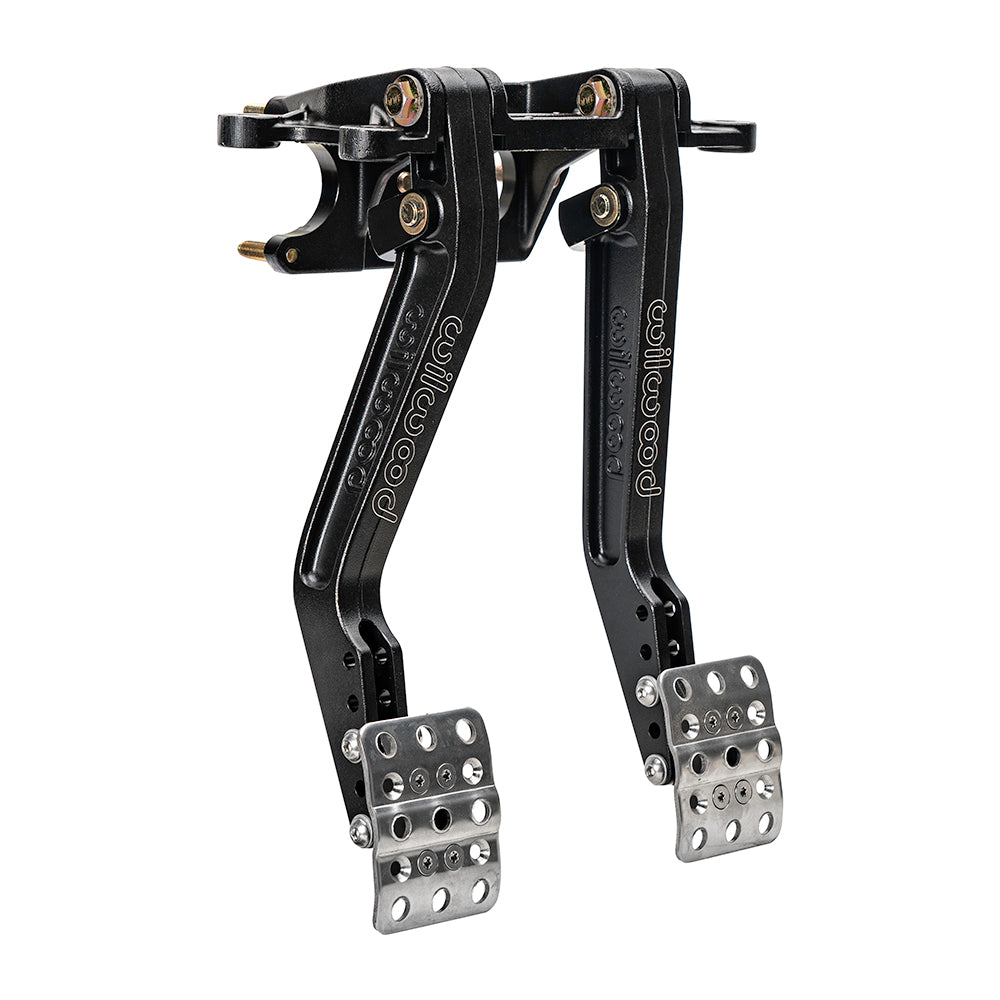

A two-inch clutch offset gives this Wilwood forward-swing pedal pair additional lateral separation between brake and clutch pads. It is built for one tandem brake master cylinder and one clutch master, rather than two brake cylinders and a balance bar. Wilwood Engineering designs and manufactures complete disc brake systems as well as calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Based in Camarillo, California, it was founded by Bill Wood in 1977. The range serves motorsport, street-performance, and specialized applications, requiring each part to be matched to the system in which it operates.
Technical Details
- Manufacturer part number: 340-16833
- Material: Aluminum
- Finish: Black E-coat
- Clutch offset: 2 inches
- Brake/clutch ratios: Three head positions spanning 5.50:1 to 6.25:1
- Brake balance bar: Not fitted; tandem brake master layout
- Pad-center adjustment: 5-7 inches
- Weight: 5.390 lb
Wilwood technical instructions DS-1505 · Wilwood product specifications
Fitment & Compatibility
The brake flange uses 3.25-inch horizontal centers and the clutch uses 2.25-inch vertical centers. Choose among three head positions from 5.50:1 to 6.25:1 and verify the 5-7-inch pad-center range in the footwell. Both master cylinders are ordered separately.
