Product details

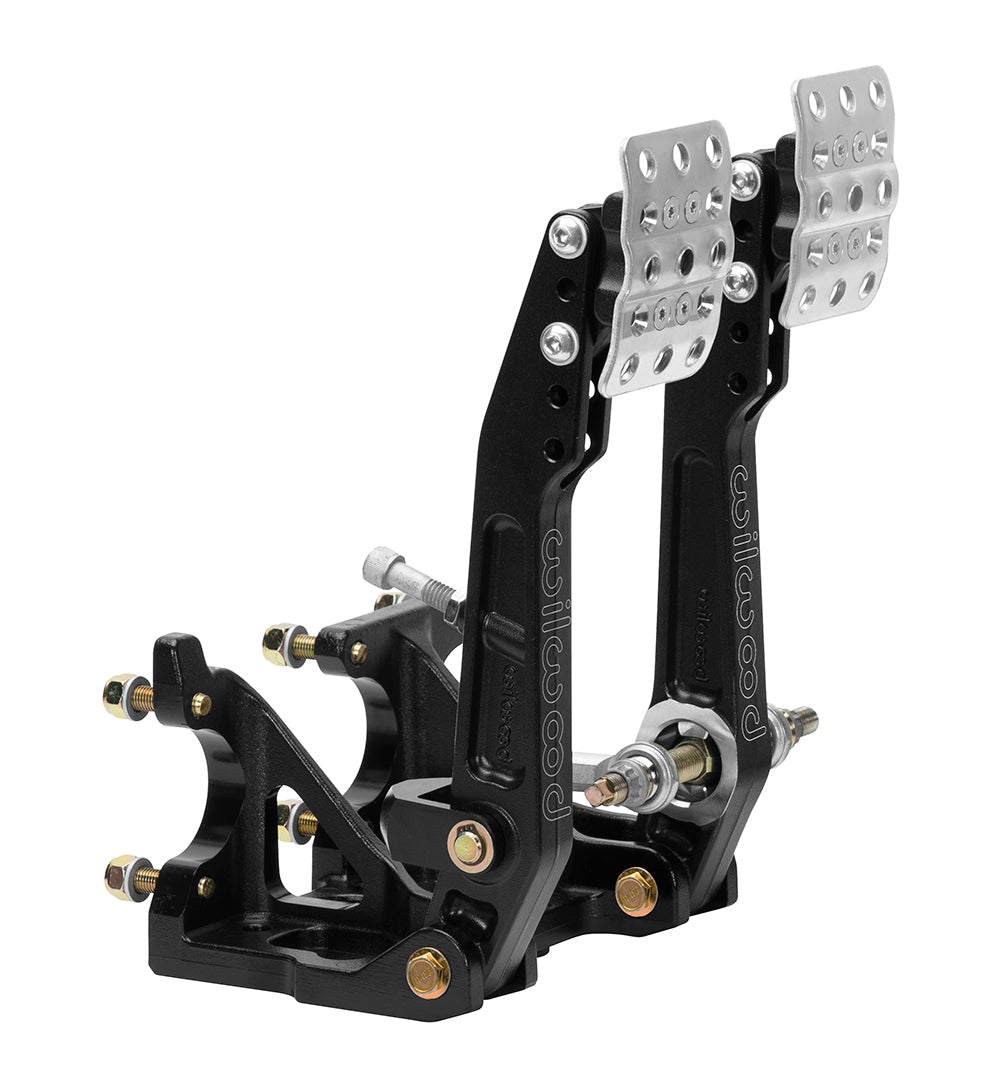

This two-pedal Wilwood floor assembly uses Tru-Bar brake balance control alongside an independently operated clutch pedal. The forged aluminum arms accept three head positions, allowing brake and clutch leverage to be selected without adding a throttle mechanism to the assembly. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-16607
- Material: Aluminum
- Finish: Black E-coat
- Brake balance: Tru-Bar spherical connections
- Pedal count: Two: brake and clutch
- Ratios: 4.75, 5.25, or 5.75:1
- Installation: Forward-facing floor mount
- Weight: 5.380 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1507 · Wilwood product specifications
Fitment & Compatibility
Choose 4.75, 5.25, or 5.75:1 settings to suit the hydraulic design. Three 2.25-inch vertical-flange master cylinders are required separately; verify their stroke and reservoir access as well as the 3.75-5.75-inch pad-center range.
Confirm the installation with PMB Performance when the existing configuration is unclear. We have more than 20 years of experience supporting careful parts selection and fitment checks.
