Product details

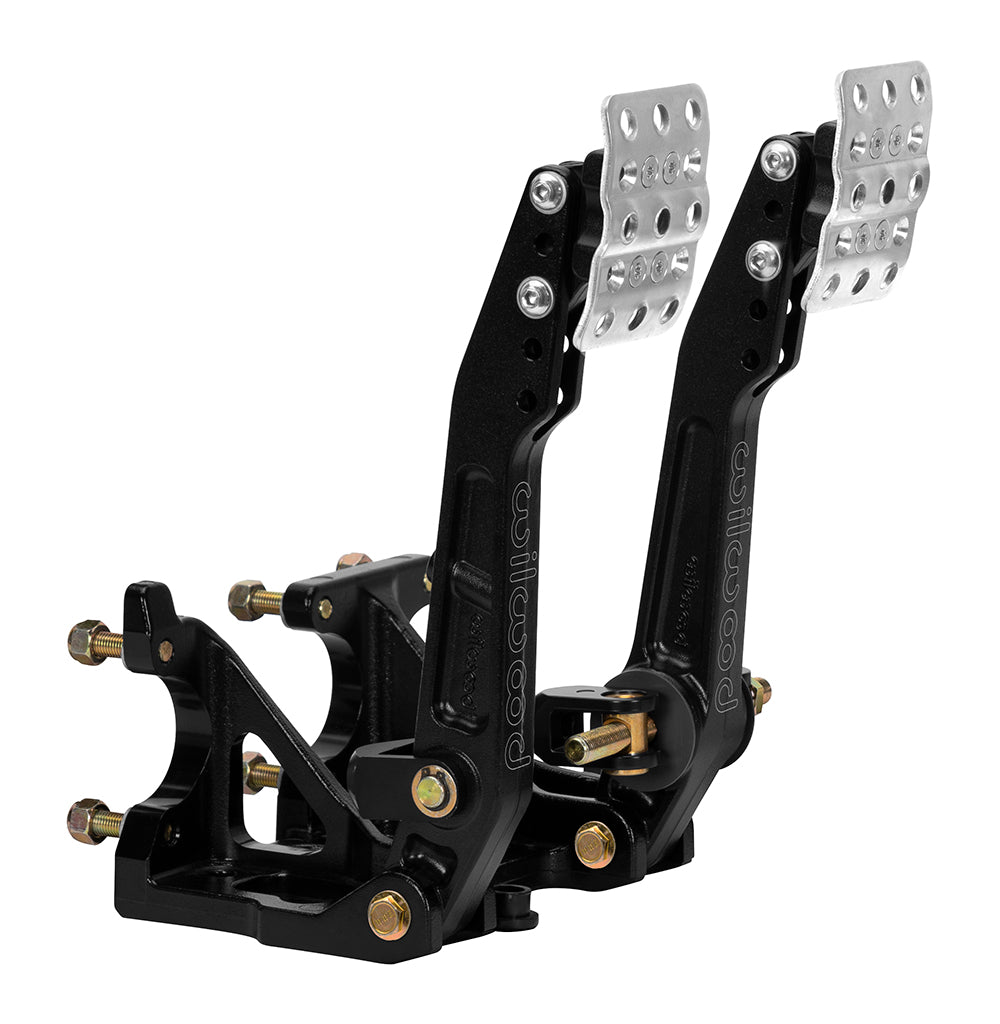

The Wilwood adjustable floor brake-and-clutch assembly provides two controls without an integrated throttle pedal. Repositioning the pedal heads selects 4.75, 5.25, or 5.75:1 leverage, and a conventional detent balance bar operates the separate front and rear brake master cylinders. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 340-16606
- Material: Aluminum
- Finish: Black E-coat
- Controls: Brake and clutch only
- Ratios: 4.75, 5.25, or 5.75:1
- Balance bar: Standard detent type
- Mounting: Forward-facing floor assembly
- Weight: 5.510 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1506 · Wilwood product specifications
Fitment & Compatibility
Requires two brake master cylinders and one clutch master cylinder with 2.25-inch vertical flanges, all sold separately. Confirm floor attachment, master-cylinder access, and pad centers adjustable from 3.75 to 5.75 inches. Provide a separate throttle control.
Discuss the existing setup with PMB Performance before ordering when the application is uncertain. We bring over 20 years of experience to parts selection and fitment support.
