Product details

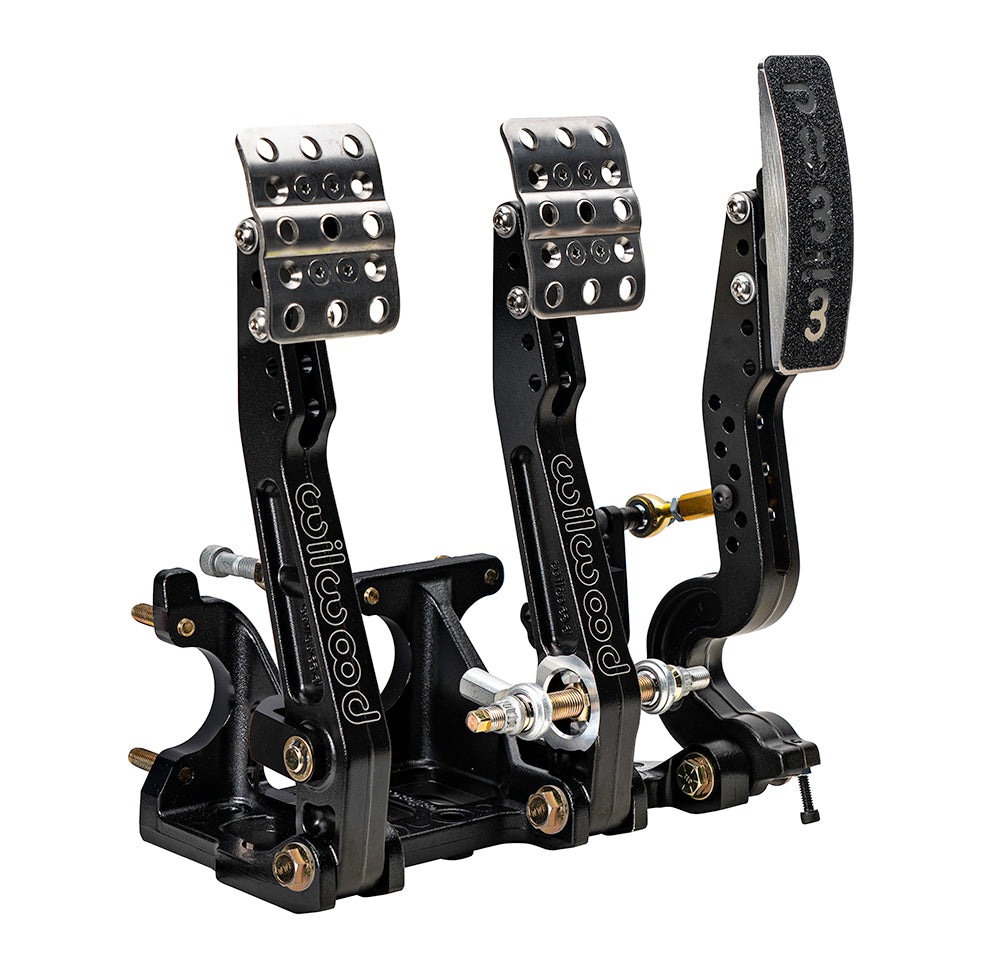

This Wilwood Tru-Bar floor pedal set includes the front-engine throttle bellcrank along with separate brake and clutch controls. Spherical connections in the brake balance arrangement accompany adjustable pedal heads, giving the installer three brake and clutch leverage choices. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 340-16605
- Material: Aluminum
- Finish: Black E-coat
- Ratios, brake and clutch: 4.75, 5.25, or 5.75:1
- Footpad centers: Adjustable from 3.75 to 5.75 inches
- Throttle hardware: Front-engine adjustable-ratio bellcrank included
- Brake bias mechanism: Tru-Bar
- Weight: 7.800 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
Use in a custom front-engine installation with master-cylinder bores selected for the complete brake and clutch systems. Each of the three cylinders requires a 2.25-inch vertical mounting flange and is sold separately. Check throttle-bellcrank travel and the available pad-spacing range.
