Product details

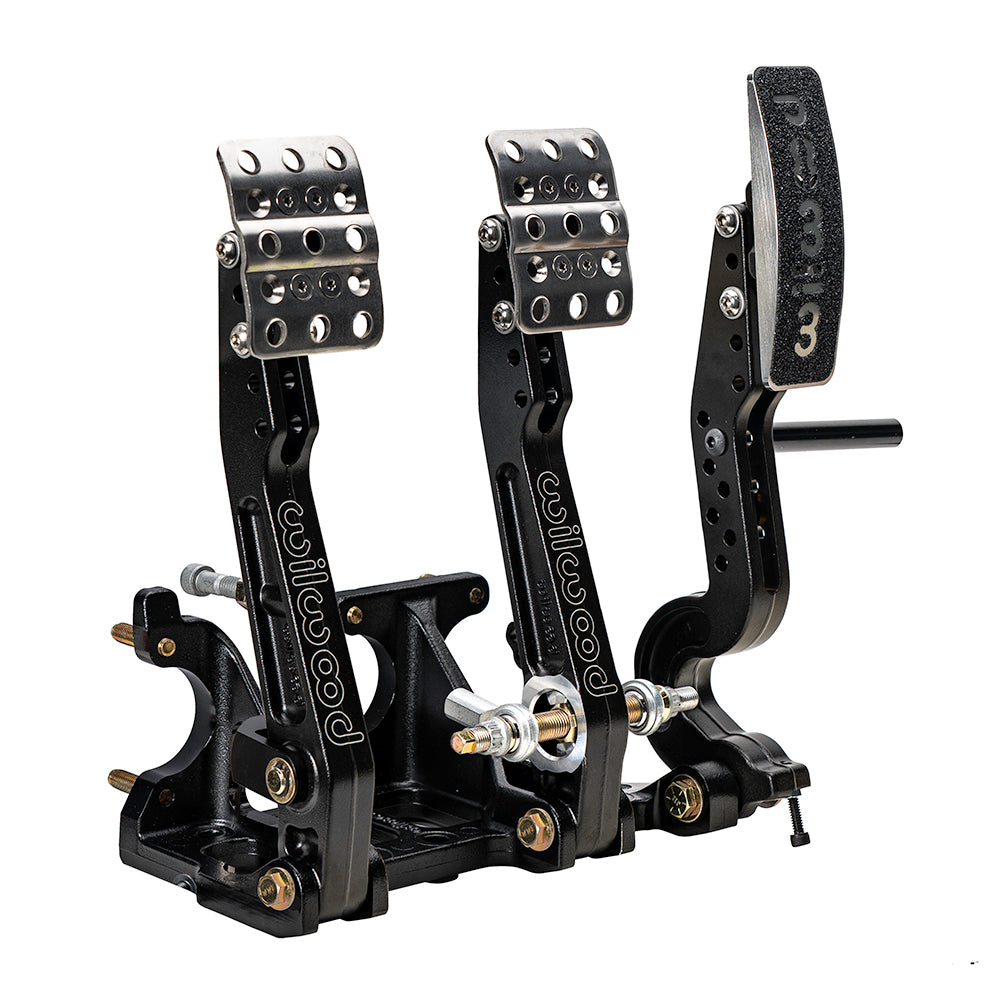

The Wilwood rear-engine Tru-Bar triple pedal assembly couples brake, clutch, and throttle operation in one floor-mounted frame. Its brake balance mechanism uses spherical Tru-Bar connections, and the included throttle pull rod serves a rear-engine installation rather than a front-engine bellcrank layout. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.
Technical Details
- Manufacturer part number: 340-16604
- Material: Aluminum
- Finish: Black E-coat
- Balance system: Tru-Bar
- Pedals: Brake, clutch, throttle
- Throttle connection: Rear-engine pull rod; no front-engine bellcrank
- Brake/clutch adjustment: 4.75, 5.25, or 5.75:1
- Master cylinders: Not included
- Weight: 7.300 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1487 · Wilwood product specifications
Fitment & Compatibility
Brake and clutch heads provide 4.75, 5.25, or 5.75:1 ratios. Allow for three separately purchased 2.25-inch vertical-flange master cylinders and verify the 3.75-5.75-inch pad-center adjustment against the footwell. Confirm pull-rod direction and clutch stroke.
For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
