Product details

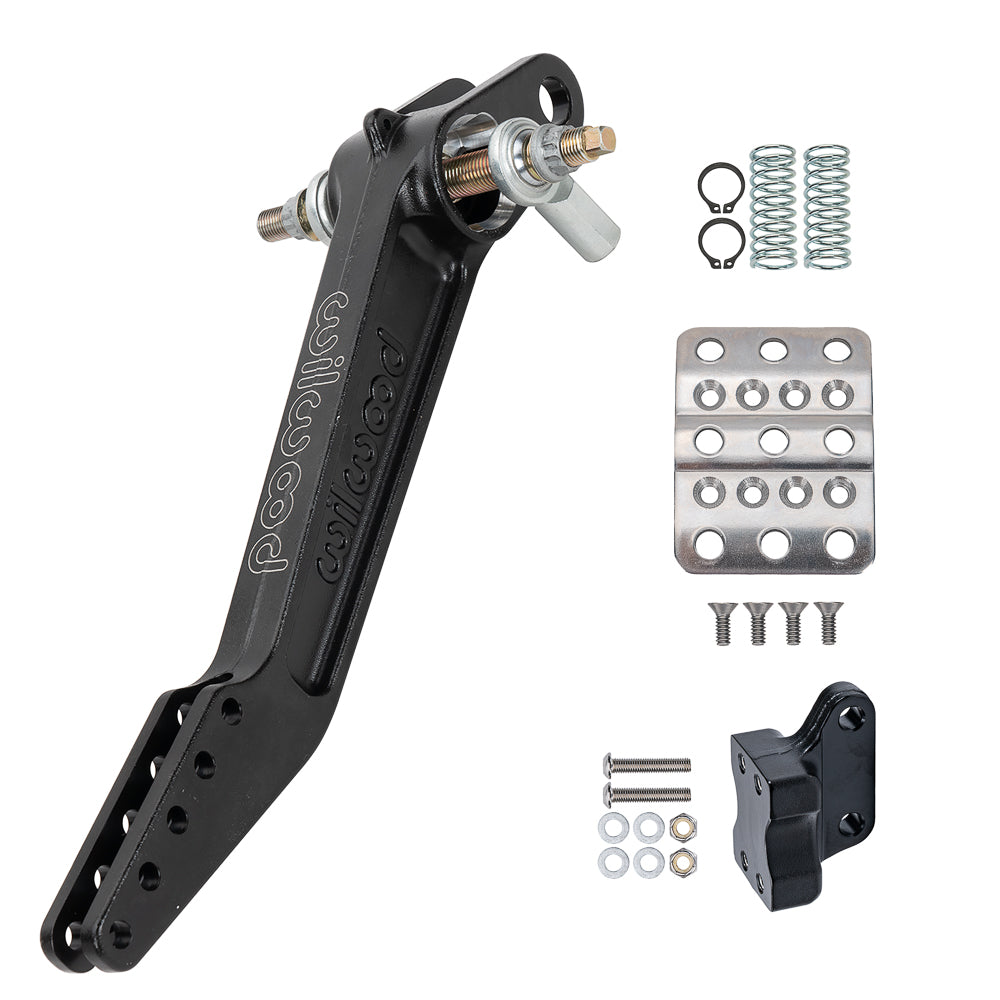

The Wilwood adjustable Tru-Bar retrofit updates selected forward-mounted brake pedals with a trunnion-based balance system. Its forged arm has three head positions across a 6.25:1 to 7:1 range, and conversion hardware is supplied for the brake side of the existing assembly. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-16413
- Material: Aluminum
- Finish: Black E-coat
- Leverage options: Three head positions spanning 6.25:1 to 7.00:1
- Balance arrangement: Tru-Bar
- Mounting direction: Forward swing
- Weight: 2.160 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
Compatible with Wilwood 340-1287, 340-13832, 340-15079, and 340-16379 assemblies. Verify the original base number and master-cylinder connections; this kit does not replace the entire pedal mounting assembly.
Need assistance identifying the correct configuration? PMB Performance draws on more than 20 years of experience; contact us with your system details and measurements.
