Product details

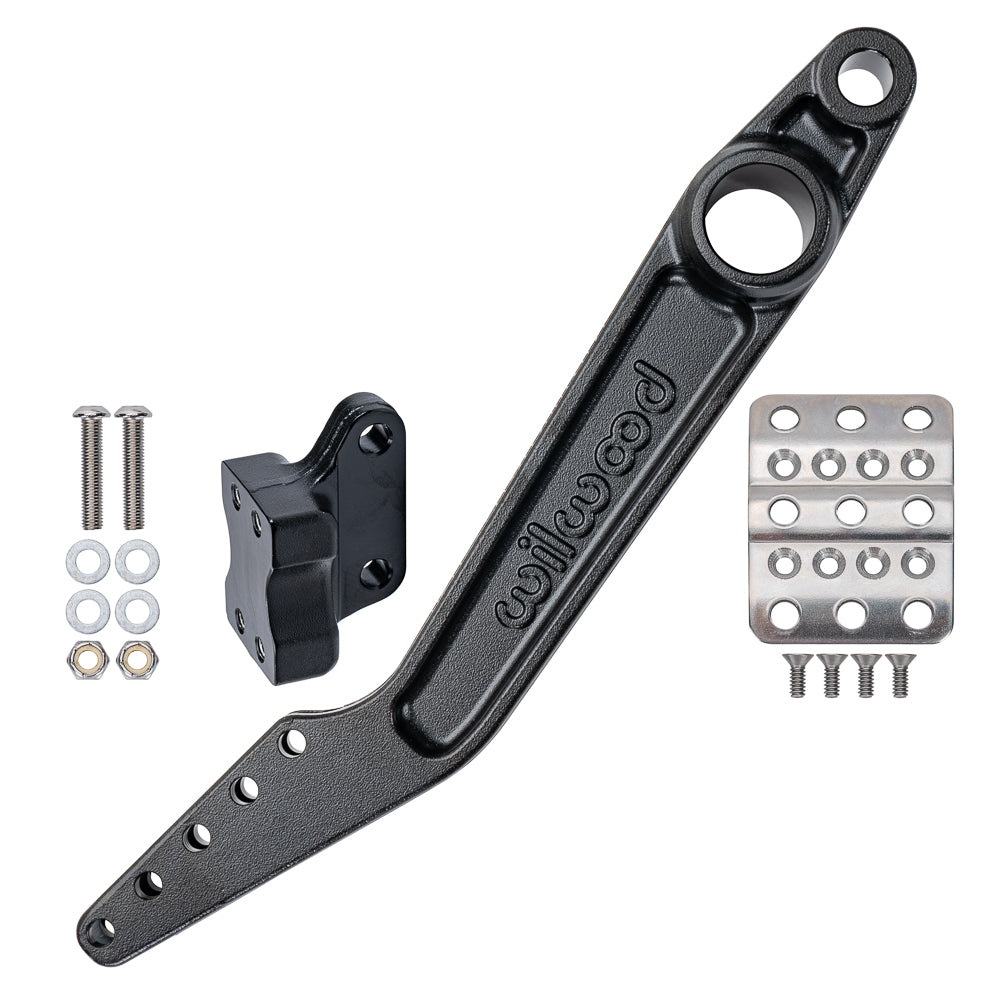

The Wilwood adjustable forward-mount brake pedal conversion renews the brake arm and standard balance-bar arrangement in specified older assemblies. Three vertical head positions provide leverage from 5.50:1 to 6.25:1, with clevis hardware supplied for the retrofit. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 340-16401
- Material: Aluminum
- Finish: Black E-coat
- Ratios: Three head positions spanning 5.50:1 to 6.25:1
- Balance system: Standard balance bar
- Mounting: Forward-swing retrofit
- Weight: 1.720 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Designed to convert Wilwood forward-mount assemblies 340-11295 and 340-3950. Retain the correct compatible base and check pushrod alignment throughout pedal movement. This is a retrofit kit rather than a complete brake-and-clutch pedal set.
With over 20 years of experience, PMB Performance can help check the details that matter before you order. Have the installed assembly and component specifications available.
