Product details

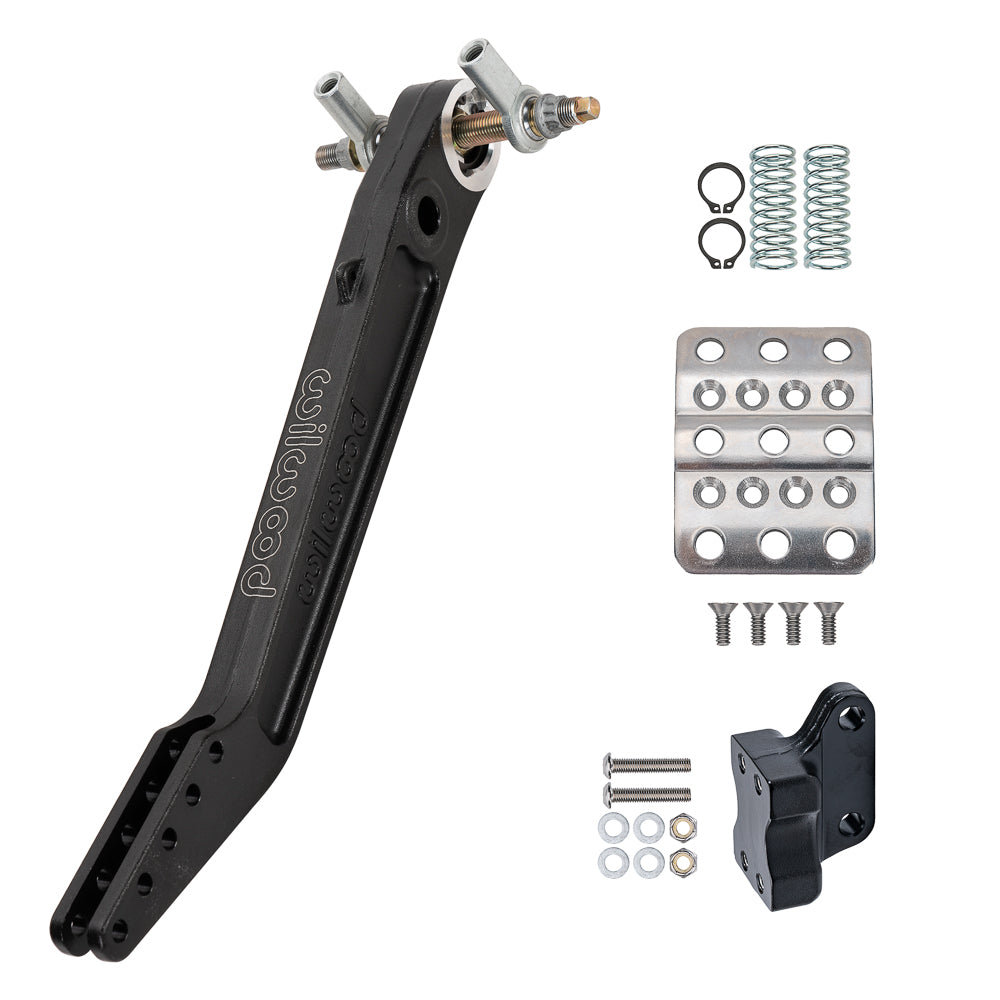

This Wilwood reverse-swing brake pedal retrofit replaces the pedal and trunnion hardware in selected existing assemblies with an adjustable Tru-Bar arrangement. Three pedal-head positions provide leverage from 5.50:1 to 6.25:1; the kit uses the existing compatible mounting base. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-16400
- Material: Aluminum
- Finish: Black E-coat
- Pedal ratios: Three head positions spanning 5.50:1 to 6.25:1
- Configuration: Reverse swing; Tru-Bar retrofit
- Included: Brake pedal, trunnion, clevis hardware
- Weight: 2.350 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
For Wilwood assemblies 340-11299, 340-12509, 340-13835, 340-13836, 340-13837, 340-15073, 340-15074, 340-15075, 340-15076, 340-15077, 340-3342, 340-4828, 340-5180, 340-5181, and 340-6451. Confirm the base, master-cylinder pushrods, and full-travel clearance before conversion.
