Product details
Wilwood combines a three-position brake head with a Tru-Bar trunnion in this floor-mount retrofit kit. It updates supported conventional or earlier Tru-Bar assemblies with adjustable leverage from 5.25:1 to 6:1 and includes the connection hardware for the conversion. For Wilwood Engineering's motorsport, street-performance, and specialized applications, component selection follows the requirements of the complete brake system. The company was founded by Bill Wood in 1977 and is based in Camarillo, California, where its business focuses on designing and manufacturing disc brake systems, calipers, rotors, master cylinders, valves, fittings, and lines.
Technical Details
- Manufacturer part number: 340-16398
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Compatible assemblies: 340-1285, 340-13831 and 340-15078

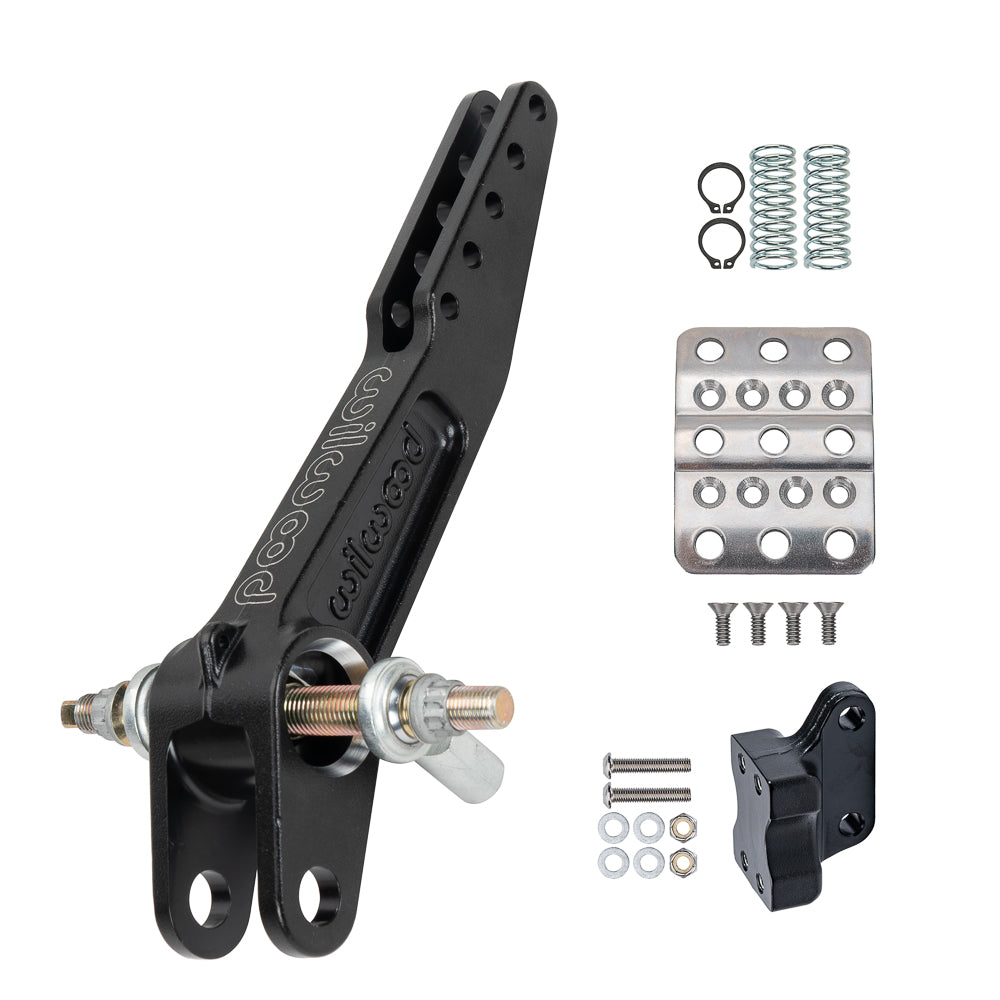

- Included: Adjustable brake arm, Tru-Bar trunnion and clevis conversion hardware
- Ratios: Three head positions spanning 5.25:1 to 6.00:1
- Weight: 1.980 lb
Wilwood technical instructions DS-1102 · Wilwood product specifications
Fitment & Compatibility
The kit is specified for assemblies 340-1285, 340-13831 and 340-15078. Retain only a compatible, serviceable base and verify the master-cylinder connections. It is not a complete floor pedal box, and cylinder bores remain a separate system choice.
Confirm the installation with PMB Performance when the existing configuration is unclear. We have more than 20 years of experience supporting careful parts selection and fitment checks.
