Product details

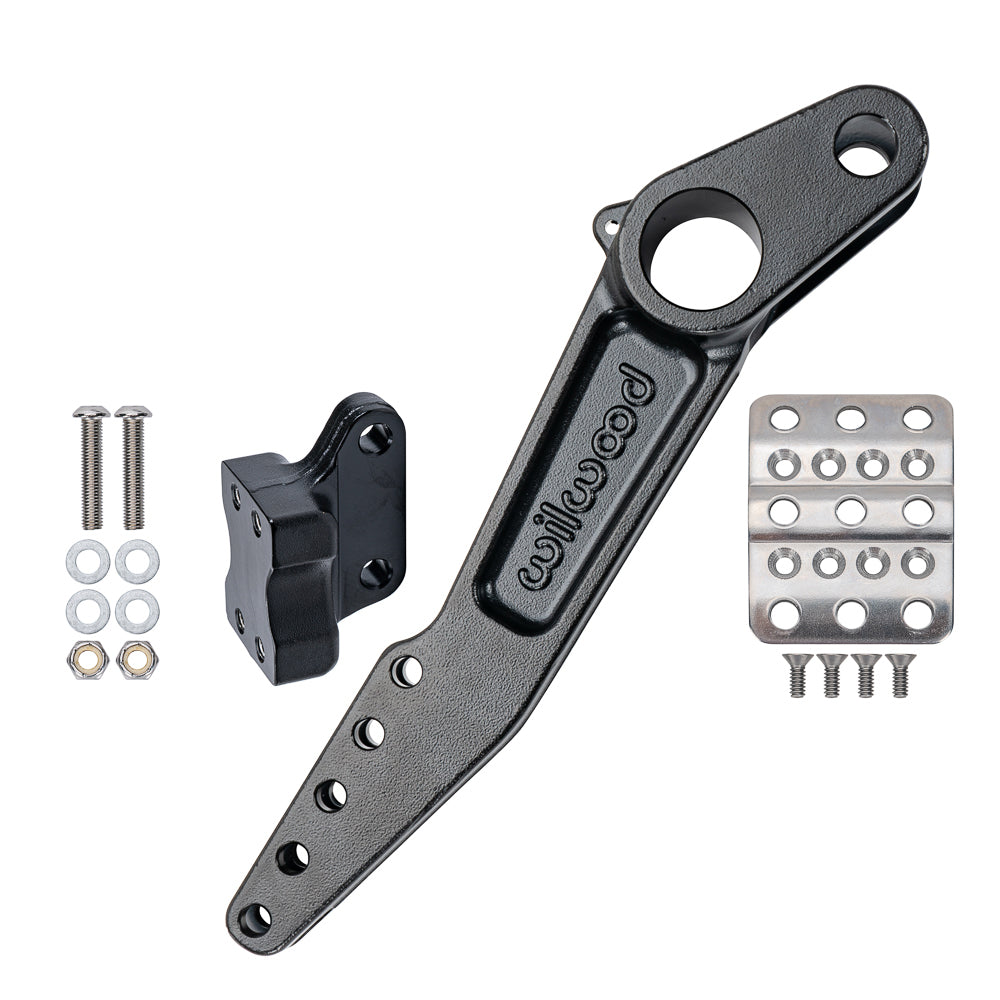

This Wilwood floor-pedal conversion replaces a fixed-ratio brake arm with an adjustable head and conventional balance bar. The replacement head has three positions from 5.25:1 to 6:1, and the supplied clevis hardware connects to the specified earlier assemblies. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California and designs and manufactures disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings, and brake lines form part of its range for motorsport, street-performance, and specialized installations; suitability depends on the full brake-system arrangement.
Technical Details
- Manufacturer part number: 340-16397
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Floor; Forward
- Compatible assemblies: 340-1285 and 340-13831
- Conversion contents: Adjustable brake arm, standard balance bar and clevis hardware
- Ratio choices: Three head positions spanning 5.25:1 to 6.00:1
- Weight: 1.560 lb
Wilwood technical instructions DS-252 · Wilwood product specifications
Fitment & Compatibility
Compatible base assemblies are 340-1285 and 340-13831. Verify the existing floor-mounted unit before ordering; this kit does not include a complete pedal base or master cylinders. Recheck pedal travel and brake bias after conversion.
Discuss the existing setup with PMB Performance before ordering when the application is uncertain. We bring over 20 years of experience to parts selection and fitment support.
