Product details

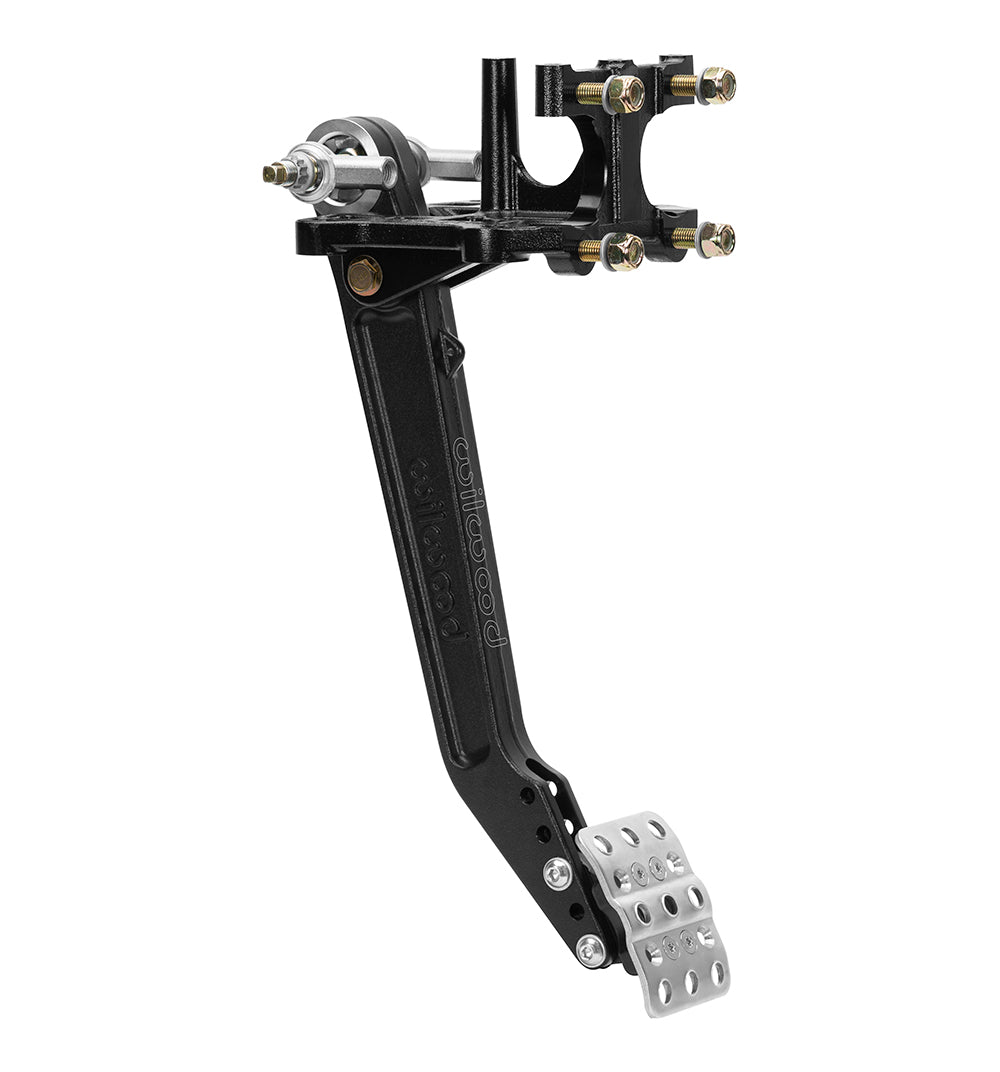

A fixed trunnion and spherical pushrod joints give this Wilwood reverse brake assembly its Tru-Bar bias mechanism. The pedal head has three positions across a 5.50:1 to 6.25:1 leverage range, while the foot pad can move 1/2 inch to either side. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977. Its range covers brake calipers, rotors, master cylinders, valves, fittings, and lines, which are selected according to the needs of the complete system.
Technical Details
- Manufacturer part number: 340-16388
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio settings: Three head positions spanning 5.50:1 to 6.25:1
- Bias mechanism: Tru-Bar; fixed trunnion and spherical rod ends
- Weight: 3.830 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1474 · Wilwood product specifications
Fitment & Compatibility
Provide two compatible Wilwood 2.25-inch vertical-flange single-outlet master cylinders, ordered separately. Check the reverse-mount envelope and full arm sweep beneath the cowl. Final bias and bore selection must match the front and rear braking hardware.
