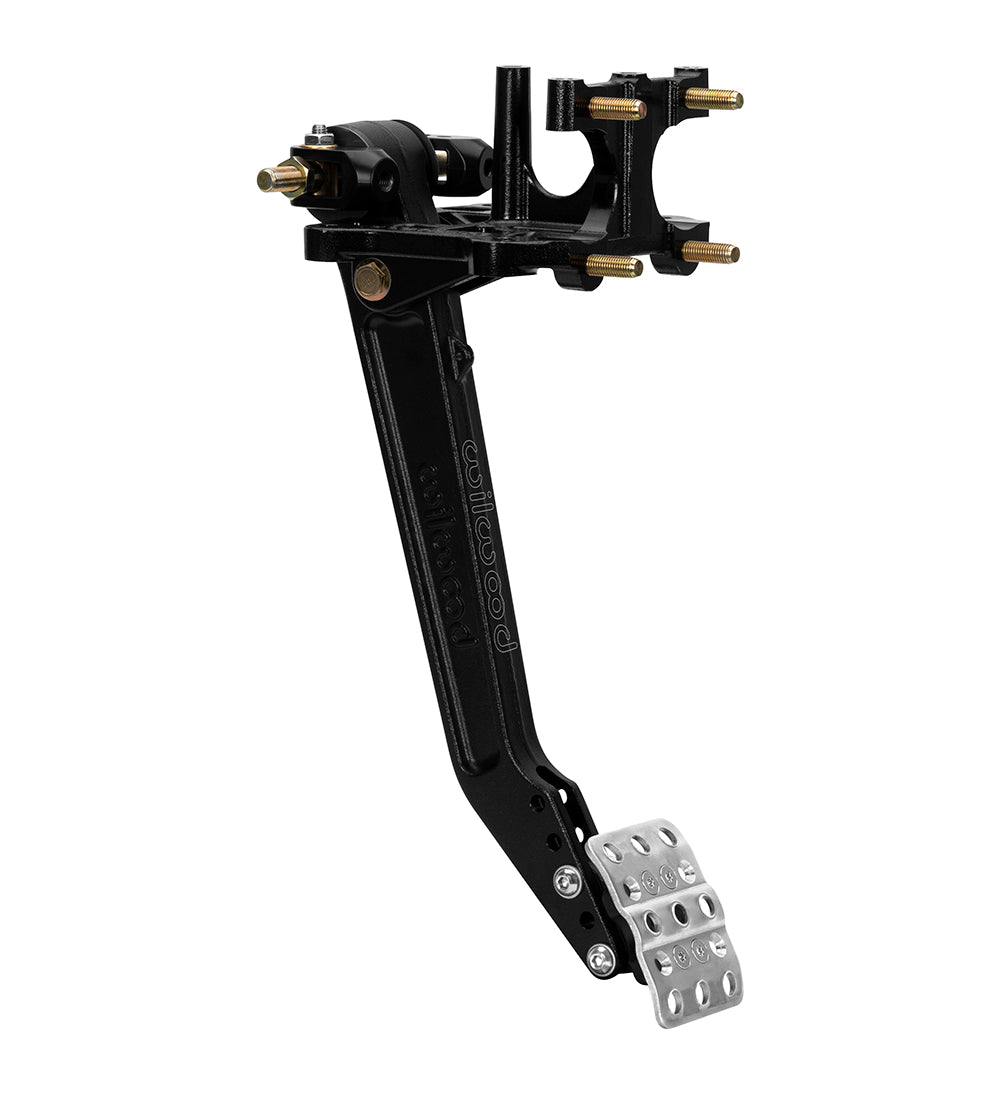

Wilwood Reverse Brake Pedal with Adjustable Head and Detent Balance Bar, 5.50–6.25:1

This Wilwood reverse-hanging brake pedal offers an adjustable head and a conventional detent balance bar for two master cylinders. The head selects one of three leverage positions from 5.50:1 to 6.25:1; lateral foot-pad adjustment provides additional clearance. Part of Wilwood Engineering's disc brake component range, this item should be matched to its intended brake-system configuration. Founded in 1977 by Bill Wood, the Camarillo, California company designs and manufactures calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 340-16387
• Material: Aluminum
• Finish: Black E-coat
• Mount Type: Swing; Reverse
• Ratio settings: Three head positions spanning 5.50:1 to 6.25:1
• Brake linkage: Standard detent balance bar
• Pad adjustment: 1/2 in left or right
• Weight: 3.930 lb

Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1473 · Wilwood product specifications

Fitment & Compatibility

Check the reverse-facing cylinder envelope and use two suitable 2.25-inch vertical-flange single-outlet masters. Cylinders are not included. Confirm pedal reach, pushrod alignment and complete return at the selected head position before adjusting brake bias.

For a modified installation, the actual hardware matters as much as the vehicle identity. PMB Performance has over 20 years of experience helping customers work through those fitment details.
