Product details

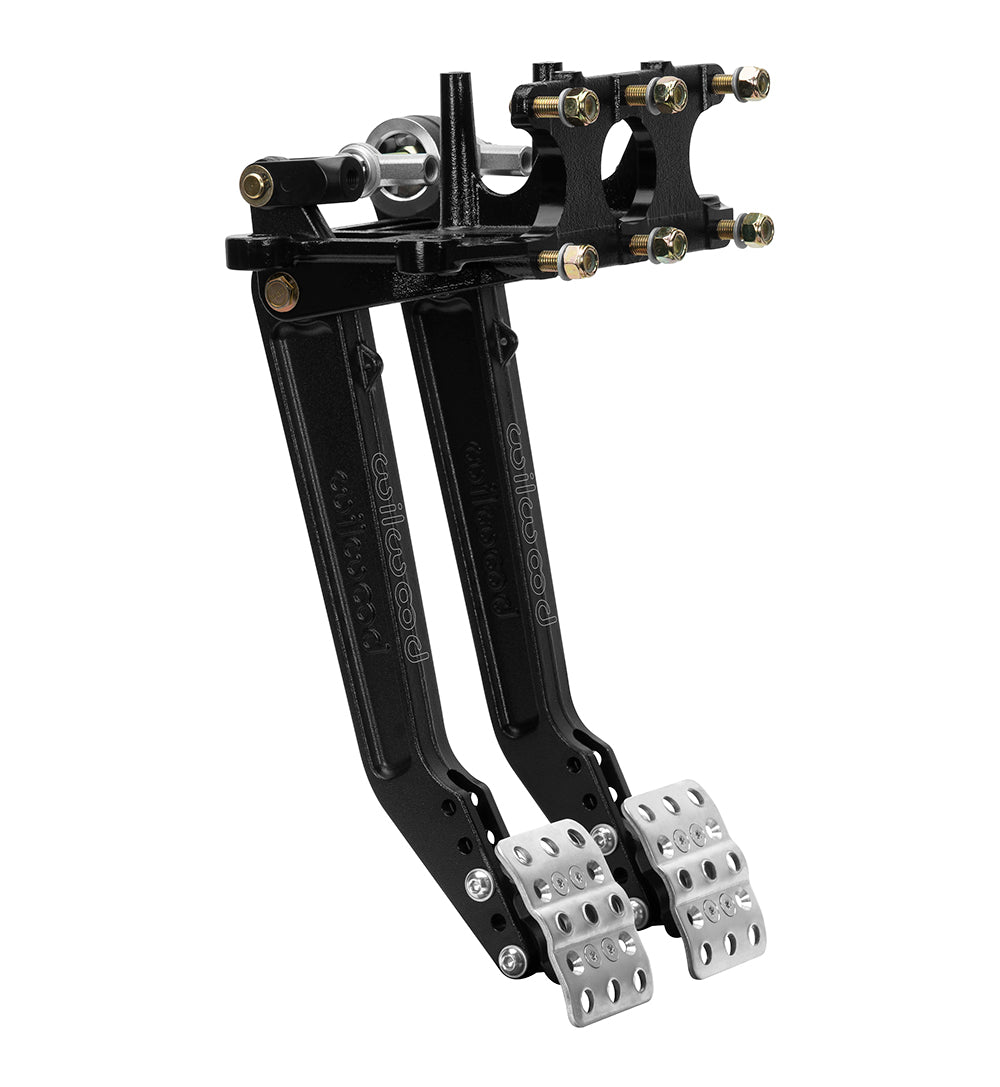

Adjustable heads and the Tru-Bar brake linkage distinguish this Wilwood reverse-swing brake and clutch set. Each pedal has three head positions from 5.50:1 to 6.25:1, while spherical rod ends connect the brake balance mechanism to its two master cylinders. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. Wilwood designs and manufactures disc brake systems, from calipers and brake rotors to master cylinders, valves, fittings, and brake lines. Its motorsport, street-performance, and specialized components are chosen to suit the complete braking installation.
Technical Details
- Manufacturer part number: 340-16386
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Head ratio settings: Three head positions spanning 5.50:1 to 6.25:1
- Pad centers: 3-5 in
- Bias linkage: Fixed-trunnion Tru-Bar with spherical rod ends
- Weight: 5.920 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1472 · Wilwood product specifications
Fitment & Compatibility
The reverse-facing assembly accepts three compatible Wilwood 2.25-inch vertical-flange masters, supplied separately. Set pad spacing within the 3-5-inch range and confirm cylinder service access. Brake bias must be set for the actual calipers and cylinder bores, not pedal ratio alone.
