Product details

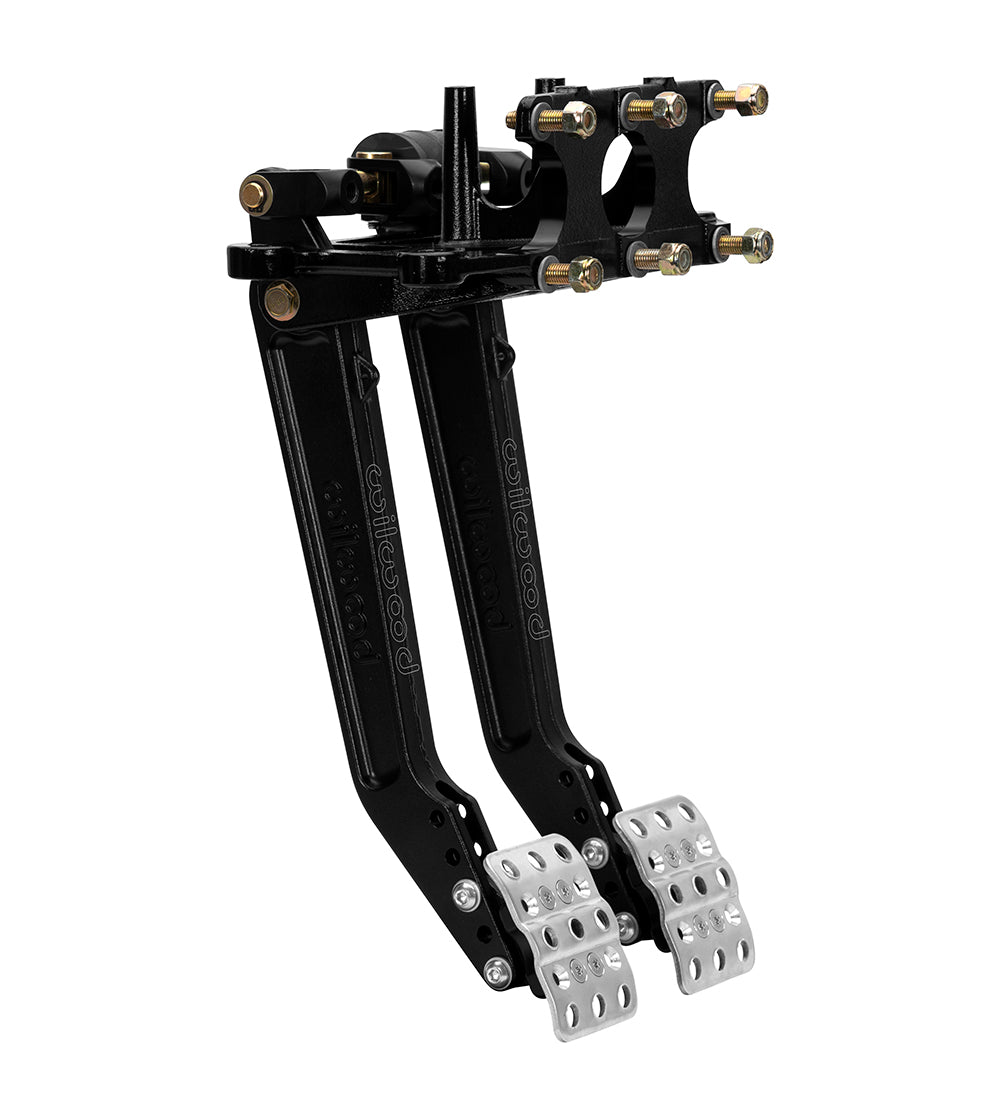

A reverse-facing cylinder layout lets this Wilwood hanging assembly locate its hydraulics inside the firewall. The brake and clutch heads offer three ratios across a 5.50:1 to 6.25:1 range, and a standard detent bar adjusts brake bias. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. The company designs and manufactures disc brakes, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized uses. Individual parts must be matched to the rest of the brake system.
Technical Details
- Manufacturer part number: 340-16385
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Reverse
- Ratio positions: Three head positions spanning 5.50:1 to 6.25:1
- Foot-pad spacing: 3-5 in on center
- Brake force adjustment: Standard detent balance bar
- Weight: 6.000 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1471 · Wilwood product specifications
Fitment & Compatibility
Check space around the cowl for three separate 2.25-inch vertical-flange masters and reservoir connections. The pads can be set 3-5 inches apart. Select brake and clutch cylinder bores to match their respective circuits, then verify full travel.
