Product details

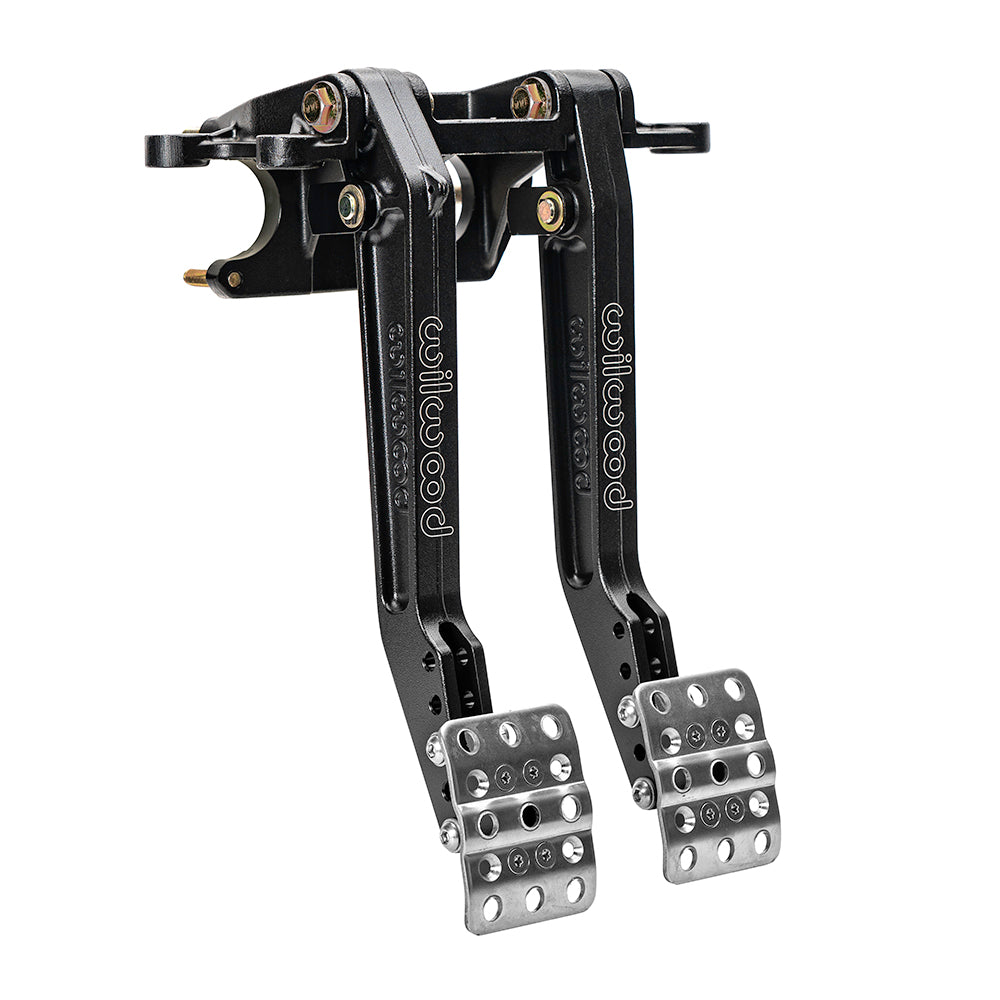

This Wilwood forward-swing pedal pair drives one tandem brake master cylinder and a separate clutch master. Both pedal heads have three positions across a 6.25:1 to 7:1 range; the single-pushrod brake linkage operates without a balance bar. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Its calipers, brake rotors, master cylinders, valves, fittings, and brake lines serve motorsport, street-performance, and specialized applications, with each component selected for the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-16384
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; forward
- Ratios: Three head positions spanning 6.25:1 to 7.00:1
- Brake master flange: 3.25 in horizontal; tandem
- Clutch master flange: 2.25 in vertical
- Balance bar: None
- Weight: 5.430 lb
Wilwood technical instructions DS-1470 · Wilwood product specifications
Fitment & Compatibility
Brake mounting requires a Wilwood 3.25-inch horizontal-flange tandem master, while the clutch uses a 2.25-inch vertical-flange single-outlet cylinder. Both are separate. Confirm through-firewall access and 3-5-inch foot-pad spacing.
Need assistance identifying the correct configuration? PMB Performance draws on more than 20 years of experience; contact us with your system details and measurements.
