Product details

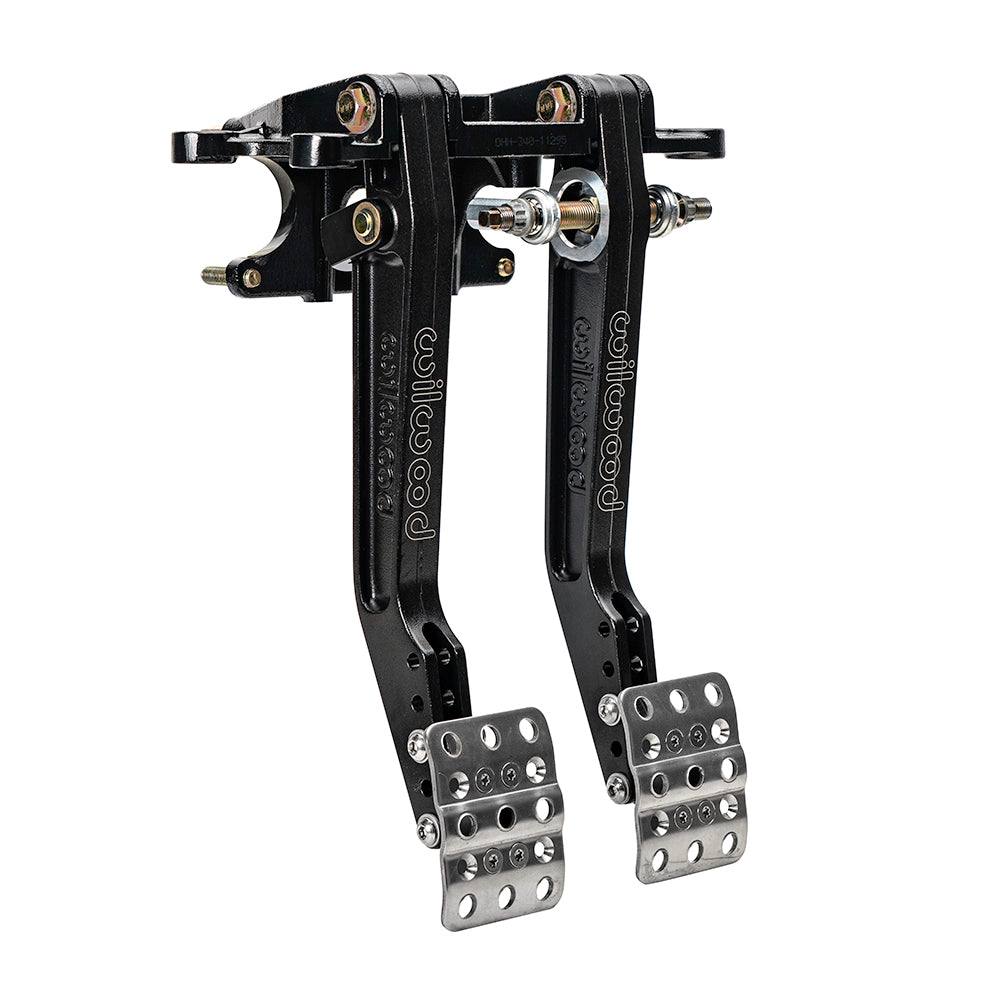

Wilwood equips this adjustable forward pedal pair with spherical pushrod joints and a fixed Tru-Bar trunnion on the brake arm. The brake and clutch heads each have three positions spanning 5.50:1 to 6.25:1, with lateral pad spacing adjustable from 3 to 5 inches. Wilwood's range extends from calipers and brake rotors to master cylinders, valves, fittings, and brake lines, all selected to meet the requirements of a complete brake system. Founded by Bill Wood in 1977, Wilwood Engineering is based in Camarillo, California and designs and manufactures disc brake systems for motorsport, street-performance, and specialized uses.
Technical Details
- Manufacturer part number: 340-16383
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratios: Three head positions spanning 5.50:1 to 6.25:1
- Foot-pad centers: Adjustable 3-5 in
- Brake bias: Tru-Bar fixed trunnion with spherical connections
- Weight: 5.650 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1469 · Wilwood product specifications
Fitment & Compatibility
Use three compatible 2.25-inch vertical-flange single-outlet masters: two brake and one clutch. They are not included. Confirm firewall mounting and reach to both pads, and set each cylinder's stroke and pushrod alignment at the selected ratios.
