Product details

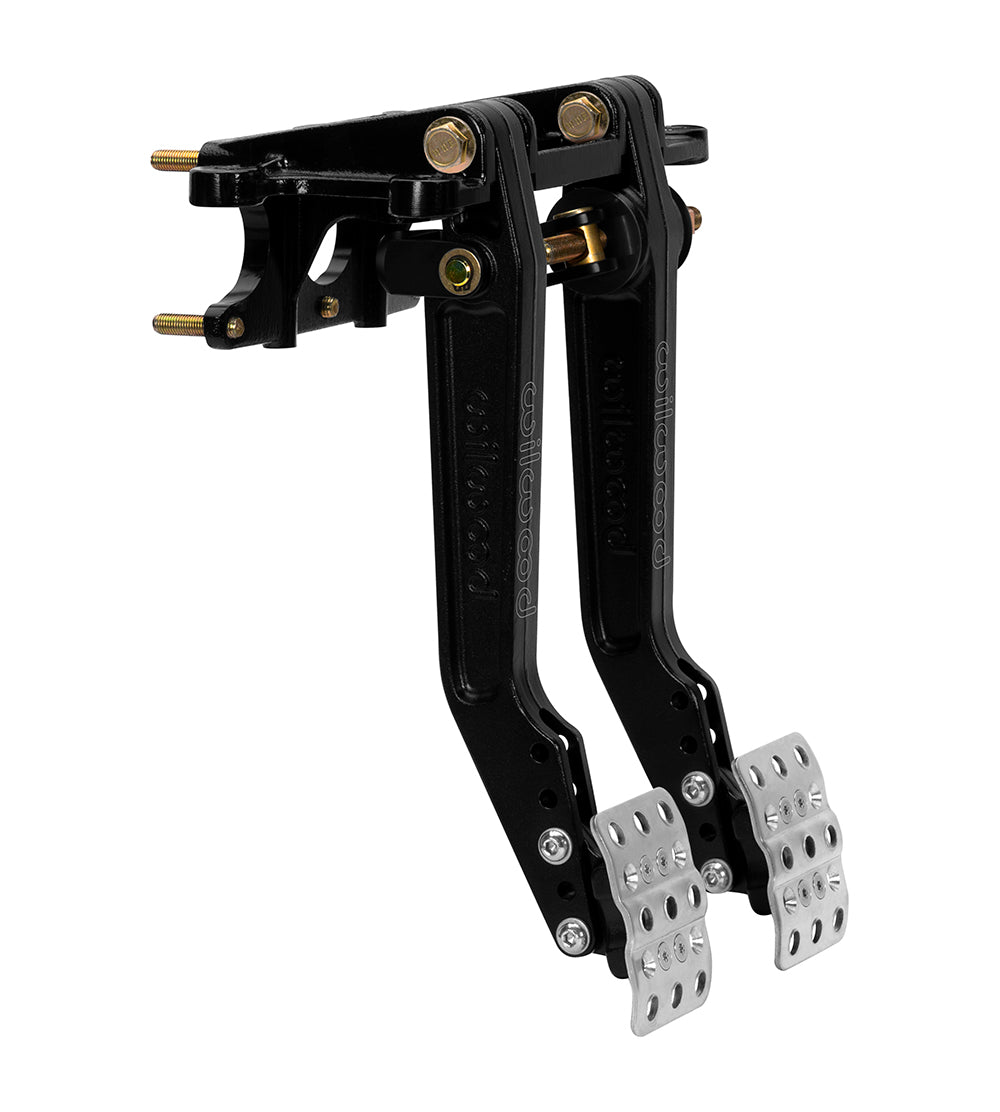

Foot pads spaced 3–5 inches apart identify this Wilwood adjustable forward brake and clutch assembly. Both heads adjust from 5.50:1 to 6.25:1 through three positions, and the brake side uses a conventional detent balance bar. The complete brake installation determines which Wilwood component is appropriate. Wilwood Engineering designs and manufactures disc brake systems, calipers, rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Bill Wood founded the company in 1977, and it is based in Camarillo, California.
Technical Details
- Manufacturer part number: 340-16382
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio choices: Three head positions spanning 5.50:1 to 6.25:1
- Pad spacing: 3-5 in on center
- Brake linkage: Conventional detent balance bar
- Weight: 5.620 lb
Wilwood technical instructions DS-252 · Wilwood technical instructions DS-1468 · Wilwood product specifications
Fitment & Compatibility
Allow room through the firewall for two brake masters and a clutch master, each with a compatible 2.25-inch vertical flange. All three cylinders are separate. Check pedal separation and hydraulic stroke before locking the chosen head positions.
