Product details

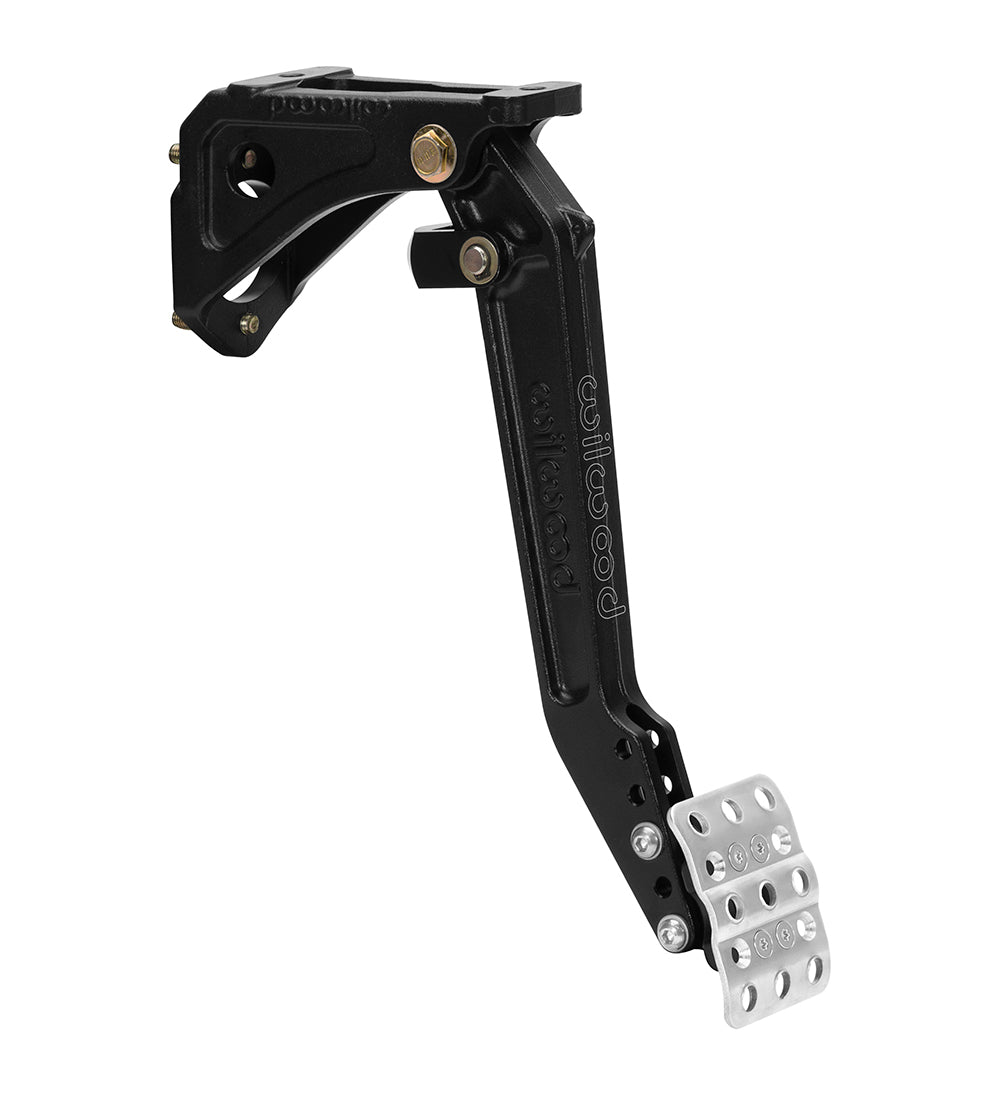

Wilwood's adjustable hanging clutch pedal operates one hydraulic master cylinder from the forward side of the firewall. Three vertical head positions change leverage, and a laterally adjustable pad lets the foot contact point be positioned without adding a brake balance bar. Established in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake design and manufacturing work covers calipers, brake rotors, master cylinders, valves, fittings, and brake lines. Across motorsport, street-performance, and specialized applications, those components are specified as parts of a complete braking system rather than chosen in isolation.
Technical Details
- Manufacturer part number: 340-16381
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Head positions: Three head positions spanning 6.25:1 to 7.00:1
- Cylinder provision: One vertical-flange master; sold separately
- Balance bar: None
- Weight: 2.660 lb
Wilwood technical instructions DS-1467 · Wilwood product specifications
Fitment & Compatibility
For a forward-swing hydraulic clutch installation with one Wilwood 2.25-inch vertical-flange master cylinder, ordered separately. Check overhead support, pushrod alignment and release stroke at the selected head position from 6.25:1 to 7:1. DS-1467 identifies this clutch assembly.
