Product details

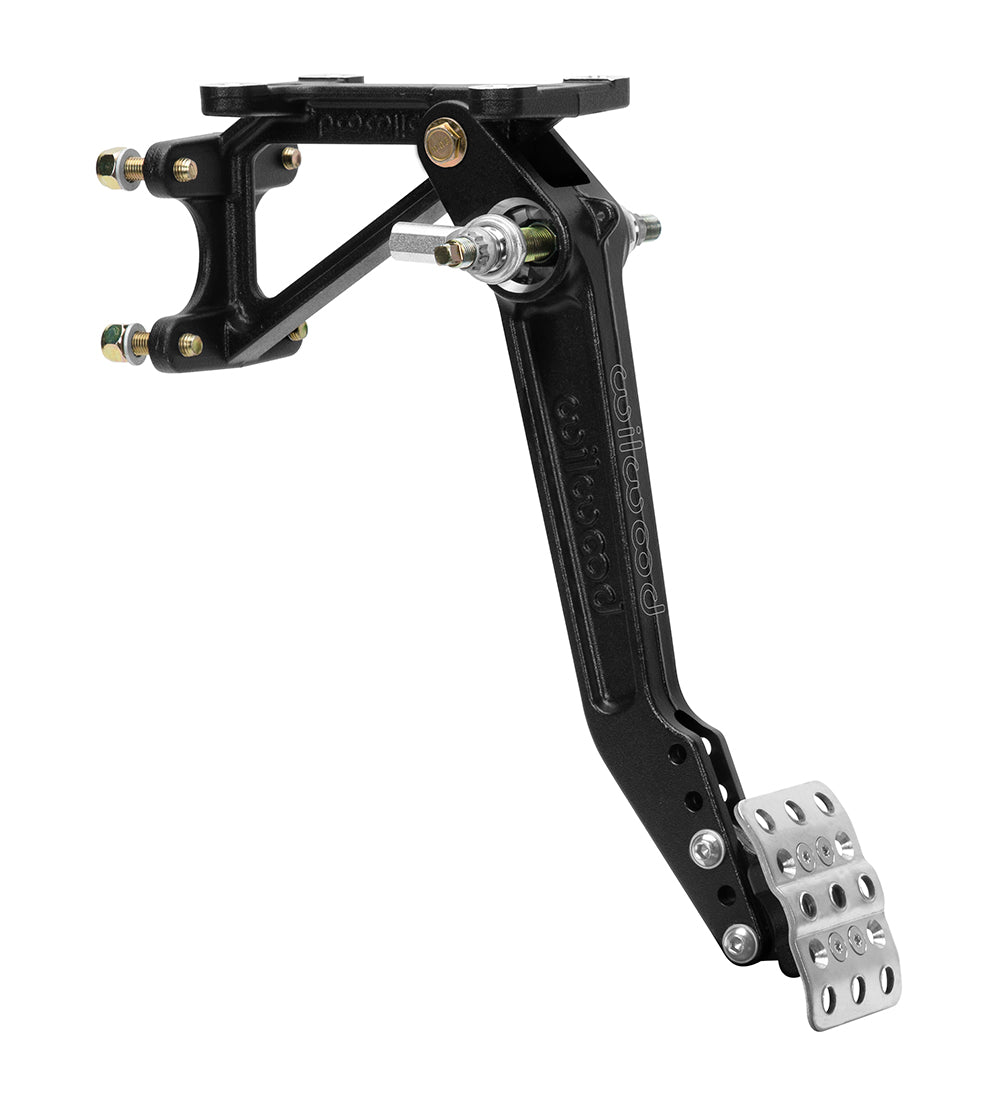

A trunnion-mounted Tru-Bar linkage and adjustable brake head are combined in this Wilwood forward-swing assembly. Select one of three leverage positions within the 6.25:1 to 7:1 range while retaining spherical rod-end connections to the two brake master cylinders. This component comes from Wilwood Engineering, the disc brake manufacturer established by Bill Wood in 1977 and based in Camarillo, California. Its design and manufacturing range includes calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications. Selection depends on the requirements of the complete brake system.
Technical Details
- Manufacturer part number: 340-16380
- Material: Aluminum
- Finish: Black E-coat
- Mount Type: Swing; Forward
- Ratio settings: Three head positions spanning 6.25:1 to 7.00:1
- Bias mechanism: Tru-Bar; fixed trunnion and spherical rod ends
- Weight: 3.150 lb
Wilwood technical instructions DS-1102 · Wilwood technical instructions DS-1466 · Wilwood product specifications
Fitment & Compatibility
Check firewall spacing and use two Wilwood 2.25-inch vertical-flange single-outlet masters, ordered by the required bore and style. The foot pad moves 1/2 inch either side of center. Verify pushrod alignment and cylinder travel with the final pedal-head setting.
